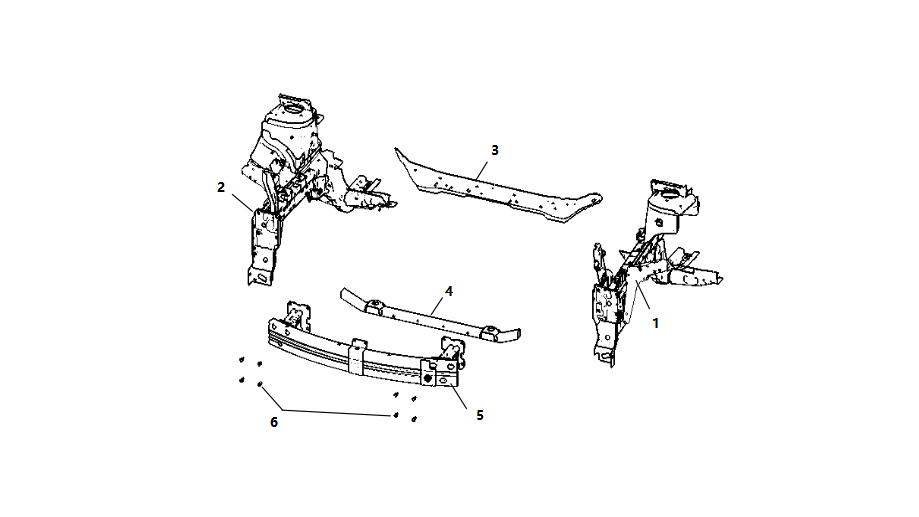

F1T1 - Front cabin frame assembly
F1T1 - Front cabin frame assembly
SX5KCTQ15T65D05GR24C > Body-in-white system > White body assembly > White body assembly > Front compartment assembly > Front compartment assembly > Front cabin subassembly one > Front cabin assembly 2 > Front cabin frame assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | left front longitudinalbeam and left front wheel casing assembly | F1T1-SX7H-2801030 | 1 |
| 2 | Right front side member and right front wheel cover assembly | F1T1-SX7H-2801040 | 1 |
| 3 | assembly for outer plate of lower beam of front panel | F1T1-SX5-2801020 | 1 |
| 4 | water tank lower beam assembly | F1T1-SX7H-8400530 | 1 |
| 5 | Front anti-collision beam assembly | F1T1-SX5-8400230B | 1 |
| 6 | Hexagon flange bolts-enlarged series | F1T1-Q1860820F38 | 1 |
| Right front side member and right front wheel cover assembly | F1T1-SX7H-2801040B | 1 | |
| left front longitudinalbeam and left front wheel casing assembly | F1T1-SX7H-2801030A | 1 |
