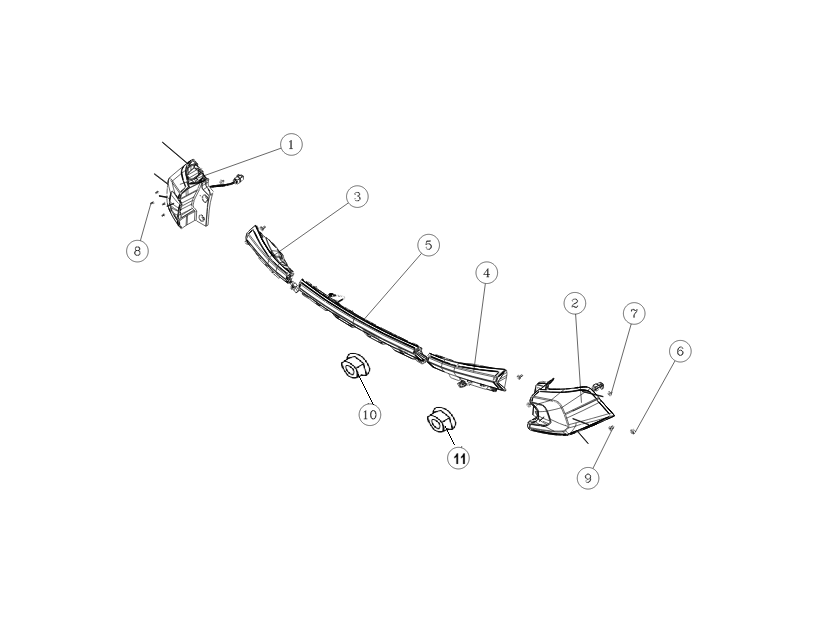

F1T1 - Combined rear light module
F1T1 - Combined rear light module
SX5KCTQ15T65D05GR24C > Electrical system > Combined rear light module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | left rear combination light assembly A | F1T1-SX3A-4133010A | 1 |
| 2 | right real combination light assembly A | F1T1-SX3A-4133020A | 1 |
| 3 | Rear left combination light assembly B | F1T1-SX3A-4133030A2 | 1 |
| 4 | Right rear combination lamp assembly B | F1T1-SX3A-4133040A2 | 1 |
| 5 | Rear combination lamp assembly C | F1T1-SX3A-4133150A1 | 1 |
| 6 | Locating clip of rear combined lamps | F1T1-BS3-4133311 | 2 |
| 7 | short locating pin sleeve assembly | F1T1-BM3-4133012 | 2 |
| 8 | Hexagonal flower-shaped pan head screw and flat washer assembly | F1T1-LQ1400620F38 | 4 |
| 9 | lower buckle | F1T1-BM3-4133013 | 2 |
| 10 | Hexagon flanged nut | F1T1-Q32006F38 | 10 |
| 11 | Hexagonal cap nut | F1T1-LQ39A06F38A | 2 |
