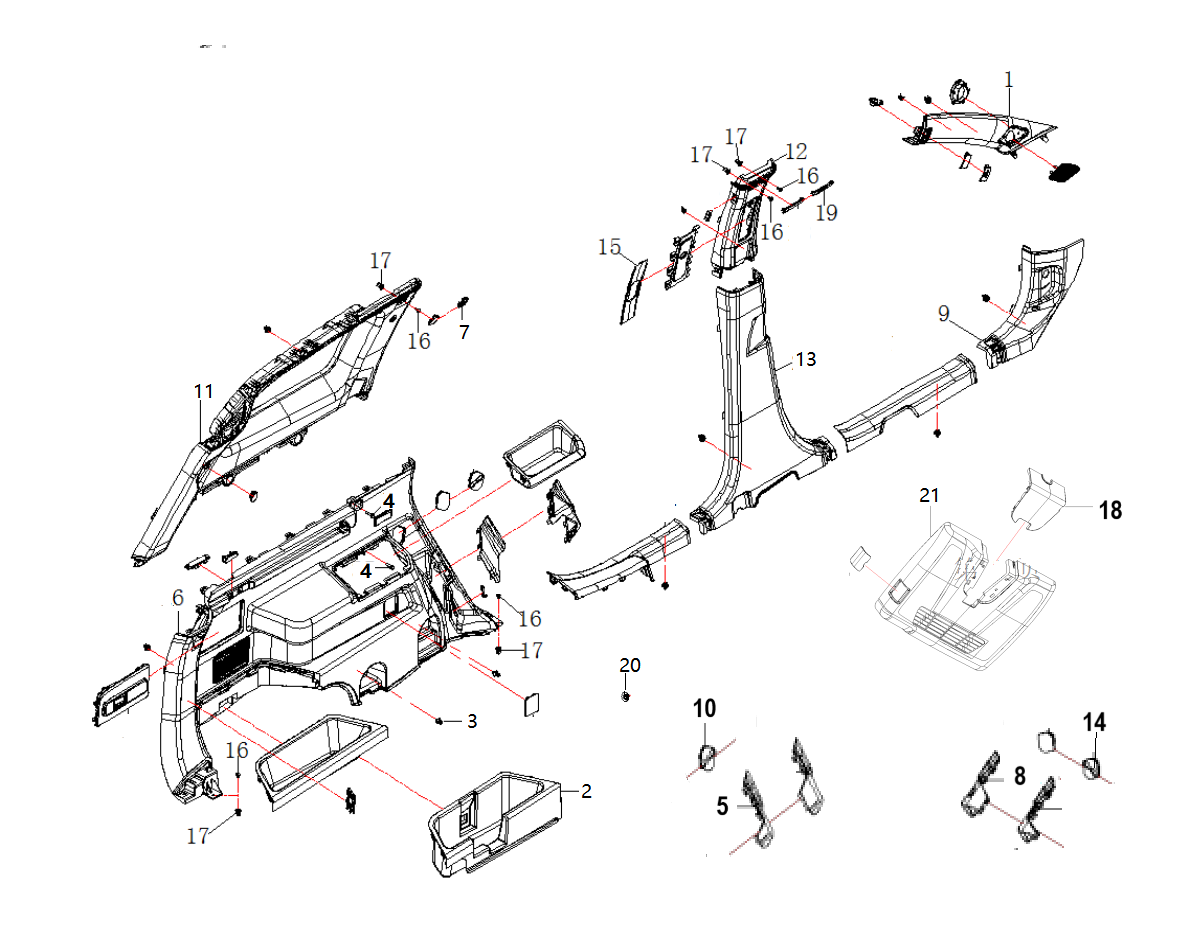

F1T1 - Side guard panel module

SX5KCTQ15T65D05GR24C > Trim system > Side guard panel module

Rep.	Designation	Reference	Qte/vehicule
1	Left A-pillar upper guard plate assembly	F1T1-SX5F-5402110A-Y1	1
1	Right A-pillar upper guard plate assembly	F1T1-SX5F-5402120A-Y1	1
2	left c pillar rear storage box	F1T1-SX5F-5402337B-Y1	1
2	right c pillar rear storage box	F1T1-SX5F-5402338B-Y1	1
3	Snap fastener	F1T1-BL611	4
4	Cross recessed pan head screws	F1T1-Q2140610F38	2
5	left C pillar seat cover	F1T1-SX5F-5402347-Y1	1
6	Left C pillar lower guard board assembly	F1T1-SX5F-5402330A-Y1	1
6	Right C-pillar lower guard plate assembly	F1T1-SX5F-5402340A-Y1	1
7	Left C pillar upper guard cover (with inscription）	F1T1-SX5-5402313B	1
7	Plug cover of the upper panel of right C pillar (with lettering)	F1T1-SX5-5402314B	1
8	right C Pillar seat cover	F1T1-SX5F-5402348-Y1	1
9	Lower panel assembly of left A pillar	F1T1-SX5F-5402150B-Y1	1
9	Right A-pillar lower guard plate assembly	F1T1-SX5F-5402160-Y1	1
10	Left C-pillar seat lock hook cover plate	F1T1-SX5F-5402341A-Y1	1
11	Left C pillar upper guard assy	F1T1-SX5F-5402310-Y1	1
11	Right C pillar upper guard assy	F1T1-SX5F-5402320-Y1	1
12	Upper panel assembly of right B pillar	F1T1-SX5-5402220B	1
12	upper panel assembly of left B pillar	F1T1-SX5-5402210B	1
13	Left B-pillar lower guard plate assembly	F1T1-SX5F-5402230-Y1	1
13	Right B-pillar lower guard plate assembly	F1T1-SX5F-5402240-Y1	1
14	Right C-pillar seat lock hook cover	F1T1-SX5F-5402342A-Y1	1
15	Height adjuster transition sliding plate	F1T1-SX5-5402216	2
16	Cross recessed cup head tapping screw with large head	F1T1-Q2734816F38	8
17	Square plastic screw holder	F1T1-BL338	8
18	Cover plate cover	F1T1-SX7-5402192-Y2	1
19	Left B-pillar upper guard cover (with lettering)	F1T1-SX5-5402217B	1
19	Right B-pillar upper protective plate cover (with lettering)	F1T1-SX5-5402218B	1
20	Plastic nut	F1T1-B-5512312	1
21	Cover of interior mirror	F1T1-SX7-5402191-Y2	1
