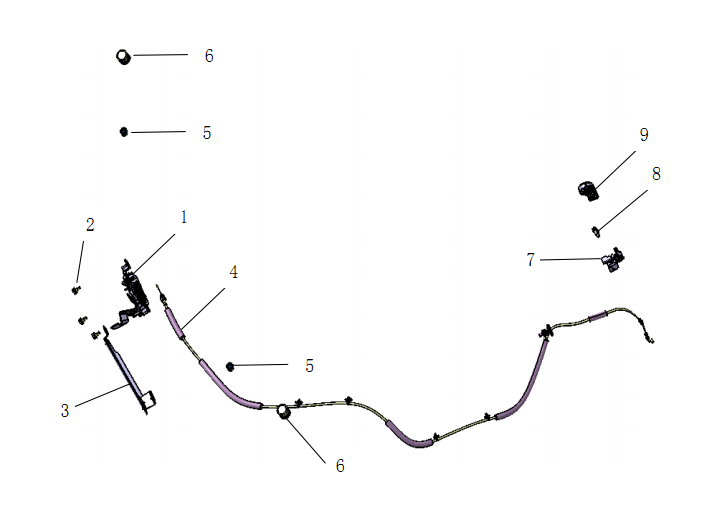

F1T1 - Engine hood lock and open module

SX5KCTQ15T65D05GR24C > Engine system > Engine hood lock and open module

Rep.	Designation	Reference	Qte/vehicule
1	Hood lock assembly	F1T1-BM3-8402100B	1
2	Hexagon bolt, spring washer, flat washer assembly	F1T1-Q1460616F38	2
3	cable baffle for engine hood lock	F1T1-BS3-8402060A	1
4	Opening cable in hood lock	F1T1-SX5-8402630	1
4	Opening cable in hood lock	F1T1-SX5-8402630	2
5	Small buffer block	F1T1-BS3-8402410	2
6	Front cover of the hood	F1T1-DM5L-8402044	2
7	Handle mounting base assembly	F1T1-DM5L-8402212	1
8	Hexagon bolt, spring washer, flat washer assembly	F1T1-Q1460816F38	4
9	Opening handle in Engine hood	F1T1-DM5L-8402210	1
