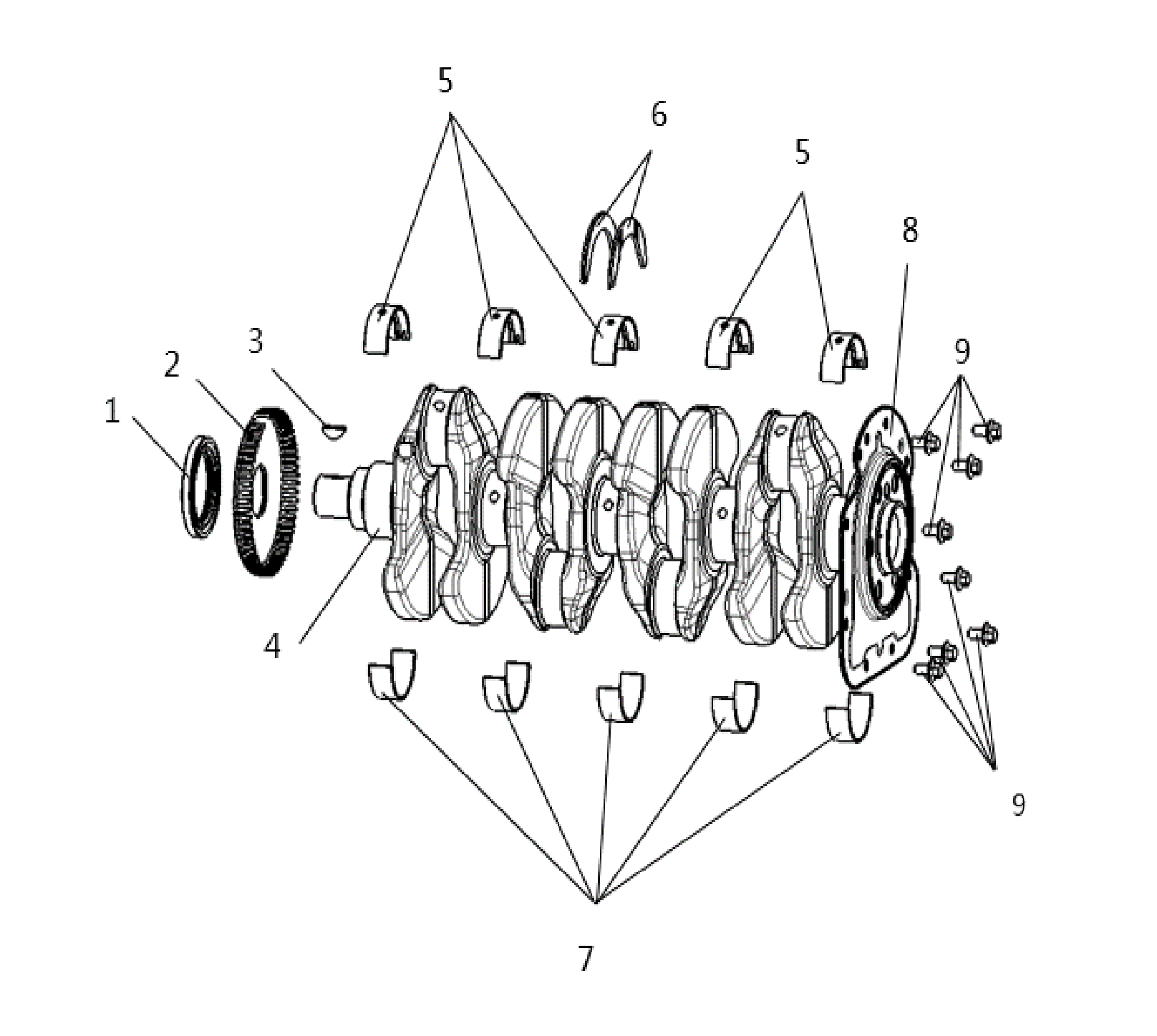

F1T1 - Crankshaft system
F1T1 - Crankshaft system
SX5KCTQ15T65D05GR24C > engine > Engine assembly module > Engine assembly > Crankshaft system
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Crankshaft front oil seal | F1T1-C0101-1005171 | 1 |
| 2 | Ratation speed | F1T1-C0101-1005179 | 1 |
| 3 | Ordinary semicircle key | F1T1-Q5500516 | 1 |
| 4 | Crankshaft | F1T1-C0101-1005173 | 1 |
| 4 | Crankshaft | F1T1-C0101-1005173T | 1 |
| 5 | Spindle on the main shaft | F1T1-C0101-1005176T-5 | 5 |
| 5 | Spindle on the main shaft | F1T1-C0101-1005176T-1 | 5 |
| 5 | Spindle on the main shaft | F1T1-C0101-1005176T-3 | 5 |
| 5 | Spindle on the main shaft | F1T1-C0101-1005176T-4 | 5 |
| 5 | Spindle on the main shaft | F1T1-C0101-1005176T-2 | 5 |
| 6 | Crankshaft thrust plate | F1T1-C0101-1005175T | 2 |
| 7 | Spindle bottom tile | F1T1-C0101-1005177T-4 | 5 |
| 7 | Spindle bottom tile | F1T1-C0101-1005177T-1 | 5 |
| 7 | Spindle bottom tile | F1T1-C0101-1005177T-5 | 5 |
| 7 | Spindle bottom tile | F1T1-C0101-1005177T-3 | 5 |
| 7 | Spindle bottom tile | F1T1-C0101-1005177T-2 | 5 |
| 8 | Crankshaft rear oil seal assembly | F1T1-C0101-1005172 | 1 |
| 9 | Hexagon flange bolt | F1T1-Q1840612F36 | 8 |
