• F1F2 - DASHBOARD MODULE
1 1

F1F2 - DASHBOARD MODULE

F1F2 - DASHBOARD MODULE

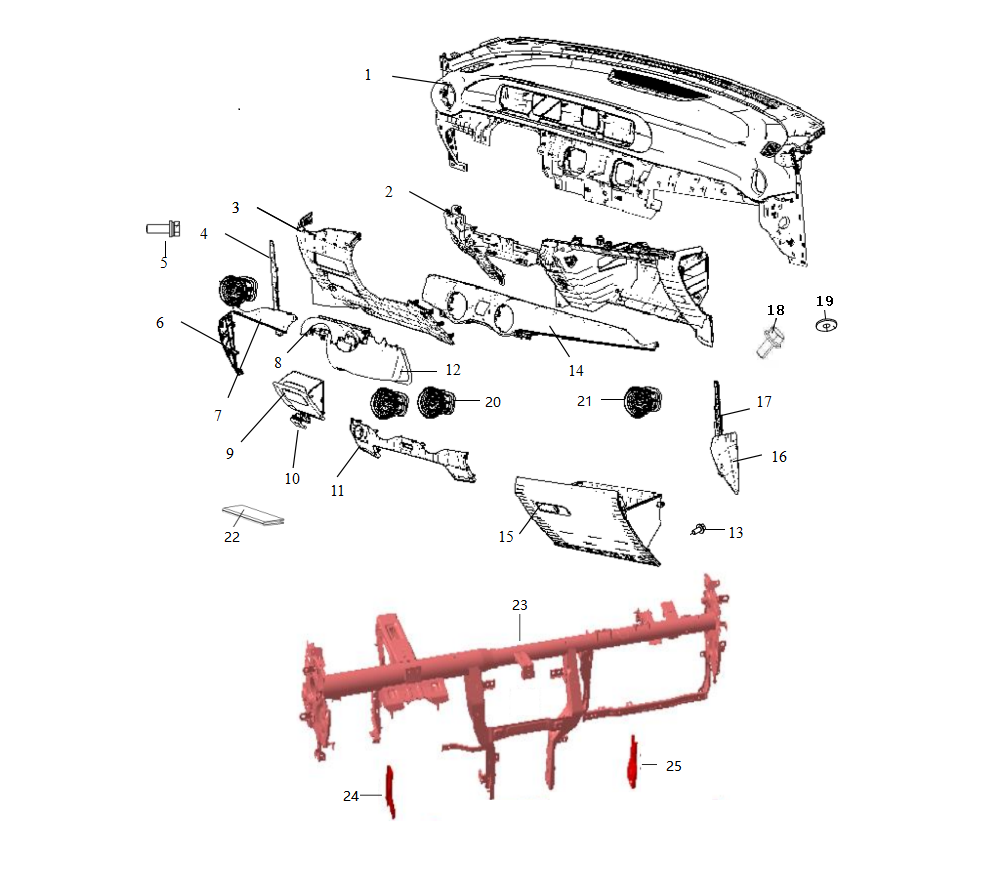

SX5GREEVA15D65C05GZ25C > Instrument panel system > Dashboard module

Rep. Designation Reference Qte/vehicule
1 Upper instrument panel body assembly F1F2-SX5G-5306100BS-Y1 1
2 Body assembly under instrument panel F1F2-SX5G-5306120A1-Y3 1
3 Left lower panel assembly F1F2-SX5G-5306800A-Y3 1
4 Left A pillar middle guard board F1F2-SX5G-5306135-Y3 1
5 Hexagon head bolt, spring washer and large flat washer assembly F1F2-Q146B0845F38LD 2
6 Left end cover plate assembly F1F2-SX5G-5306130-Y3 1
7 Left decorative panel assembly F1F2-SX5G-5306310BS-Y7 1
8 Steering column upper shield assembly F1F2-SX5G-5306180B-Y1 1
9 Maintenance cover plate assembly F1F2-SX5G-5306810-Y3 1
10 Engine hood opening handle assembly F1F2-SX5G-5306600-Y1 1
11 Middle lower decorative panel assembly F1F2-SX5G-5306150-Y3 1
12 Steering column lower shield F1F2-SX5G-5306702B-Y1 1
13 Hexagon flange bolt F1F2-Q1840616F38 18
14 Right trim plate assembly F1F2-SX5G-5306420BS-Y7 1
15 Glove box assy F1F2-SX5G-5306900-Y3 1
16 Right end cover plate assembly F1F2-SX5G-5306140-Y3 1
17 Right A pillar middle guard board F1F2-SX5G-5306145-Y3 1
18 Hexagon flange bolts-enlarged series F1F2-Q18608110F38 1
19 Large washer F1F2-Q40208F36 1
20 Hexagon head bolt, spring washer and large flat washer assembly F1F2-Q146B0825F38LD 2
21 Side air outlet assembly F1F2-SX5G-5306820-Y5 1
22 Front non-woven fabric F1F2-BS3-5306134B 3
23 Tube beam assembly F1F2-SX5G-5306500BS 1
24 left bracket assembly F1F2-SX5G-5306530 1
25 right bracket assembly F1F2-SX5G-5306540 1
26 Hexagon head bolt, spring washer and large flat washer assembly F1F2-Q146B0880F38LD 2
27 Combination instrument cover F1F2-SX5G-5306250B-Y1 1
28 Central control screen backplane B F1F2-SX5G-5306240B-Y1 1
29 Sun sensor plug F1F2-SX5G-5306112 1
CHF 1,782.00
CHF 1,782.00
Sale Ausverkauft
Number

Hersteller :

Forthing

Artikel Nr. :

F1F2-SX5G-5306100BS-Y1

Vollständige Details anzeigen
