• F1F2 - REAR BUMPER ASSEMBLY
1 1

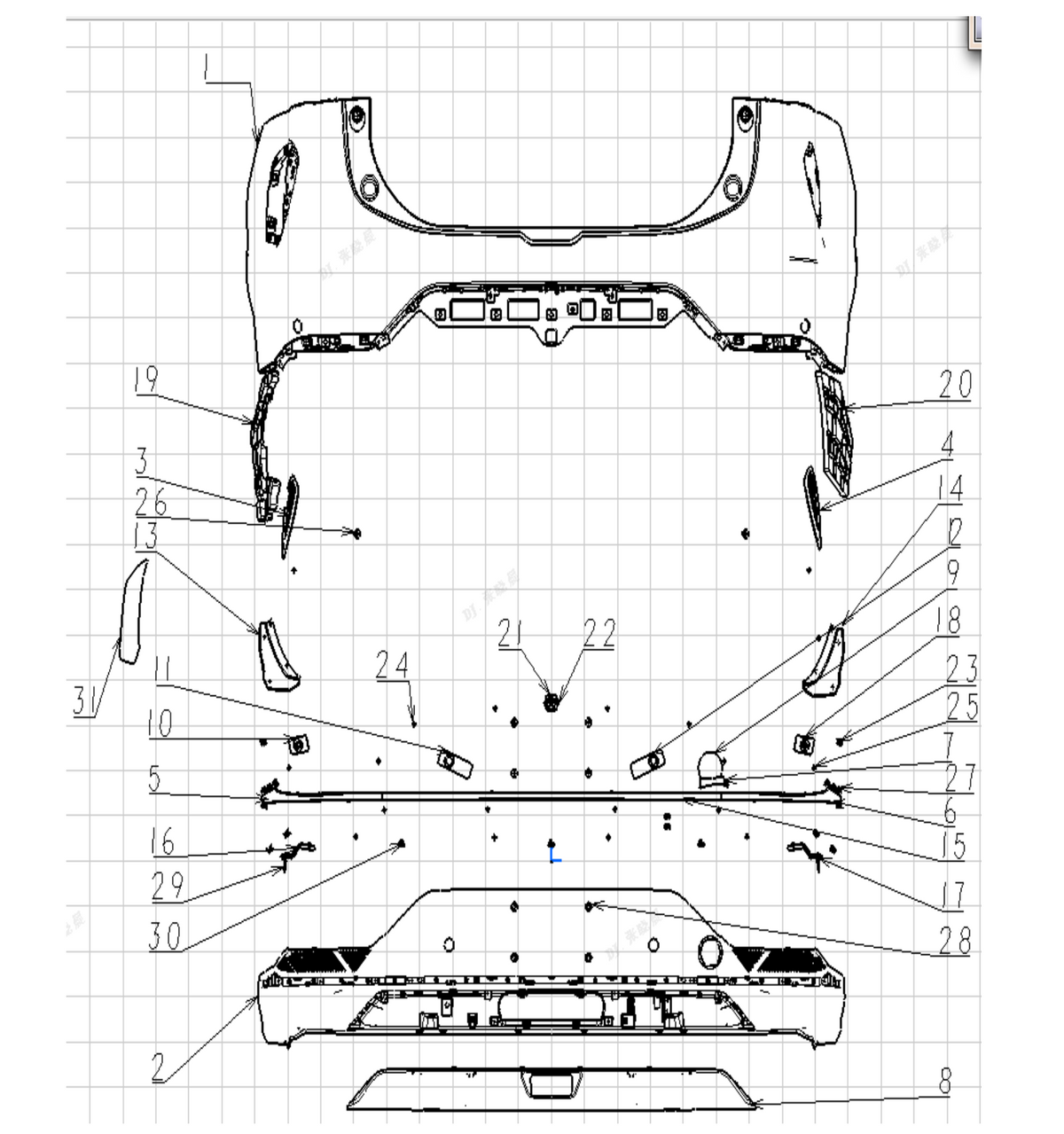

F1F2 - REAR BUMPER ASSEMBLY

F1F2 - REAR BUMPER ASSEMBLY

SX5GREEVA15D65C05GZ25C > Trim system > Rear bumper module > Rear bumper assembly

Rep. Designation Reference Qte/vehicule
1 Rear bumper upper body F1F2-SX5G-2804811 1
2 Rear protection lower body F1F2-SX5G-2804812 1
3 Back insurance trim plate left F1F2-SX5G-2804813 1
4 Back insurance trim plate right F1F2-SX5G-2804814 1
5 Lower decorative strip of back insurance 1 F1F2-SX5G-2804815B 1
6 Lower decorative strip of back insurance 2 F1F2-SX5G-2804816B 1
7 Rear guard lower trim four F1F2-SX5G-2804829B 1
8 lower trim panel of Back insurance F1F2-SX5G-2804818 1
9 Decoupling cover plate F1F2-SX5G-2804819 1
10 Rear Left R2 Radar Support F1F2-SX5G-2804822 1
11 Left center R3 radar mount F1F2-SX5G-2804823 1
12 Right center R4 radar support F1F2-SX5G-2804824 1
13 Left flanged back cover F1F2-SX5G-2804827 1
14 Right flanging cover plate of back insurance F1F2-SX5G-2804828 1
15 Rear guard lower trim four F1F2-SX5G-2804829 1
16 Left wheel arch support F1F2-SX5G-2804831 1
17 Right wheel arch support F1F2-SX5G-2804832 1
18 Left Rear R5 Radar Bracket 2 F1F2-SX5G-2804833 1
19 Rear-left reinforcement bracket F1F2-SX5G-2804835 1
20 Rear bumper right reinforcing support F1F2-SX5G-2804836 1
21 Digital HD Camera Bracket 1 F1F2-SX5G-2804553 1
22 Digital HD Camera Bracket 2 F1F2-SX5G-2804554 1
23 Reed clip F1F2-MX148103 22
24 Cross recessed raised countersunk head tapping screw-type C F1F2-ST2764213 2
25 Cross recessed cup head tapping screw with large head F1F2-Q2734213F38 30
26 Waterproof gasket F1F2-SX5G-2804531B 2
27 Cross recessed cup head tapping screw with large head F1F2-Q2734816F38 8
28 License plate nut F1F2-SX5G-2804571 4
29 Countersunk head rivet F1F2-Q4601010 4
30 Reed nut F1F2-84MA-04022 3
31 Rear charging port outer cover plate F1F2-SX5G-2804951 1
