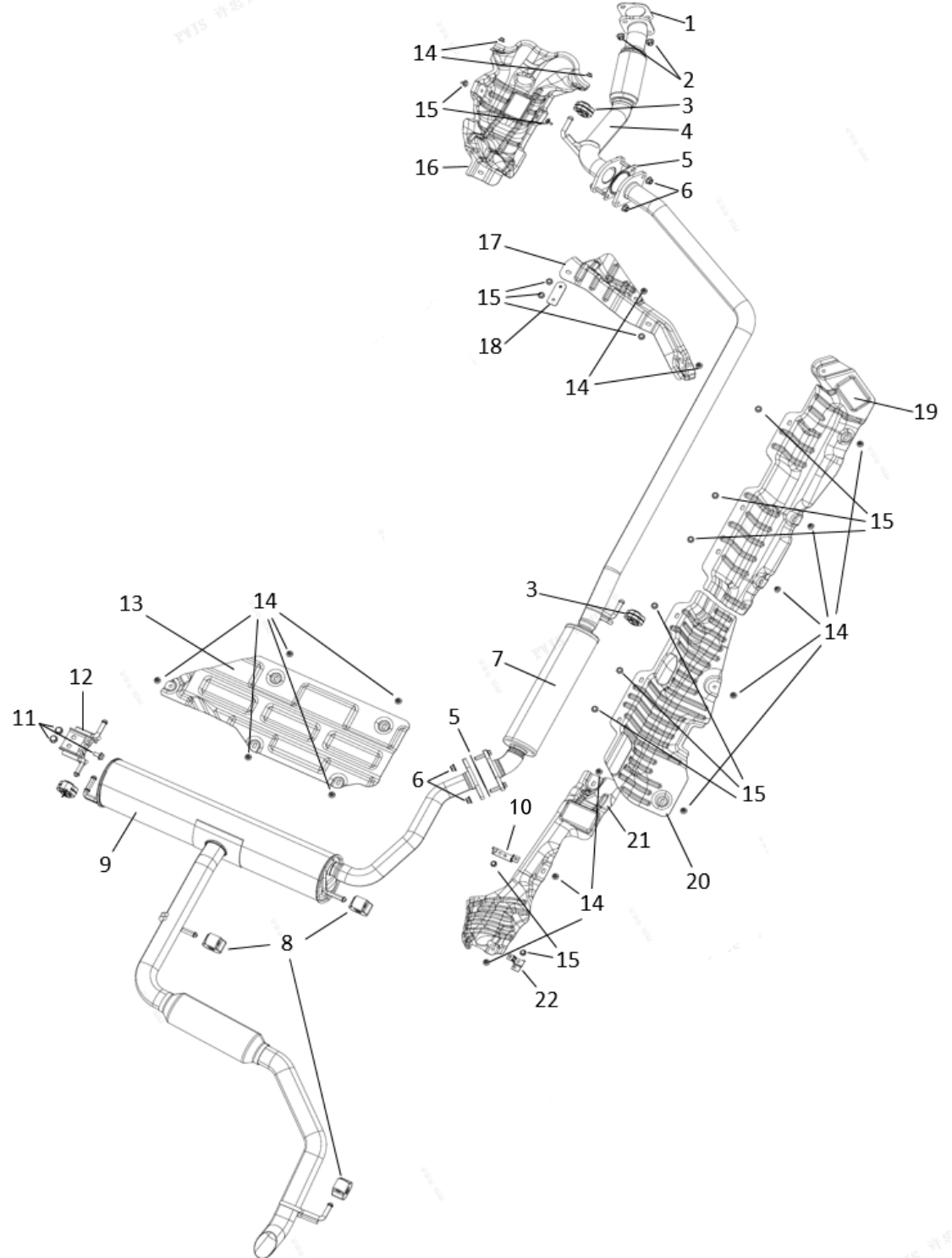

F1N1 - EXHAUST MUFFLER MODULE

M6A15D65B17SR24 > Engine system > Exhaust Muffler Module

Rep.	Designation	Reference	Qte/vehicule
2	All-metal hexagon flanged lock nut	F1N1-Q33010F36	2
3	Hanging cushion	F1N1-SX5-1202010	3
4	Front exhaust pipe assembly	F1N1-M6-1203040S	1
5	Flange Fittings 1	F1N1-SX5-1204011	2
6	All-metal hexagon flanged lock nut	F1N1-Q33110F38	6
7	Front exhaust muffler assembly	F1N1-M6-1201070S1	1
9	Rear exhaust muffler assembly	F1N1-M6-1201080S1	1
10	Exhaust heat shield support	F1N1-M6-1206070S	1
11	Hexagon flange bolt	F1N1-Q1841020F38	3
12	Exhaust lifting hook support	F1N1-M6-1206010S	1
13	Heat shield of rear elimination cylinder	F1N1-M6-1208116S	1
14	Hexagon nut and tapered elastic washer assembly	F1N1-Q32206F38L	19
15	Hexagon bolt and tapered elastic washer assembling parts	F1N1-Q1410616F38L	10
16	Front exhaust heat shield	F1N1-M6-1208111S	1
17	Middle exhaust heat shield	F1N1-M6-1208112S	1
18	Exhaust heat shield transition bracket	F1N1-M6-1206030S	1
19	Rear exhaust heat shield	F1N1-M6-1208113S	1
20	Air conditioning pipe heat shield	F1N1-M6-1208114S	1
21	Heat shield of front cylinder	F1N1-M6-1208115S	1
22	Exhaust heat shield support	F1N1-M6-1206060S	1
	Gasket	F1N1-A-1203231	1
	Rubber lifting lug	F1N1-SX5G-1202010S7	2
