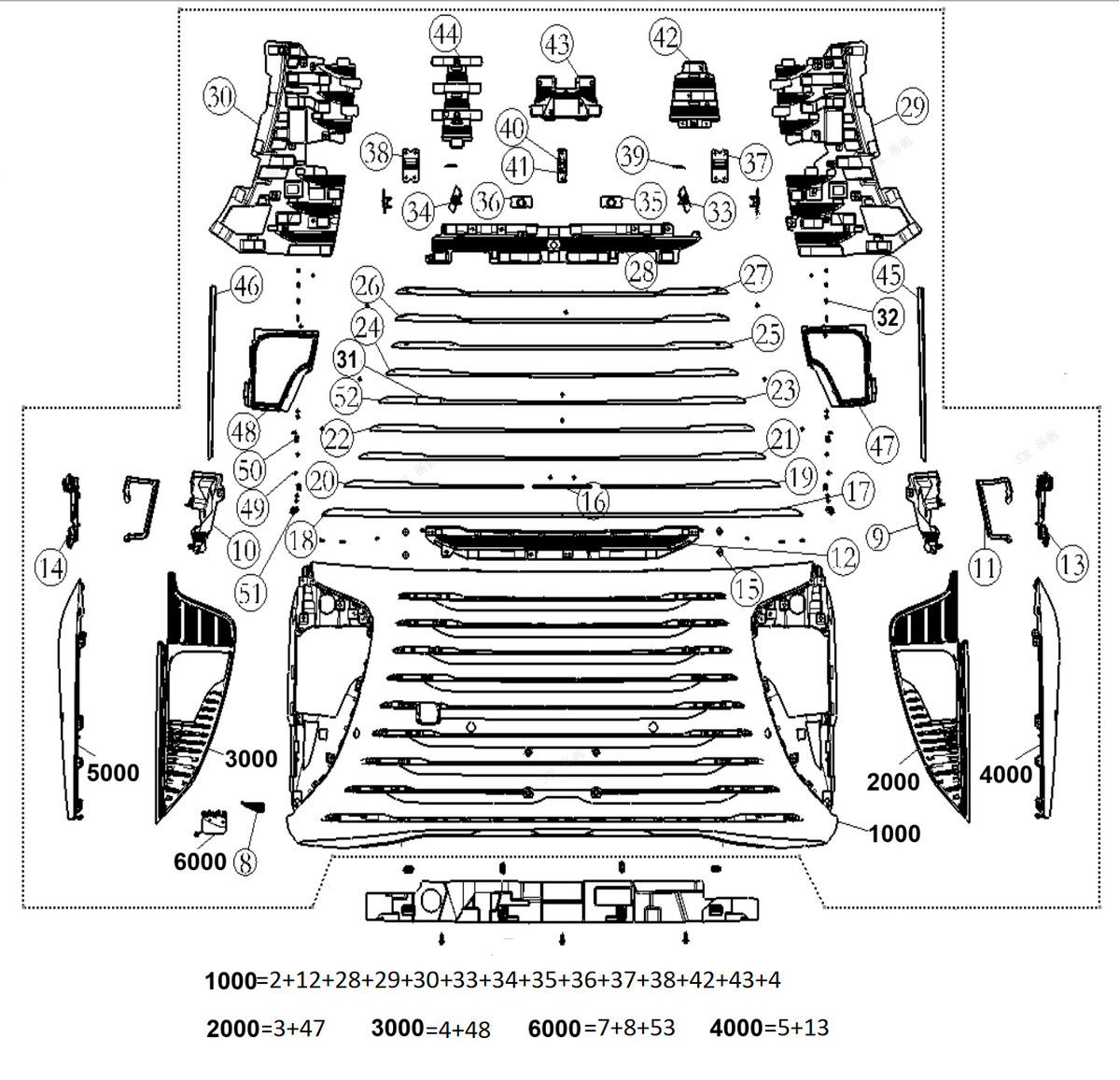

F1N1 - FRONT BUMPER ASSEMBLY
F1N1 - FRONT BUMPER ASSEMBLY
M6A15D65B17SR24 > Trim system > Front bumper module > Front bumper assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 8 | Front bumper tow hook cover trim | F1N1-08-000000 | 1 |
| 9 | Left air curtain upper trim panel | F1N1-M6-2803353 | 1 |
| 10 | Upper Trim Panel of Right Air Curtain | F1N1-M6-2803354 | 1 |
| 11 | Air curtain sponge strip | F1N1-M6-2803355 | 2 |
| 12 | Front bumper reinforcement bracket | F1N1-M6-2803338 | 1 |
| 13 | Left air curtain bottom plate | F1N1-13-000000 | 1 |
| 14 | Right air curtain bottom plate | F1N1-14-000000 | 1 |
| 15 | Rivet nut | F1N1-23391060946 | 1 |
| 16 | Front bumper center grille bright strip (F14) | F1N1-M6-2803335 | 1 |
| 17 | Front bumper left grille bright strip (F15) | F1N1-M6-2803336 | 1 |
| 18 | Front bumper right grille bright strip (F16) | F1N1-M6-2803337 | 1 |
| 19 | Front bumper left grille bright strip (F12) | F1N1-M6-2803333 | 1 |
| 20 | Front bumper right grille bright strip (F13) | F1N1-M6-2803334 | 1 |
| 21 | Front grille bright strip (F8) | F1N1-M6-2803328 | 1 |
| 22 | Front grille bright strip (F7) | F1N1-M6-2803327 | 1 |
| 23 | Front bumper left grille bright strip (F9) | F1N1-M6-2803329 | 1 |
| 24 | Front grille bright strip (F6) | F1N1-M6-2803326 | 1 |
| 25 | Front grille bright strip (F5) | F1N1-M6-2803325 | 1 |
| 26 | Front bumper left grille bright strip (F3) | F1N1-M6-2803323 | 1 |
| 27 | Front bumper left grille bright strip (F1) | F1N1-M6-2803321 | 1 |
| 28 | Middle grille body | F1N1-28-000000 | 1 |
| 29 | Left grille trim | F1N1-29-000000 | 1 |
| 30 | Right grille trim | F1N1-30-000000 | 1 |
| 31 | Tow hook cover bright strip (F11) | F1N1-53-000000 | 1 |
| 32 | Spring clip | F1N1-1798001 | 14 |
| 33 | Front left parking radar bracket (F2) | F1N1-M6-2803341 | 1 |
| 34 | Front right parking radar mount (F5) | F1N1-M6-2803342 | 1 |
| 35 | Left, center, front Parking Radar support (F3) | F1N1-M6-2803343 | 1 |
| 36 | Centre front right parking radar bracket (F4) | F1N1-M6-2803344 | 1 |
| 37 | Left supporting block of front grill | F1N1-M6-2803617 | 1 |
| 38 | Front grill right supporting block | F1N1-M6-2803618 | 1 |
| 39 | Rubber pad | F1N1-SX5G-2803127 | 2 |
| 40 | Front bumper camera bracket | F1N1-M6-2803315 | 1 |
| 41 | Front bumper camera limit bracket | F1N1-M6-2803316 | 1 |
| 42 | Front bumper reinforcement bracket | F1N1-M6-2803339 | 1 |
| 43 | Medium angle wave radar bracket | F1N1-M6-2803385 | 1 |
| 44 | Front bumper center reinforcement bracket | F1N1-M6-2803348 | 1 |
| 45 | Front bumper left headlight trim | F1N1-M6-2803357 | 1 |
| 46 | Front bumper right headlight trim | F1N1-M6-2803358 | 1 |
| 47 | Front bumper left headlight rubber strip | F1N1-47-000000 | 1 |
| 48 | Front bumper right headlight rubber strip | F1N1-48-000000 | 1 |
| 49 | Cross recessed cup head tapping screw with large head | F1N1-Q2734213F38 | 78 |
| 50 | Reed nut | F1N1-MX148101-2 | 18 |
| 51 | Cross recessed cup head tapping screw with large head | F1N1-LQ2734816F38A1 | 6 |
| 52 | Front bumper right grille bright strip (F10) | F1N1-M6-2803331 | 1 |
| 1000 | M6 front bumper component | F1N1-BP01-M6-2803311B | 1 |
| 2000 | M6 left headlight cover assembly | F1N1-BP01-M6-2803313 | 1 |
| 3000 | M6 right headlight cover assembly | F1N1-BP01-M6-2803314 | 1 |
| 4000 | M6 left decorative panel assembly-01 | F1N1-BP01-M6-2803361 | 1 |
| 5000 | M6 right decorative panel assembly-01 | F1N1-BP01-M6-2803371 | 1 |
| 6000 | M6 front bumper release cover assembly | F1N1-BP01-M6-2803319 | 1 |
| Front body-material parts | F1N1-M6-2803311B-1 | 1 | |
| Front bumper left trim panel body - material parts | F1N1-M6-2803361B-1 | 1 | |
| Front bumper release cover-material | F1N1-M6-2803319-1 | 1 | |
| Front bumper right panel body - material parts | F1N1-M6-2803371B-1 | 1 | |
| Left center front parking radar bracket (F3) - material | F1N1-M6-2803343-1 | 1 | |
| Left front blind spot radar bracket (F1) - material | F1N1-M6-2803364-1 | 1 | |
| Left front parking radar bracket (F2) - material | F1N1-M6-2803341-1 | 1 | |
| Right center front parking radar bracket (F4) - material | F1N1-M6-2803344-1 | 1 | |
| Right front blind spot radar bracket (F6) - material | F1N1-M6-2803374-1 | 1 | |
| Right front parking radar bracket (F5) - material | F1N1-M6-2803342-1 | 1 |
