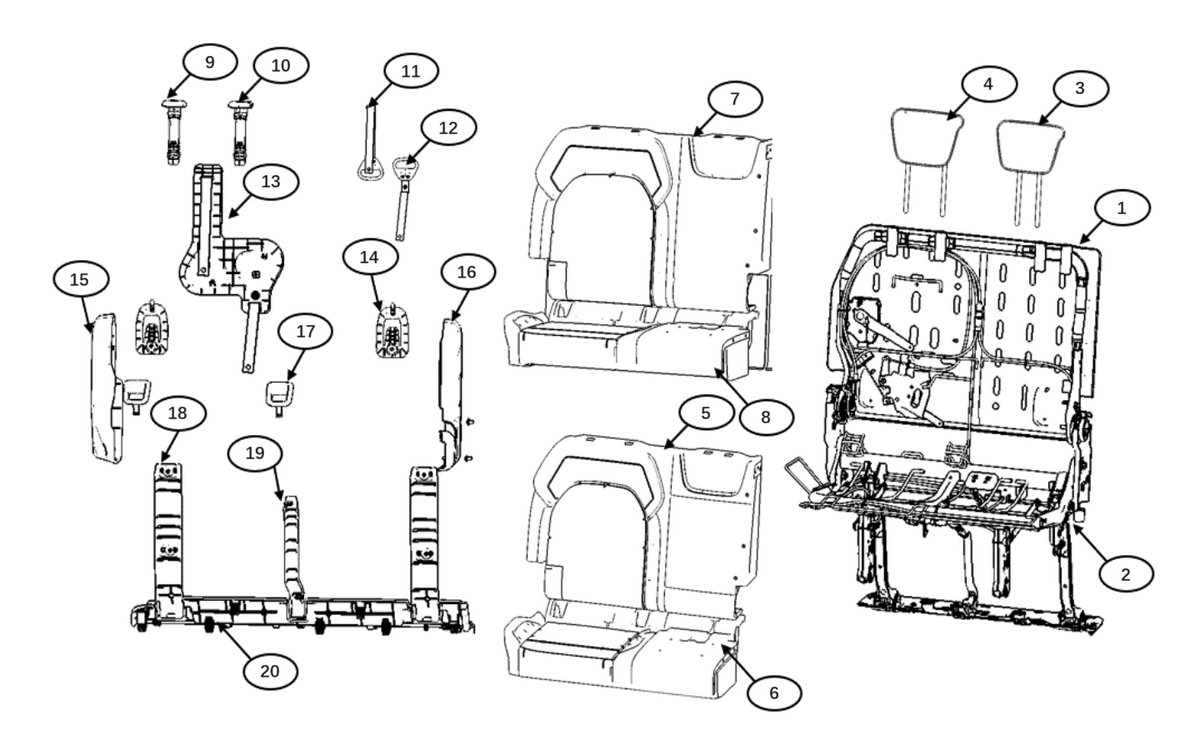

F1N1 - THIRD ROW RIGHT SEAT ASSEMBLY

M6A15D65B17SR24 > Seat system > three seat module > Third row right seat assembly

Rep.	Designation	Reference	Qte/vehicule
1	60% backrest skeleton assembly of third row	F1N1-DL5U1703	1
2	Third-row 60% seat cushion framework assembly	F1N1-DL5U1705	1
3	Rear middle headrest assembly, imitation leather	F1N1-DL5U0034	1
4	Rear side headrest assembly, imitation leather	F1N1-DL5U0032	1
5	60% rear backrest foam assembly	F1N1-DL5U2017	1
5	Backrest assembly	F1N1-M6-7300060B1S-A1	1
6	60% rear seat cushion foam assembly	F1N1-DL5U2019	1
6	Seat cushion assembly	F1N1-M6-7300060B1S-B1	1
7	60% Rear seat cushion cover assembly, imitation leather	F1N1-DL5U4021	1
8	60% Rear Backrest Cover Assembly, Imitation Leather	F1N1-DL5U4022	1
9	Front end headrest guide sleeve free end	F1N1-DL4S3144	1
10	Locking end of front headrest guide sleeve	F1N1-DL4S3143	1
11	Backrest Unlock Pull Ring (with Strap and Metal Piece)	F1N1-DL5U8008	1
12	Floor lock unlocking pull ring (with tensile belt + iron plate)	F1N1-DL5U8009	1
13	60% trim cover	F1N1-DL5U3066	1
14	Rear Hook	F1N1-DL5U3271	1
15	60% outer panel	F1N1-DL5U3067	1
16	60% Inner Trim Panel	F1N1-DL5U3068	1
17	ISOFIX cover	F1N1-DL5U3272	1
18	Back row rear bracket cover	F1N1-DL5U3270	1
19	Connecting rod head cover of rear row	F1N1-DL5U3063	1
20	60% rear foot cover	F1N1-DL5U3070	1
