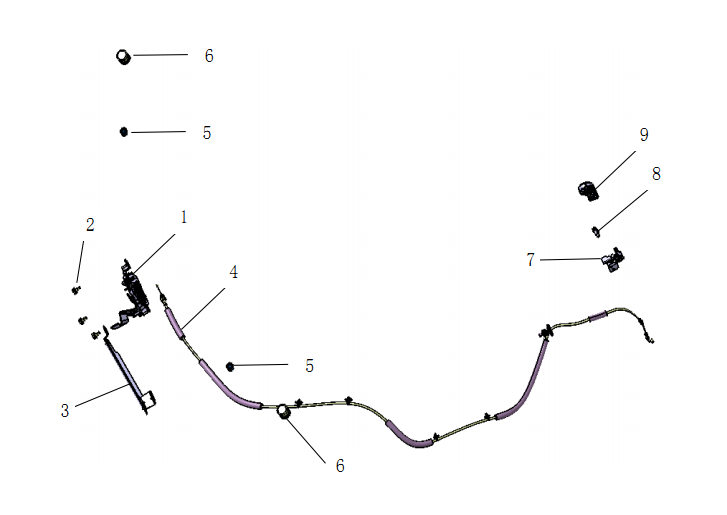

F1T1 - Engine hood lock and open module
F1T1 - Engine hood lock and open module
SX5KCTQ15T65D05GR24C > Engine system > Engine hood lock and open module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Hood lock assembly | F1T1-BM3-8402100B | 1 |
| 2 | Hexagon bolt, spring washer, flat washer assembly | F1T1-Q1460616F38 | 2 |
| 3 | cable baffle for engine hood lock | F1T1-BS3-8402060A | 1 |
| 4 | Opening cable in hood lock | F1T1-SX5-8402630 | 1 |
| 4 | Opening cable in hood lock | F1T1-SX5-8402630 | 2 |
| 5 | Small buffer block | F1T1-BS3-8402410 | 2 |
| 6 | Front cover of the hood | F1T1-DM5L-8402044 | 2 |
| 7 | Handle mounting base assembly | F1T1-DM5L-8402212 | 1 |
| 8 | Hexagon bolt, spring washer, flat washer assembly | F1T1-Q1460816F38 | 4 |
| 9 | Opening handle in Engine hood | F1T1-DM5L-8402210 | 1 |
