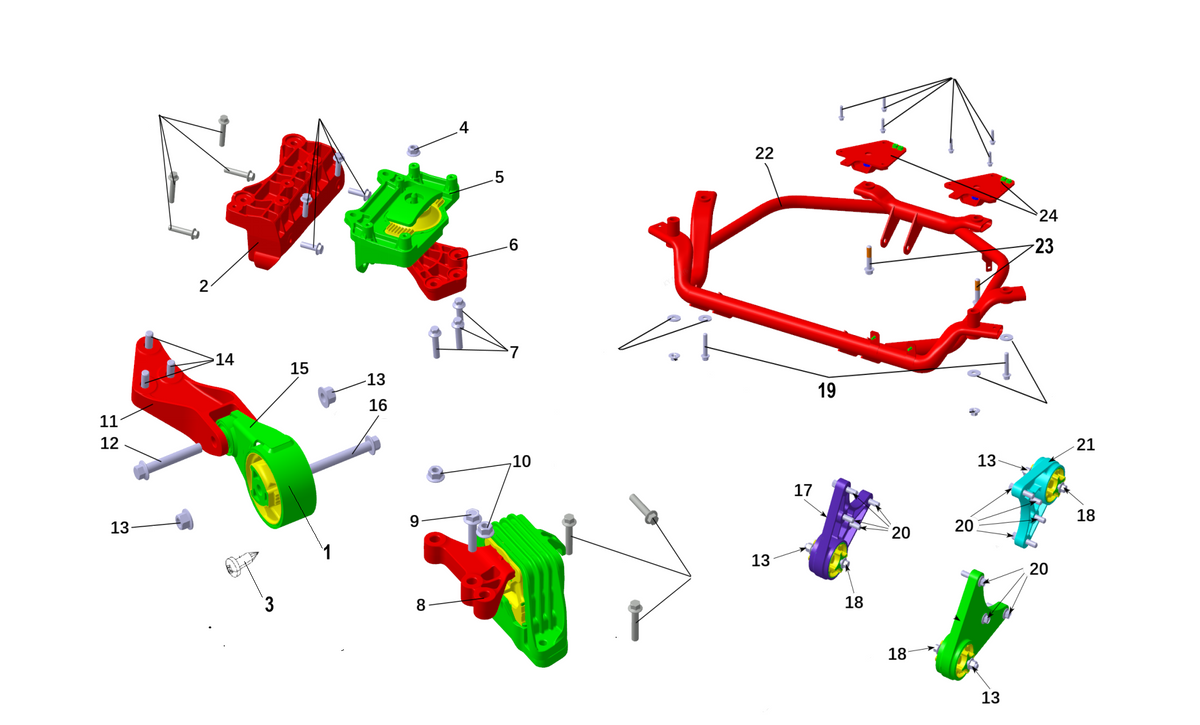

F1F2 - ENGINE MOUNT MODULE

SX5GREEVA15D65C05GZ25C > Engine system > Engine mount module

Rep.	Designation	Reference	Qte/vehicule
1	Right mounting assembly	F1F2-SX5G-1001810A	1
2	Transition bracket for left suspension of powertrain	F1F2-SX5G-1001745S1	1
3	Cross recessed pan head tapping screw and large gasket combination	F1F2-Q2213513F38	3
4	All-metal hexagon flanged lock nut	F1F2-Q33114T13F38	2
5	Drive unit left suspension cushion assembly	F1F2-SX5G-1001740S1	2
6	Left mount support assembly for the drive unit	F1F2-SX5G-1001710S1	1
7	Hexagon flange bolt	F1F2-Q1851250TF38	7
8	right suspension bracket assembly for the drive unit	F1F2-SX5G-1001720S1	1
8	right suspension bracket assembly for the drive unit	F1F2-SX5G-1001720S1	1
9	Hexagon flange bolt	F1F2-Q1841250TF38	10
10	Hexagon flanged nut	F1F2-Q32010T13F62	2
11	Rear mounting bracket for drive unit	F1F2-SX5G-1001732S1	1
12	Hexagon flange bolt	F1F2-Q1851280TF38	1
13	All-metal hexagon flanged lock nut	F1F2-Q33112T13F38	3
14	Hexagon flange bolt	F1F2-Q1841045TF38	8
15	Cushion assembly, rear suspension, drive unit	F1F2-SX5G-1001730S1	1
16	Hexagon flange bolt	F1F2-Q1841025TF38	2
17	Left suspension cushion of drive unit	F1F2-SX5G-1001820A	1
18	Hexagon flange bolt	F1F2-Q1851460TF38	3
19	Hexagon flange bolt	F1F2-Q18512100TF36	3
20	Hexagon flange bolt	F1F2-Q1851270TF38	1
21	Front suspension cushion of drive unit	F1F2-SX5G-1001830A	1
22	Drive Unit Suspension Crossbeam Assembly	F1F2-SX5G-1001813AS1	1
23	Hexagon flange bolt	F1F2-SX5G-2810946	1
24	Drive unit suspension crossbeam transition bracket	F1F2-SX5G-1001812S1	1
