F1F2 - REAR SEAT MODULE

SX5GREEVA15D65C05GZ25C > Seat system > Rear seat module

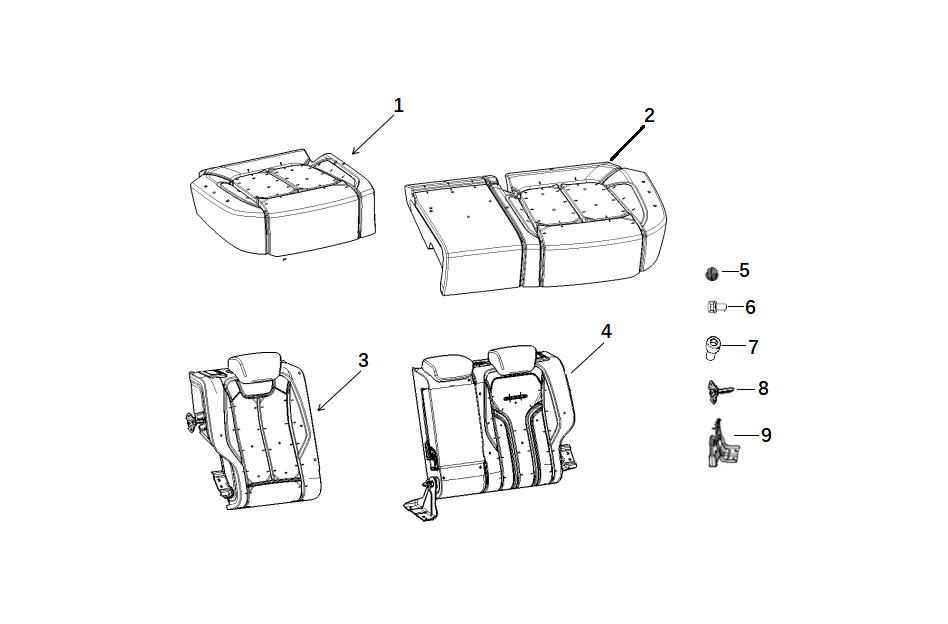

Rep.	Designation	Reference	Qte/vehicule
1	40% seat cushion assembly of second row	F1F2-SX5G-7000520-Y1	1
2	60% seat cushion assembly of second row	F1F2-SX5G-7000620-Y1	1
3	40% seat backrest assembly of second row	F1F2-SX5G-7000360A-Y1	1
4	60% seat backrest assembly of second row	F1F2-SX5G-7000460E-Y1S	1
5	Hexagon nut and tapered elastic washer assembly	F1F2-Q32210F38	2
6	Hexagon socket head bolt	F1F2-SX5G-6800111	2
7	Backseat fixing lock bar	F1F2-SX5G-7007011	2
8	Hexagon flange bolt	F1F2-Q1851025TF38	4
9	Rear seat hinge bracket	F1F2-SX5G-7007021B	1

Price on request

CHF 0.01

Promotion Épuisé

Number 1 : 40% seat cushion assembly of second row 2 : 60% seat cushion assembly of second row 3 : 40% seat backrest assembly of second row 4 : 60% seat backrest assembly of second row 5 : Hexagon nut and tapered elastic washer assembly 6 : Hexagon socket head bolt 7 : Backseat fixing lock bar 8 : Hexagon flange bolt 9 : Rear seat hinge bracket

Quantité

Manufacturer :

Forthing

Article Nr. :

SKU:F1F2-SX5G-7000520-Y1
