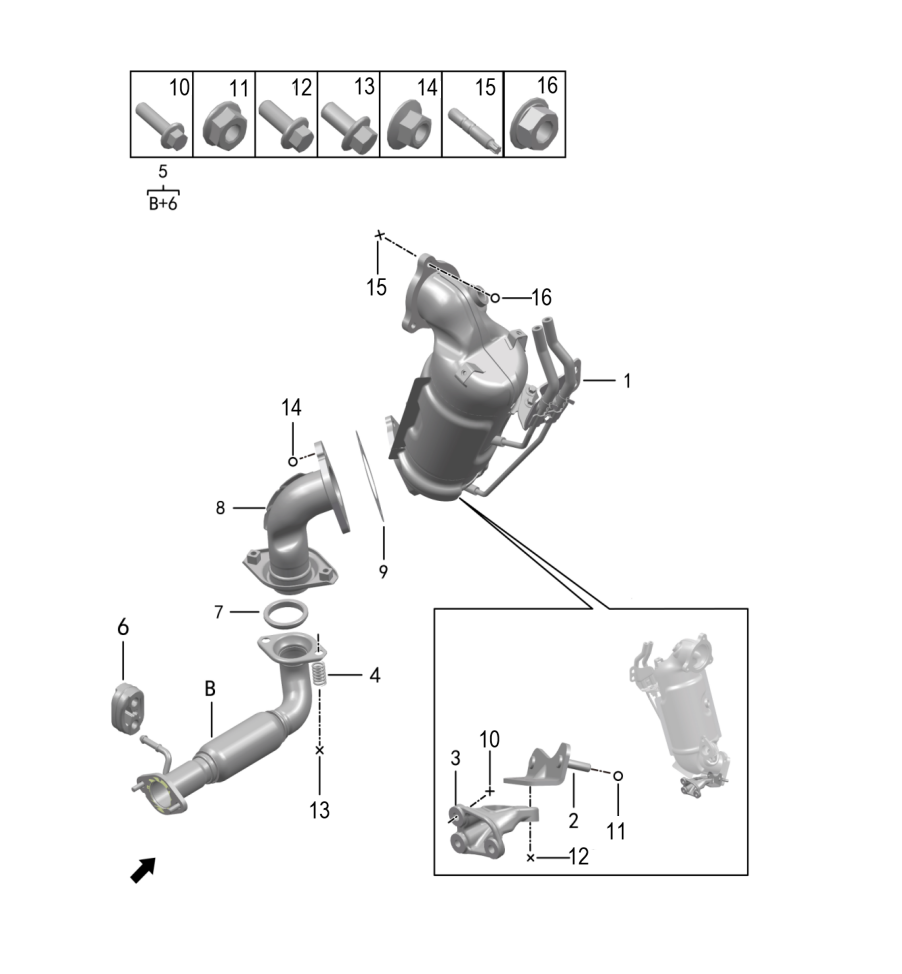

F1N1 - EXHAUST HOT END

M6A15D65B17SR24 > engine > Engine assembly module > Engine assembly > Exhaust hot end

Rep.	Designation	Reference	Qte/vehicule
1	Exhaust pipe lifting lug assembly	F1N1-H56B1205011AA	1
2	Catalytic converter	F1N1-B016669	1
3	Catalytic converter	F1N1-B016668	1
4	spring linkage	F1N1-H56A1203003AA	2
5	Exhaust Pipe Assembly of Front End	F1N1-H56A1203001AA	1
6	ring	F1N1-H56A1201016AA	1
7	Seal gasket	F1N1-H56A1203002AA	1
8	Engine connecting pipe	F1N1-H56A1205005AA	1
9	Muffler gasket	F1N1-H56A1201015AA	1
10	Flange bolt	F1N1-9506025	3
11	Nut	F1N1-B012937	2
12	Flange bolt	F1N1-9506042	3
13	Connecting bolts	F1N1-H56A1203004AA	2
14	Lock nut	F1N1-HQY33010T10L1	2
15	Double-ended stud	F1N1-B012935	3
16	Nut	F1N1-B012934	3
