F1N1 - FUEL LINE AND CONNECTOR MODULE
F1N1 - FUEL LINE AND CONNECTOR MODULE

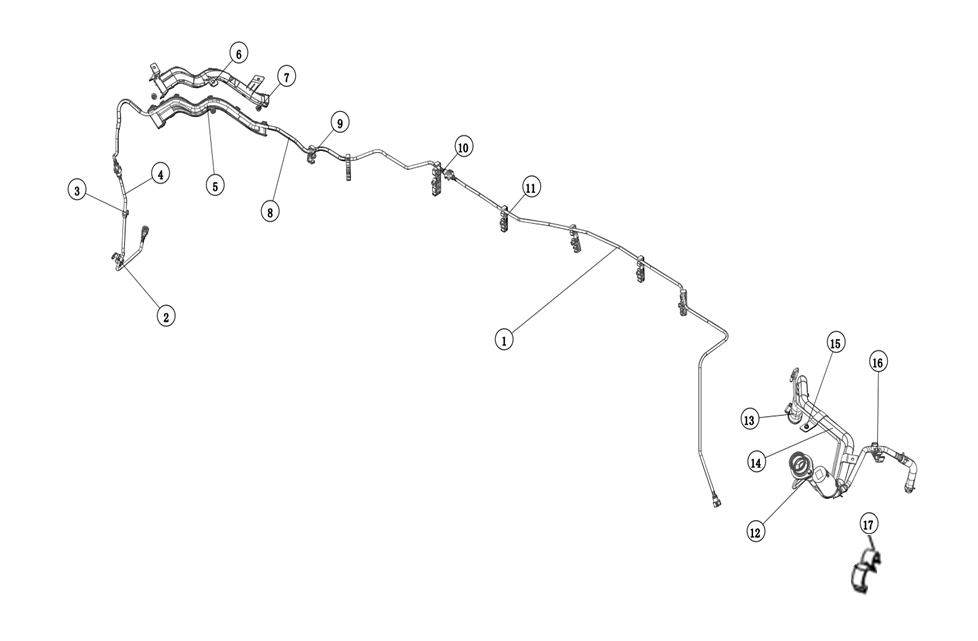

M6A15D65B17SR24 > Engine system > Fuel line and connector module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Five-hole pipe clamp | F1N1-M6-1104602S2 | 3 |
| 2 | A-type worm drive hose hoop | F1N1-Q67545F36 | 1 |
| 3 | Hexagon flanged nut | F1N1-Q32006F38 | 1 |
| 3 | Hexagon nut and tapered elastic washer assembly | F1N1-Q32206F38L | 1 |
| 4 | Hexagon bolt, spring washer, flat washer assembly | F1N1-Q1460620F38 | 3 |
| 5 | DMTL diagnostic positive pressure pump assembly | F1N1-SX5G-1130210 | 1 |
| 6 | Cross recessed pan head tapping screw and flat washer assembly | F1N1-Q220B4813F38A | 3 |
| 7 | Fueling pipe assembly | F1N1-M6-1104030S | 1 |
| 8 | Oil pipeline assembly | F1N1-M6-1104075S | 1 |
| 9 | Pipe clamp | F1N1-M6-1104621CS | 4 |
| 10 | Double pipe clamp | F1N1-SX5H-1104623A | 1 |
| 11 | Four-pipe clamp | F1N1-M6-1104601S2 | 4 |
| 12 | Fuel Line Guard Lower Housing | F1N1-M6-1104127S | 1 |
| 13 | Upper housing of fuel pipe guarding board | F1N1-SX5G-1104126S | 1 |
| 14 | Clamp | F1N1-C20-1104023 | 1 |
| 15 | Fuel pipe support | F1N1-M6-1104101S | 1 |
| 18 | Hexagon flange bolts-enlarged series | F1N1-Q1860612F36 | 2 |
| 19 | Oil delivery pipe assembly (pipe clamp-engine room) | F1N1-M6-1104055S1 | 1 |
Prix habituel
CHF 13.35
Prix habituel
Prix promotionnel
CHF 13.35
Prix unitaire
/
par
Impossible de charger la disponibilité du service de retrait
Manufacturer :
Forthing
Article Nr. :
SKU:F1N1-M6-1104602S2
