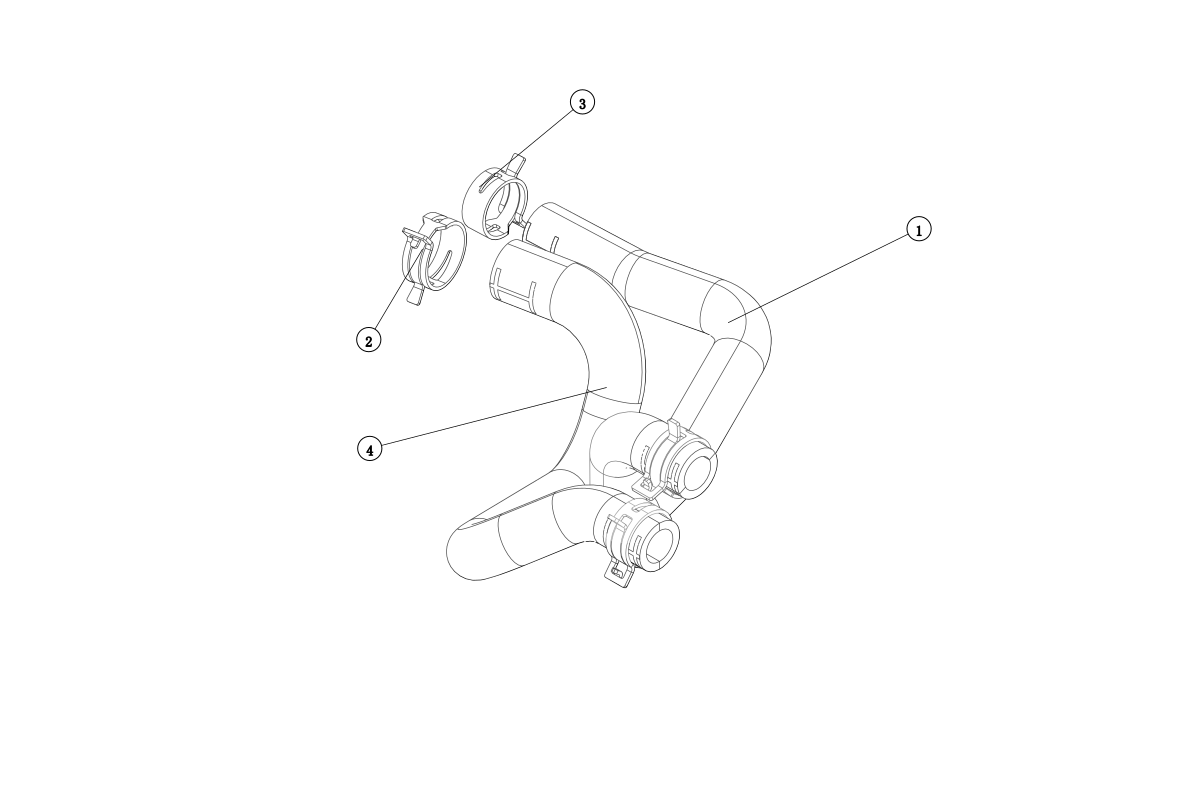

F1N1 - HEATING EQUIPMENT MODULE

M6A15D65B17SR24 > Air Conditioning System > Heating equipment module

Rep.	Designation	Reference	Qte/vehicule
1	Steel strip elastic hose clip hoop	F1N1-Q673C27F62	2
2	PTC Support	F1N1-M6-8101515S	1
3	Water heater PTC assembly	F1N1-CM5-8101520S	1
4	Hexagon bolt, spring washer, flat washer assembly	F1N1-Q1460620F38	4
5	Hexagon bolt, spring washer, flat washer assembly	F1N1-Q1460625F38	6
6	Heating air pipe assembly 2	F1N1-M6-8101420S	1
7	Heating air pipe assembly I	F1N1-M6-8101410BS	1
9	Steel strip type elastic hoop	F1N1-13MA-11011	2
10	Heating air water pipe assembly 3	F1N1-M6-8101430S	1
11	Heater water pipe assembly 4	F1N1-M6-8101440S	1
12	Heating air pipe assembly 5	F1N1-M6-8101450S	1
13	All-metal hexagon flanged lock nut	F1N1-Q33006F38	12
14	Steel strip elastic hose clip hoop	F1N1-Q673C24F62	11
15	Warm air hose assembly six	F1N1-M6-8101460BS	1
16	Heater water pipe assembly	F1N1-M6-8101470BS	1
