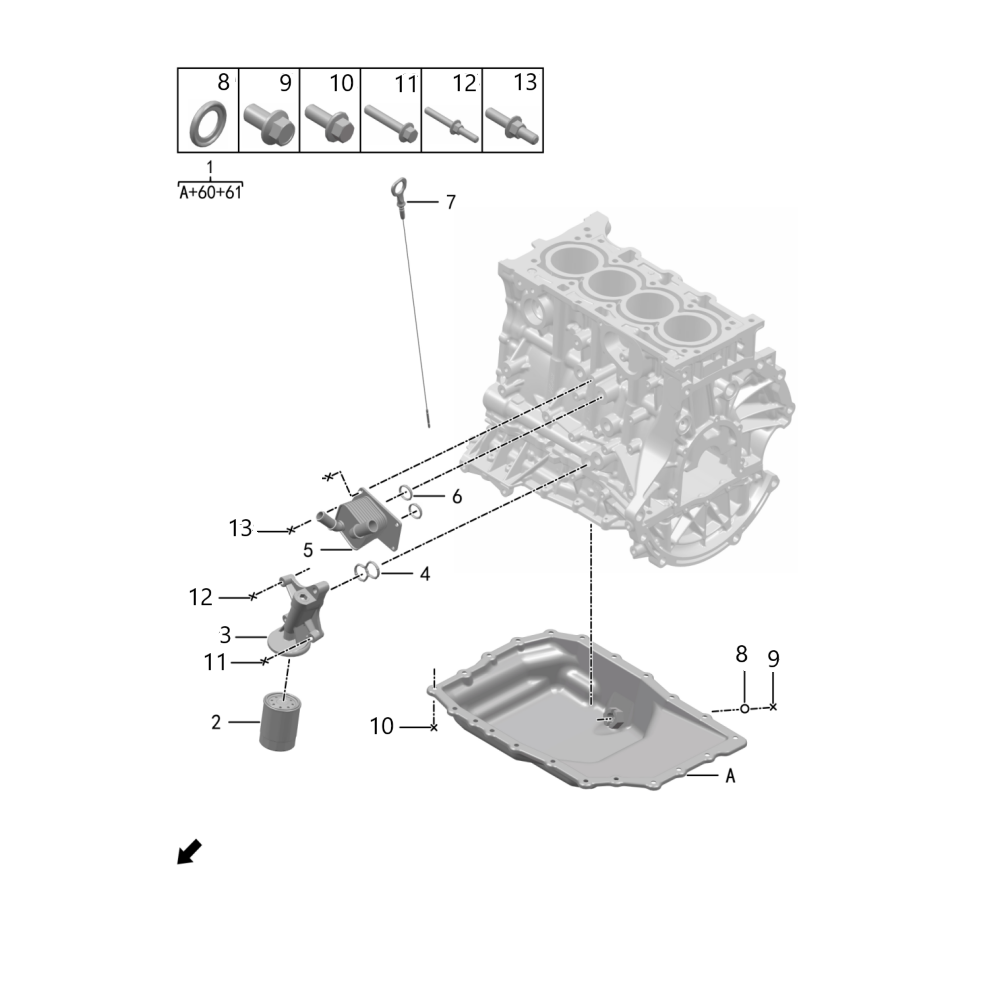

F1N1 - OIL PAN AND FILTER

M6A15D65B17SR24 > engine > Engine assembly module > Engine assembly > Oil pan and filter

Rep.	Designation	Reference	Qte/vehicule
1	Oil pan	F1N1-B016461	1
2	Oil filter	F1N1-B018409	1
3	Oil filter base	F1N1-B019928	1
4	Sealing ring	F1N1-B016467	1
5	Oil cooler	F1N1-A100151360	1
6	O-ring	F1N1-B010514	2
7	Oil dipstick	F1N1-B010574	1
8	Washer	F1N1-B016463	1
9	Oil drain screw plug	F1N1-B016462	1
10	Bolt	F1N1-9506023	25
11	Flange bolt	F1N1-B010445	2
12	Shoulder Hex Flange Dual-Ended Stud	F1N1-Q027407-0635	2
13	Shoulder-type double-headed stud	F1N1-Q027419-0620	1
