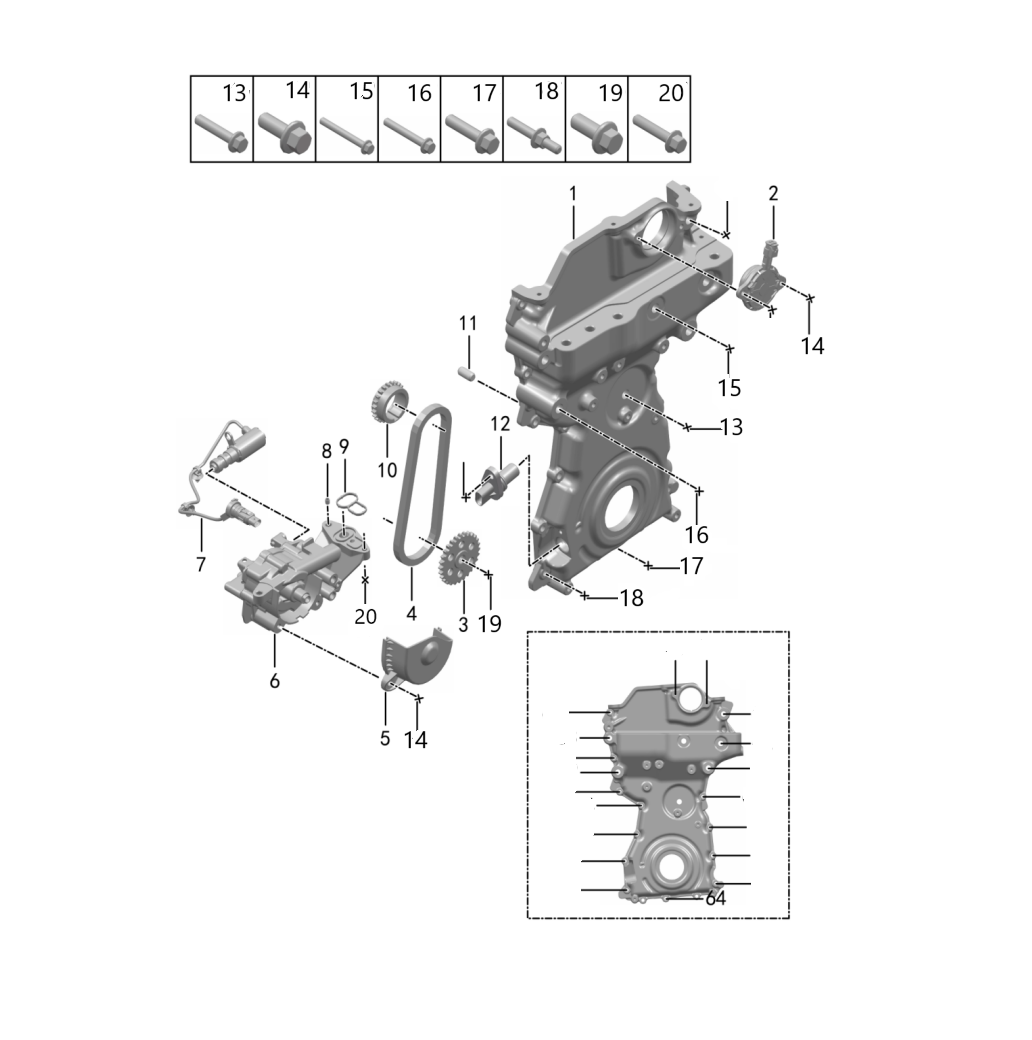

F1N1 - OIL PUMP

M6A15D65B17SR24 > engine > Engine assembly module > Engine assembly > Oil pump

Rep.	Designation	Reference	Qte/vehicule
1	Timing chain cover	F1N1-A100144060	1
2	VVT solenoid valve	F1N1-A100154460	1
3	Sprocket (oil pump drive)	F1N1-A100142960	1
4	Oil pump drive chain	F1N1-A100142860	1
5	Timing chain cover	F1N1-B010565	1
6	Oil pump assembly	F1N1-B016458	1
7	Oil pump solenoid valve assembly	F1N1-B018799	1
8	Locating ring	F1N1-B010444	2
9	Sealing ring	F1N1-B016457	1
10	crankshaft oil pump driving gear	F1N1-A100143060	1
11	Cylindrical pin	F1N1-B010508	2
12	Speed sensor assembly	F1N1-B016602	1
13	Flange bolt	F1N1-B014249	2
14	Bolt	F1N1-9506023	5
15	Flange bolt	F1N1-B016459	3
16	Flange bolt	F1N1-9506072	2
17	Hex flange face flat end bolt	F1N1-9506021	12
18	Shoulder Hex Flange Dual-Ended Stud	F1N1-B010438	2
19	Flange bolt	F1N1-B016557	1
20	Bolt	F1N1-9506024	3
