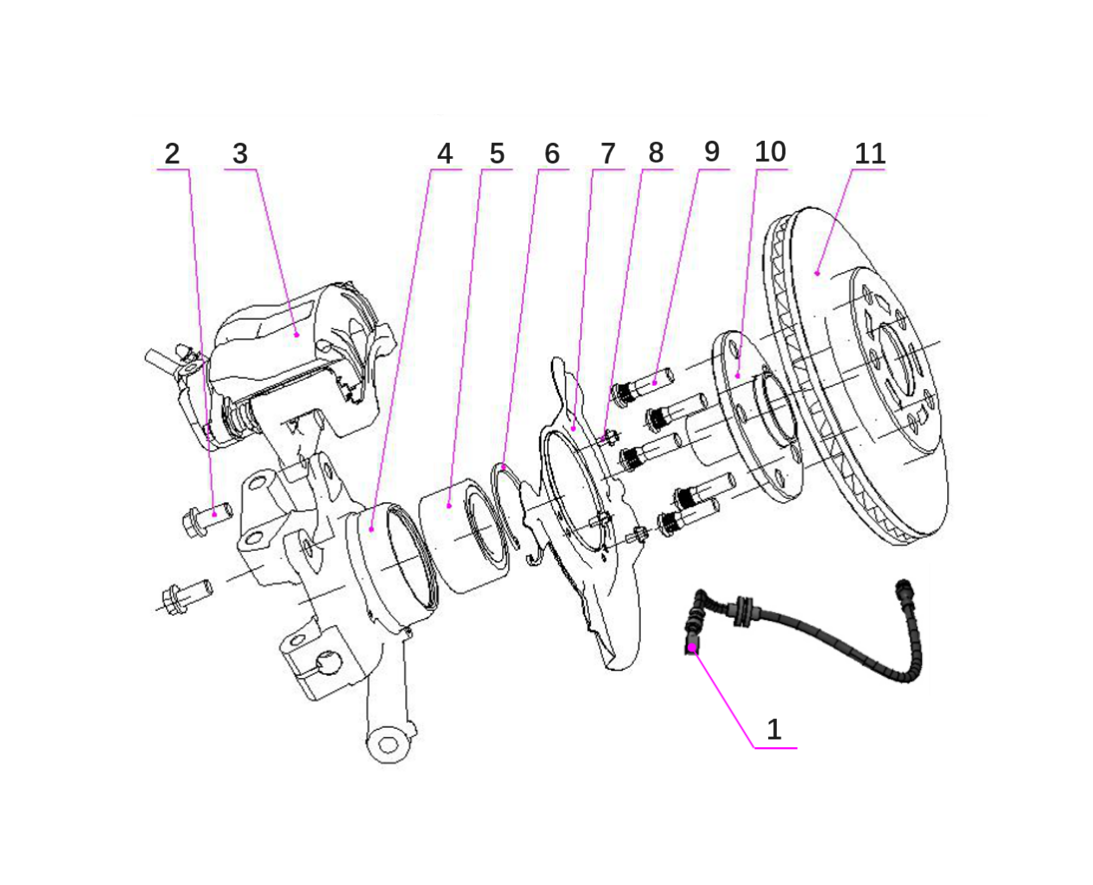

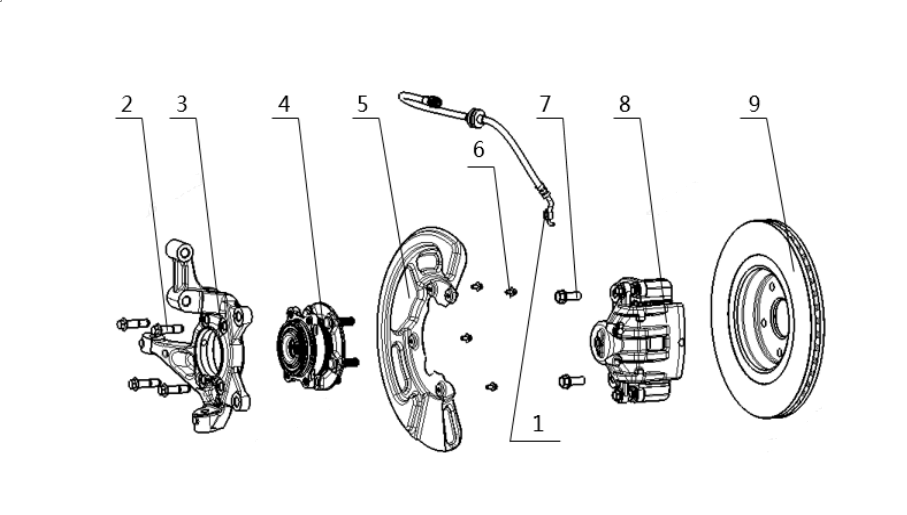

F1N1 - RF AXLE WITH CALIPER ASSEMBLY
F1N1 - RF AXLE WITH CALIPER ASSEMBLY
M6A15D65B17SR24 > Suspension and axle > Knuckle belt hub assembly module > RF axle with caliper assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Copper pad | F1N1-A-3506082 | 4 |
| 1 | Hollow bolt | F1N1-A-3506081 | 2 |
| 1 | Right front brake hose assembly | F1N1-M4-3561120 | 1 |
| 2 | Front hub bearing mounting bolt | F1N1-M4-3104015 | 8 |
| 3 | Right front steering knuckle | F1N1-M6-3006012 | 1 |
| 4 | Front hub bearing unit assembly | F1N1-SX5G-3001010 | 2 |
| 5 | RF mudguard | F1N1-SX5G-3001114 | 1 |
| 6 | Hexagon flange bolt | F1N1-Q1840610F36 | 8 |
| 7 | Screws for caliper | F1N1-M6-3502012 | 4 |
| 8 | Right front brake calliper assembly | F1N1-M6-3501020 | 1 |
| 9 | Front brake disc | F1N1-M6-3501210 | 2 |
Price on request
Prix habituel
CHF 0.01
Prix habituel
Prix promotionnel
CHF 0.01
Prix unitaire
/
par
Impossible de charger la disponibilité du service de retrait
Manufacturer :
Forthing
Article Nr. :
SKU:F1N1-A-3506082
