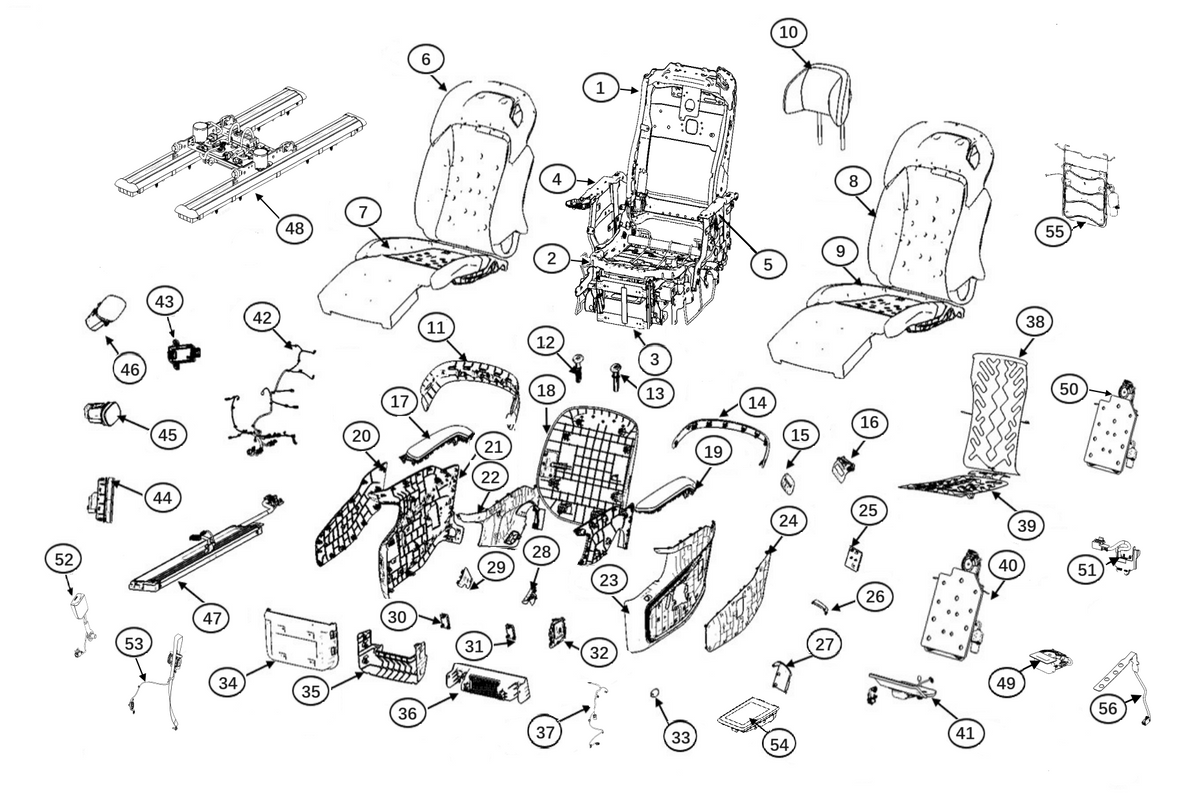

F1N1 - SECOND ROW LEFT SINGLE SEAT ASSEMBLY
F1N1 - SECOND ROW LEFT SINGLE SEAT ASSEMBLY
M6A15D65B17SR24 > Seat system > Rear single seat module > Second row left single seat assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | backrest skeleton assembly of middle row, left side, electric, ventilated | F1N1-DL5U1036 | 1 |
| 2 | Center Row Cushion Skeleton Assembly, Left Side, Power Long Slide, Ventilated | F1N1-DL5U1959 | 1 |
| 3 | Leg rest assembly | F1N1-DL5U7016 | 1 |
| 4 | Center large armrest framework assembly, left chair, right side | F1N1-DL5U1012 | 1 |
| 5 | Center large armrest skeleton assembly, left chair, left side | F1N1-DL5U1011 | 1 |
| 6 | Left side backrest foam assembly of second row, double armrest,heating, ventilation,lumbar support, LV3 | F1N1-DL5U2225 | 1 |
| 7 | Second row left seat cushion foam assembly, electric, SBR, leg rest, Heated, Ventilated, LV3 & LV4 | F1N1-DL5U2010 | 1 |
| 8 | Backrest assembly | F1N1-M6-7100230S-A1 | 1 |
| 8 | Middle Right backrest trim assembly, left side, fixing armrests, PVC | F1N1-DL5U4007T29 | 1 |
| 9 | Center row seat cushion top cover assembly, left side, fixed armrest, PVC, legrests | F1N1-DL5U4008T29 | 1 |
| 9 | Seat cushion assembly | F1N1-M6-7100230S-B1 | 1 |
| 10 | Middle seat headrest assembly, PVC | F1N1-DL5U0014T29 | 1 |
| 11 | LV3/4 backrest upper trim lining of middle row | F1N1-DL5U3022 | 1 |
| 12 | Headrest Guide Sleeve of Middle Row - Locking End | F1N1-DL5U3001S29 | 1 |
| 13 | Middle row headrest guide bushing - free end | F1N1-DL5U3002S29 | 1 |
| 14 | LV3/4 backrest upper trim lining of middle row | F1N1-DL5U3021 | 1 |
| 15 | left individual seat belt guide trim of middle row (LV2/LV3) | F1N1-DL5U3015S29 | 1 |
| 16 | Middle row left independent seat belt guide base1 | F1N1-DL5U3016S29 | 1 |
| 17 | Middle row left seat armrest assembly light color (inner armrest + inner guard plate + wiring harness + one-button reset switch + USB component + armrest frame + display screen) | F1N1-DL-LZ5U3001T29 | 1 |
| 18 | LV3/4 Left Seat Back Panel Assembly of Middle Row | F1N1-DL5U3038T29 | 1 |
| 19 | Middle row LV3/4 left chair outer armrest assembly | F1N1-DL5U3047T29 | 1 |
| 20 | Middle seat LV3/4 left seat inner panel decorative cover assembly | F1N1-DL5U3256 | 1 |
| 21 | Middle row LV3/4 left seat inner guard assembly | F1N1-DL5U3041 | 1 |
| 22 | LV3/4 Left Seat Inner Trim Panel Fastener Assembly of Middle Row | F1N1-DL5U3042 | 1 |
| 23 | Middle row LV3/4 left seat outer guard platecover assembly | F1N1-DL5U3039S29 | 1 |
| 24 | Middle row LV3/4 left seat outer guard panel trim cover assembly | F1N1-DL5U3252S29 | 1 |
| 25 | Middle row left independent seat belt guide base 4 | F1N1-DL5U3365 | 1 |
| 26 | Seat belt guide base of middle left independent seat | F1N1-DL5U3017 | 1 |
| 27 | Middle Row Left Independent Seat Belt Guide Base 3 | F1N1-DL5U3018S29 | 1 |
| 28 | Middle seat LV3/4 left seat outer plate alignment fastener split piece | F1N1-DL5U3251S29 | 1 |
| 29 | Middle row LV3/4 left seat inner guard panel pair fastener split part | F1N1-DL5U3255 | 1 |
| 31 | Middle row foot cover | F1N1-DL5U3014S29 | 2 |
| 32 | Middle row LV3/4 left seat side sliding unlocking buckle assembly | F1N1-DL5U3250S29 | 1 |
| 33 | Bumper block | F1N1-DL5U3052 | 1 |
| 34 | Inner panel of leg rest | F1N1-DL5U3267S29 | 1 |
| 35 | Leg Rest Outer Guard | F1N1-DL5U3266S29 | 1 |
| 36 | Middle seat leg cover assembly | F1N1-DL5U3011S29 | 1 |
| 37 | Armrest wiring harness assembly-middle row left chair | F1N1-DL5U5092 | 1 |
| 38 | Backrest Heater Pad, Middle Row Left & Right Side L3 & L4 | F1N1-DL5U5012 | 1 |
| 39 | Seat cushion heating pad, middle row right L3 & L4 | F1N1-DL5U5011 | 1 |
| 40 | Backrest air sleeve, middle seat left&right side L3&L4 | F1N1-DL5U5021 | 1 |
| 41 | Seat cushion wind bag, left side of middle row, L3 & L4 | F1N1-DL5U5020 | 1 |
| 42 | Harness，middle row left, L4 | F1N1-DL5U5107 | 1 |
| 43 | USB assembly, center row left & right L1&L2&L3&L4 | F1N1-DL5U5039 | 1 |
| 44 | Boss key switch, middle seat L3&L4 electric long slide rail, left | F1N1-DL5U5123 | 1 |
| 45 | Center Row Left Motorized Long Slide Unlock Switch Assembly, LV3LV4 | F1N1-DL5U5109 | 1 |
| 46 | One-button reset switch, left side of middle row, L3 & L4 | F1N1-DL5U5034 | 1 |
| 47 | Middle row wiring harness box assembly left, LV3LV4 | F1N1-DL5U5103Q69 | 1 |
| 48 | Middle row electric long slide rail assembly left, LV3LV4 | F1N1-DL5U0086Q69 | 1 |
| 49 | Middle row left chair cushion fan | F1N1-DL5U5017 | 1 |
| 50 | Middle row left chair back fan | F1N1-DL5U5019 | 1 |
| 51 | Side slip sensor | F1N1-DL4S5023 | 1 |
| 52 | Retractor, left side with warning function | F1N1-DL5U8027 | 1 |
| 53 | Buckle，with warning | F1N1-DL5U8030 | 1 |
| 54 | Left display screen | F1N1-DL5U8005 | 1 |
| 55 | Lumbar support massage middle row left side L4 | F1N1-DL5U5029 | 1 |
| 56 | SBR, passenger seat L3 & L4, middle row left & right L2 & L3 & L4 | F1N1-DL5U5022 | 1 |
| 57 | ECU, Left Side, Electric, Heated, Ventilated | F1N1-DL5U5044 | 1 |
