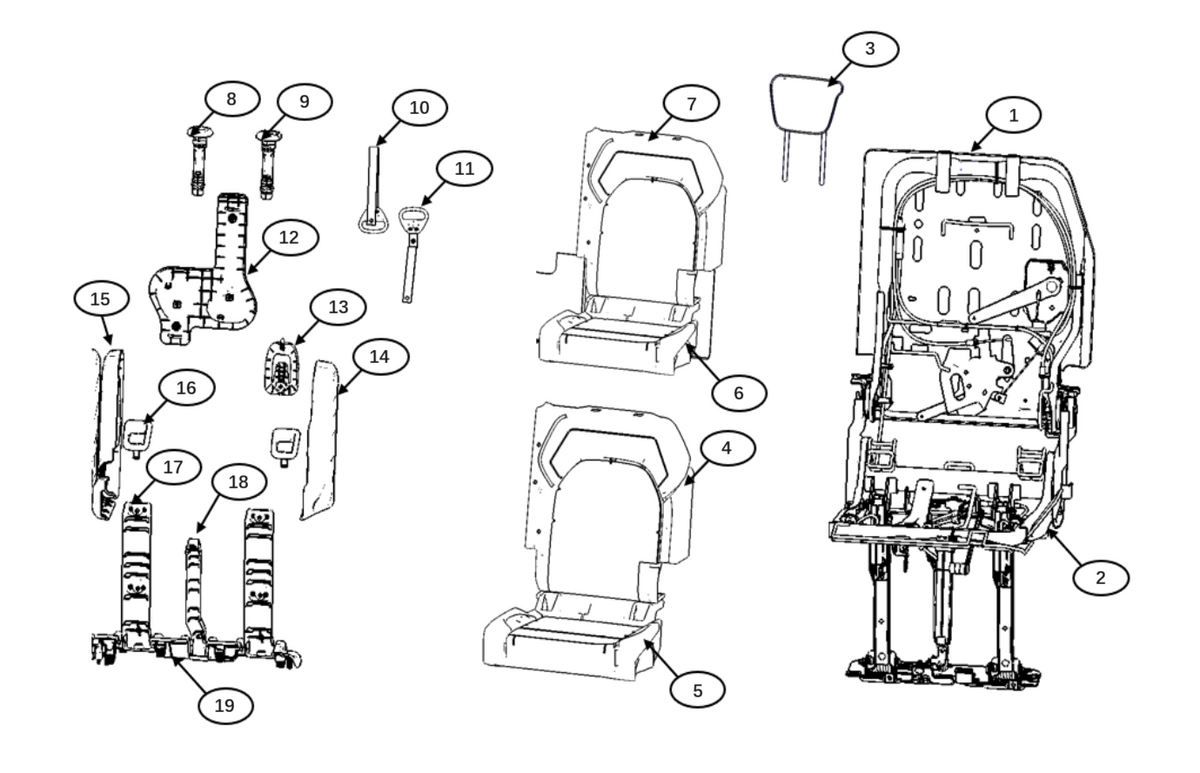

F1N1 - THIRD ROW LEFT SEAT ASSEMBLY

M6A15D65B17SR24 > Seat system > three seat module > Third row left seat assembly

Rep.	Designation	Reference	Qte/vehicule
1	40% Backrest Frame Assembly of Third Row	F1N1-DL5U1702	1
2	40% seat cushion skeleton assembly of third row	F1N1-DL5U1704	1
3	Rear side headrest assembly, imitation leather	F1N1-DL5U0032	1
4	40% rear backrest foam assembly	F1N1-DL5U2016	1
4	Backrest assembly	F1N1-M6-7300050B1S-A1	1
5	40% rear seat cushion foam assembly	F1N1-DL5U2018	1
5	Seat cushion assembly	F1N1-M6-7300050B1S-B1	1
6	40% Rear Seat Cushion Cover Assembly, Faux Leather	F1N1-DL5U4019	1
7	40% rear seat back cover assembly, imitation leather	F1N1-DL5U4020	1
8	Front end headrest guide sleeve free end	F1N1-DL4S3144	1
9	Locking end of front headrest guide sleeve	F1N1-DL4S3143	1
10	Backrest Unlock Pull Ring (with Strap and Metal Piece)	F1N1-DL5U8008	1
11	Floor lock unlocking pull ring (with tensile belt + iron plate)	F1N1-DL5U8009	1
12	40% Trim Cover	F1N1-DL5U3060	1
13	Rear Hook	F1N1-DL5U3271	1
14	40% rear outer panel	F1N1-DL5U3061	1
15	40% rear interior guard	F1N1-DL5U3062	1
16	ISOFIX cover	F1N1-DL5U3272	1
17	Back row rear bracket cover	F1N1-DL5U3065	1
18	Connecting rod head cover of rear row	F1N1-DL5U3063	1
19	40% rear foot cover body	F1N1-DL5U3064	1
