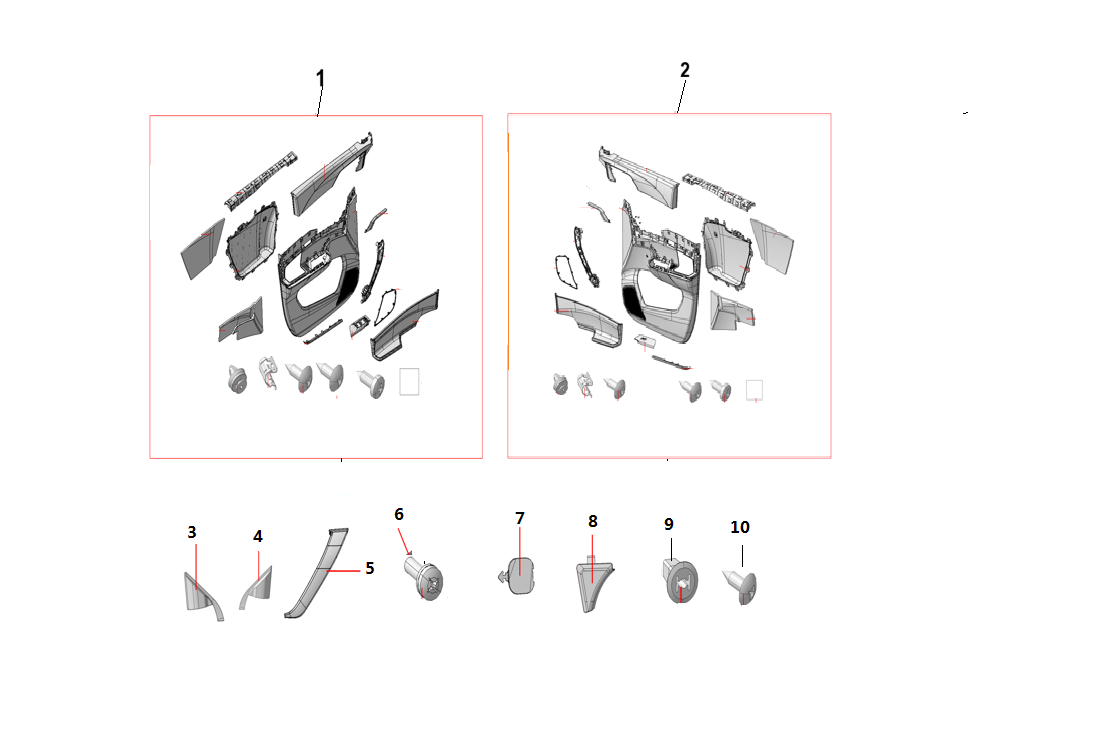

F1T1 - Front door guard module
F1T1 - Front door guard module
SX5KCTQ15T65D05GR24C > Trim system > Front door guard module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left front door guard assembly | F1T1-SX5F-6102250-Y1 | 1 |
| 2 | Right front door guard assembly | F1T1-SX5F-6102260-Y1 | 1 |
| 3 | Left front door triangular window guard plate assembly | F1T1-SX5F-6102510-Y1 | 1 |
| 4 | Right front door triangle window guard plate assembly | F1T1-SX5F-6102520-Y1 | 1 |
| 5 | LF door handle outer cover plate | F1T1-SX5F-6102630-Y1 | 1 |
| 5 | Right front door handle outer cover | F1T1-SX5F-6102640-Y1 | 1 |
| 6 | Cross recessed pan head screw and flat washer assembly | F1T1-Q230B0616F38 | 4 |
| 7 | Front door handle installation point plug cover | F1T1-SX5F-6102051-Y1 | 2 |
| 8 | left front sealing pad | F1T1-SX5-6102051 | 1 |
| 8 | right frong sealing pad | F1T1-SX5-6102052 | 1 |
| 9 | Square plastic screw holder | F1T1-BL338 | 4 |
| 10 | Cross recessed cup head tapping screw with large head | F1T1-Q2735516F38 | 4 |
