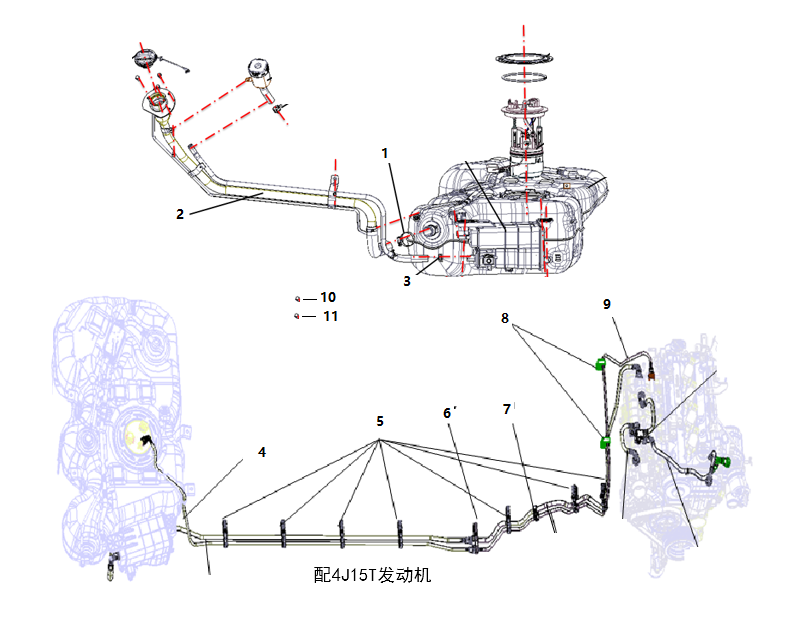

F1T1 - Fuel line and connector module

SX5KCTQ15T65D05GR24C > Engine system > Fuel line and connector module

Rep.	Designation	Reference	Qte/vehicule
1	A-type worm drive hose hoop	F1T1-Q67545F36	1
2	Fueling pipe assembly	F1T1-SX5H-1104010A	1
3	Steel strip type elastic hoop	F1T1-13MA-11011	1
4	Oil delivery pipe assembly (oil rail)	F1T1-SX7H-1104026	1
5	Five-hole pipe clamp	F1T1-SX5H-1104601	7
6	Five-hole pipe clamp	F1T1-SX5H-1104602	1
7	Double pipe clamp	F1T1-SX5H-1104623A	1
8	Double-hole pipe clamp	F1T1-CM3C-1104603	3
9	Oil delivery pipe assembly (pipe clamp - oil rail)	F1T1-SX7H-1104025	1
10	Hexagon bolt, spring washer, flat washer assembly	F1T1-Q1460620F38	3
11	Hexagon nut and tapered elastic washer assembly	F1T1-Q32206F38L	1
