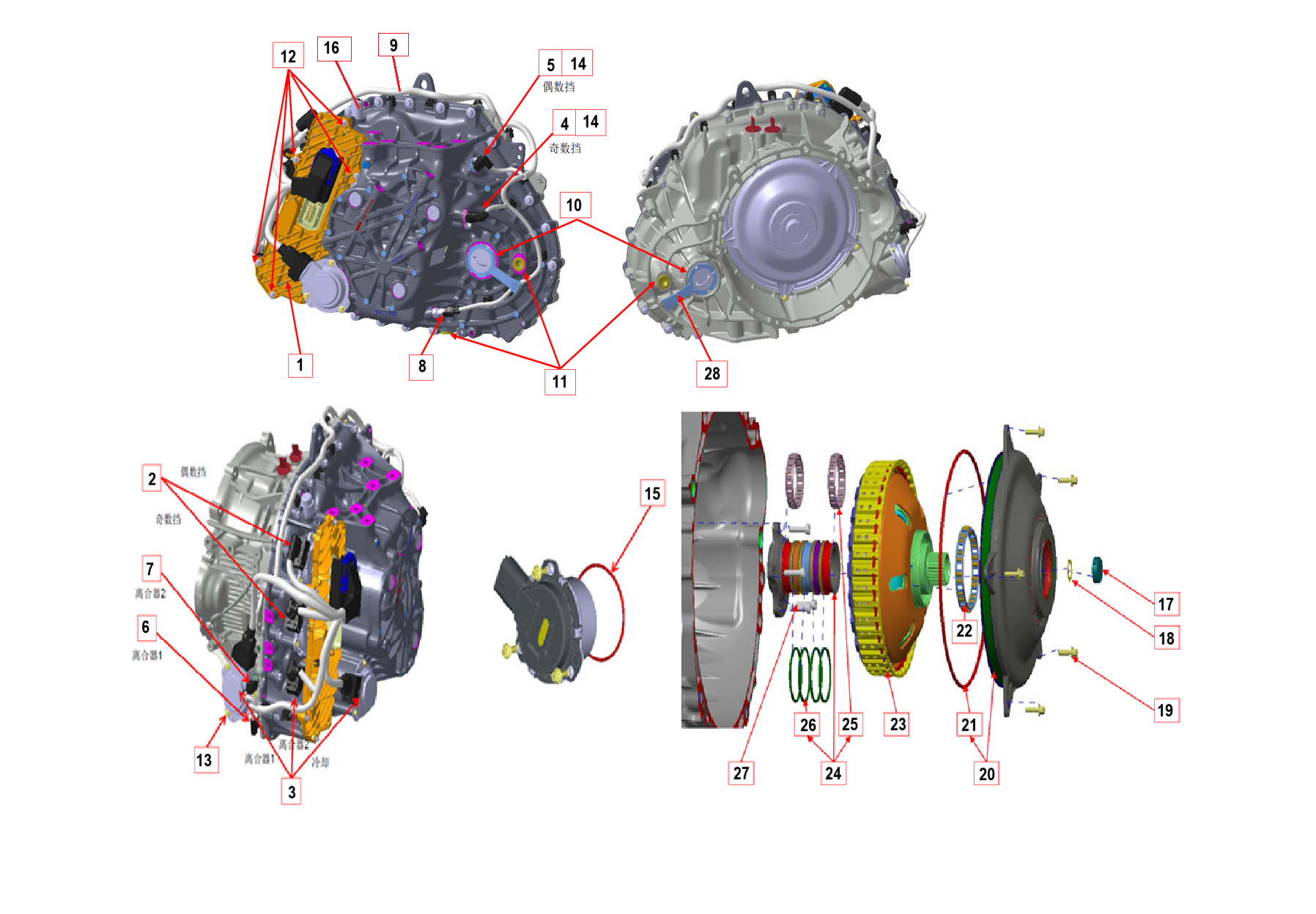

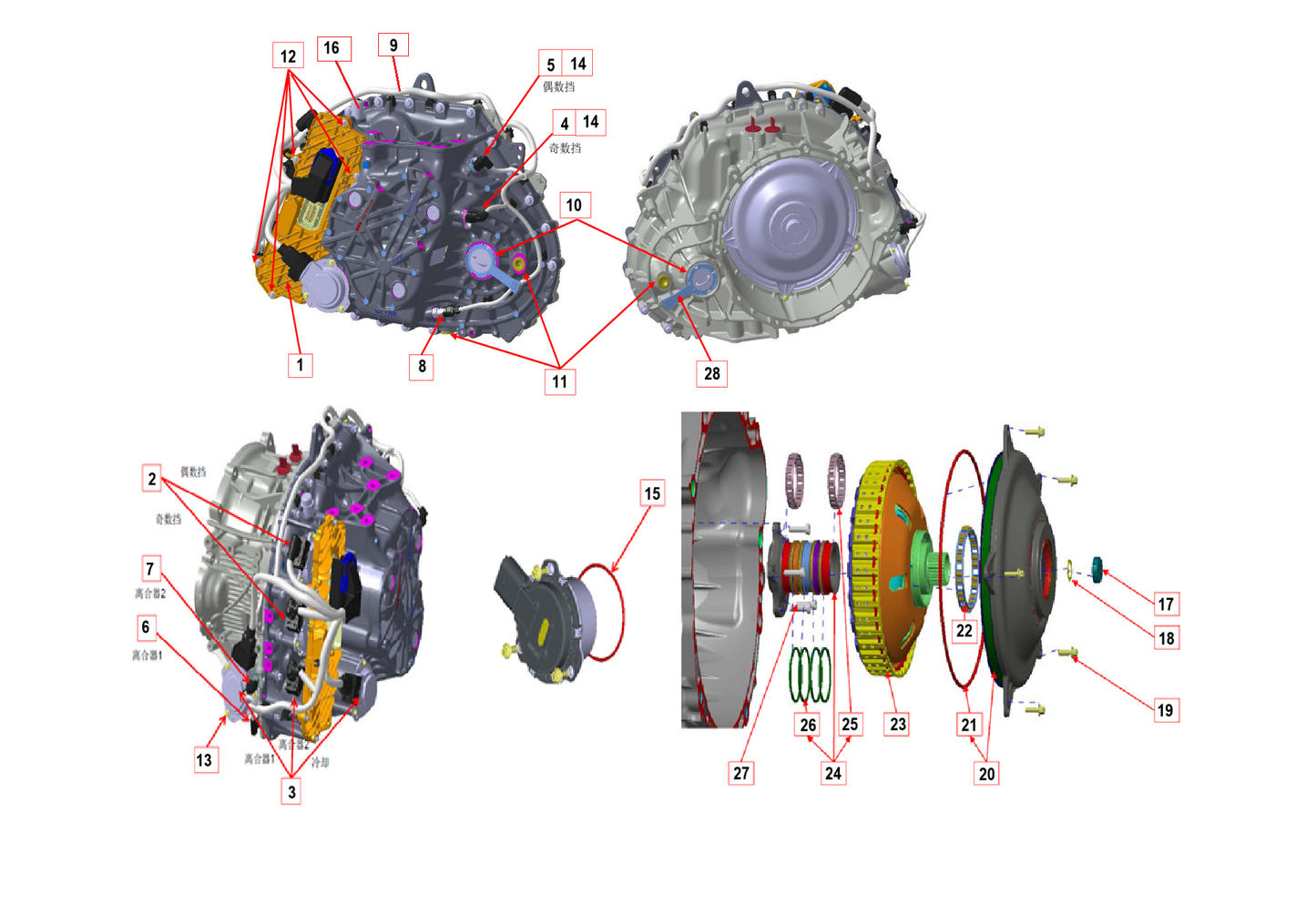

F1T1 - 7DCT300 transmission assembly (virtual undetermined drawing number)

F1T1 - 7DCT300 transmission assembly (virtual undetermined drawing number)

SX5KCTQ15T65D05GR24C > Transmission system > Automatic transmission assembly module > 7DCT300 transmission assembly (virtual undetermined drawing number)

Rep. Designation Reference Qte/vehicule
1 Transmission control unit assembly F1T1-SX7H-1700030-1 1
2 Shift motor F1T1-ND3C-7802-AA /2517255313 2
3 Clutch motor F1T1-2517255213 3
4 Input shaft speed sensor 1 F1T1-2517266300 1
5 Input shaft speed sensor 2 F1T1-2517253301 1
6 Pressure sensor 1 F1T1-2517254501 1
7 Pressure sensor 2 F1T1-2517262301 1
8 Temperature sensor F1T1-2517256601 1
9 Wiring harness F1T1-2517261111 1
10 Axle shaft oil seal F1T1-9009069560 2
11 Oil filling and drain bolt F1T1-9009027315 3
12 Transmission control unit bolt F1T1-9009074510 6
13 Motor bolt F1T1-9009071410 15
14 Speed sensor bolt F1T1-9009066310 2
15 Motor O-ring F1T1-9009084561 5
16 transmission oil F1T1-9009011085 1
17 Seal cover F1T1-2517053901 1
18 Clutch snap ring F1T1-9009092351 1
19 Motor bolt F1T1-9009071410 5
20 Clutch cover assembly F1T1-2510105306 1
21 Clutch cover O-ring F1T1-9009084761 1
22 Clutch cover cylindrical roller bearing F1T1-9009003579 1
23 Wet double clutch assembly F1T1-2510174003 1
24 Clutch support assembly F1T1-2510170100 1
25 Clutch support needle bearing F1T1-2517160400 2
26 Clutch support piston ring F1T1-2517160500 4
27 Clutch support bolt F1T1-9009044211 6
28 Oil seal of axle shaft protective sleeve F1T1-9009024507 2
