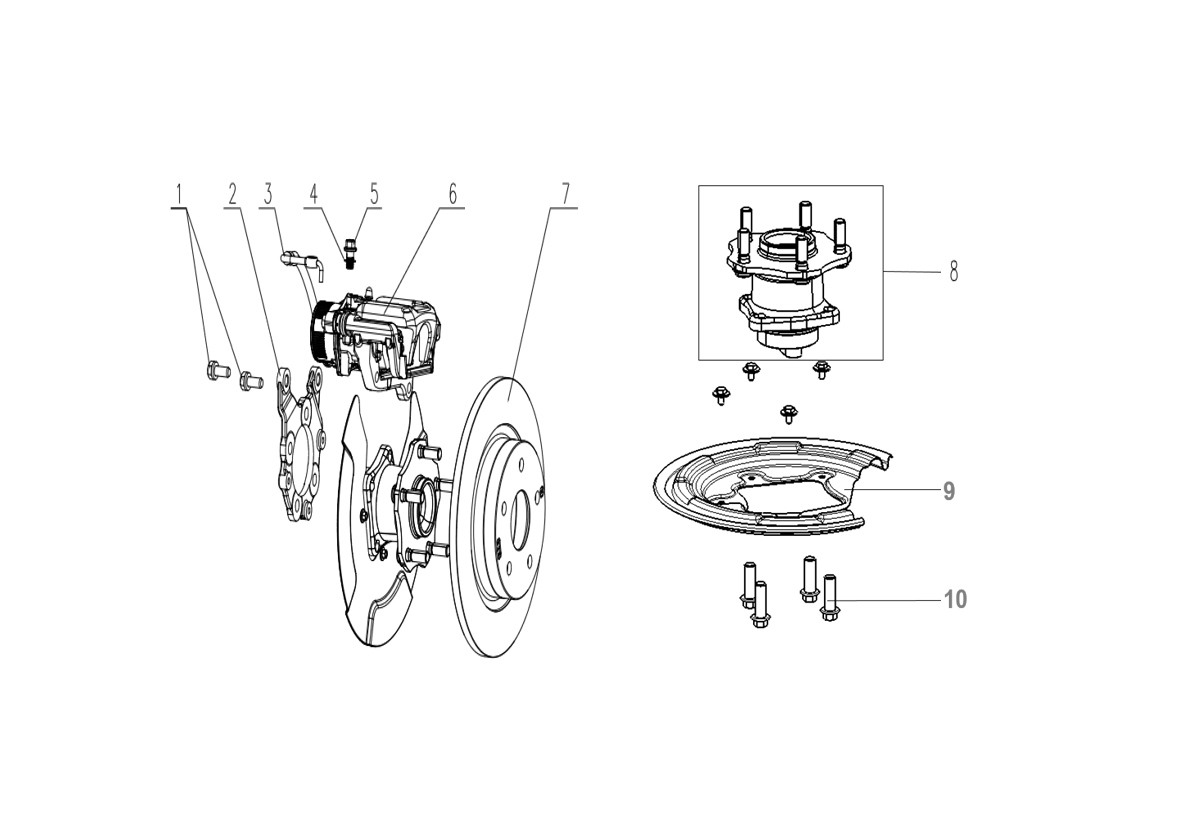

F1T1 - Rear brake assembly module
F1T1 - Rear brake assembly module
SX5KCTQ15T65D05GR24C > Braking System > Rear brake assembly module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Rear caliper mounting fixing bolt | F1T1-B20-3502012 | 4 |
| 2 | Left rear brake caliper mounting support | F1T1-SX5F-3502511B | 1 |
| 2 | Right rear brake caliper mounting support | F1T1-SX5F-3502512B | 1 |
| 3 | Left rear caliper brake hose | F1T1-SX5-3561030 | 1 |
| 3 | Right rear caliper brake hose | F1T1-SX5-3561020 | 1 |
| 4 | Copper pad | F1T1-CM7C-3506082 | 4 |
| 5 | Hollow bolt | F1T1-CM7C-3506081 | 2 |
| 6 | Left electronic parking brake caliper assembly | F1T1-SX3A-3502010C | 1 |
| 6 | Right electronic parking brake caliper assembly | F1T1-SX3A-3502020C | 1 |
| 7 | Rear brake disc | F1T1-SX3A-3502210 | 2 |
| 8 | Bearing unit assembly of rear hub | F1T1-SX5-3104020A | 2 |
| 9 | Rear mudguard (left) | F1T1-SX7A-3104011 | 1 |
| 9 | Rear mudguard (right) | F1T1-SX7A-3104012 | 1 |
| 10 | Rear hub mounting bolt | F1T1-SX5-3104015 | 8 |
