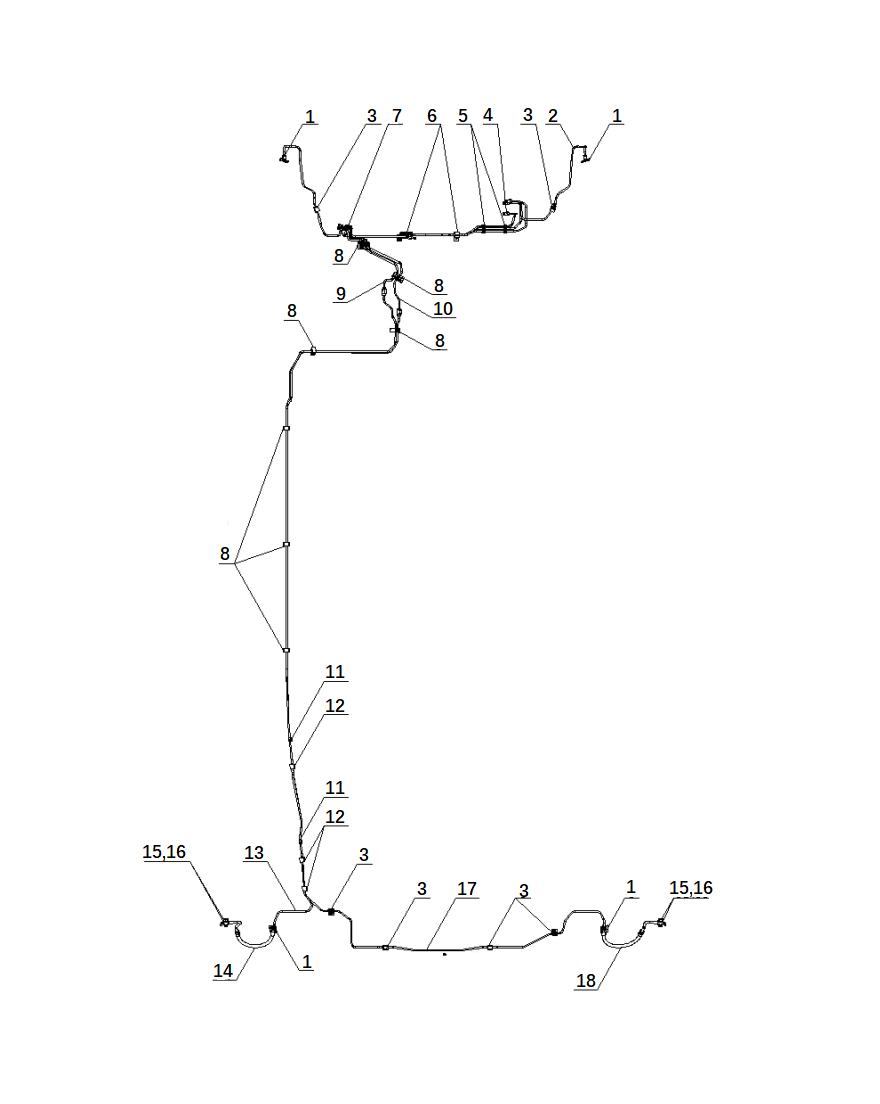

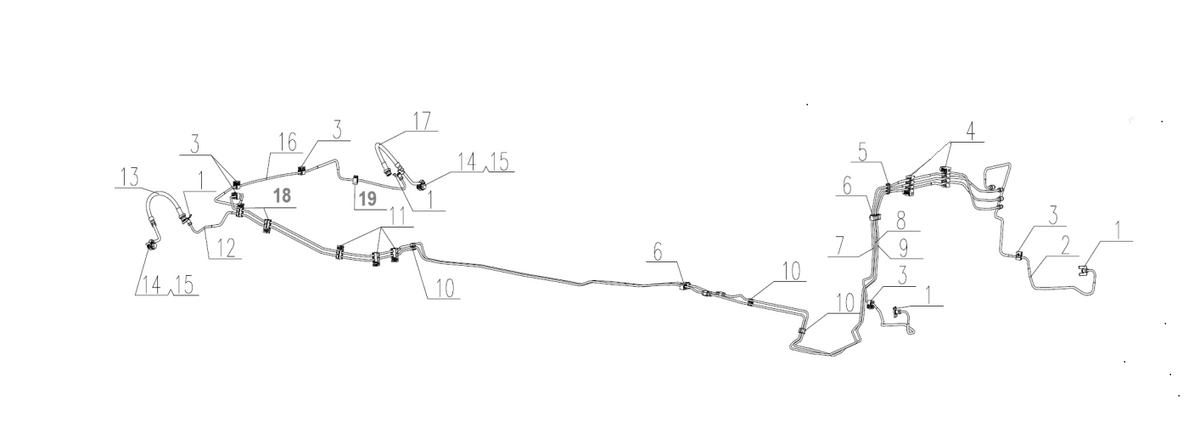

F1F2 - BRAKE TUBING MODULE
F1F2 - BRAKE TUBING MODULE
SX5GREEVA15D65C05GZ25C > Braking System > Brake tubing module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | hose card | F1F2-35MA-06073 | 4 |
| 2 | Brake steel pipe (FL) | F1F2-SX5G-3506710 | 1 |
| 3 | Single pipe clamp | F1F2-35MA-06081 | 6 |
| 4 | Three-tube clamp | F1F2-SX5G-3506101 | 2 |
| 5 | Three-pipe clamp | F1F2-35MA-06086 | 2 |
| 6 | Three-hole pipe clamp | F1F2-B-3506103 | 1 |
| 7 | Brake steel pipe (FR) | F1F2-SX5G-3506720 | 1 |
| 8 | Brake steel pipe (front section of RR) | F1F2-SX5G-3506760 | 1 |
| 9 | Brake steel pipe (front section of RL) | F1F2-SX5G-3506750 | 1 |
| 10 | Double pipe clamp | F1F2-A13-3506711 | 3 |
| 11 | Double pipe clamp | F1F2-T5EV-3506101S | 8 |
| 12 | Brake steel pipe (RR back end) | F1F2-SX5G-3506780 | 1 |
| 13 | Right rear hose at rear caliper end assembly | F1F2-SX5G-3561060 | 1 |
| 14 | Hollow bolt | F1F2-CM7C-3506081 | 2 |
| 15 | Copper pad | F1F2-CM7C-3506082 | 4 |
| 16 | Brake steel pipe (RL rear section) | F1F2-SX5G-3506770 | 1 |
| 17 | Left rear hose at rear caliper end assembly | F1F2-SX5G-3561050 | 1 |
| 18 | Double pipe clamp | F1F2-CM5P-3506102 | 4 |
| 19 | Double pipe clamp | F1F2-F600L-3506012 | 1 |
