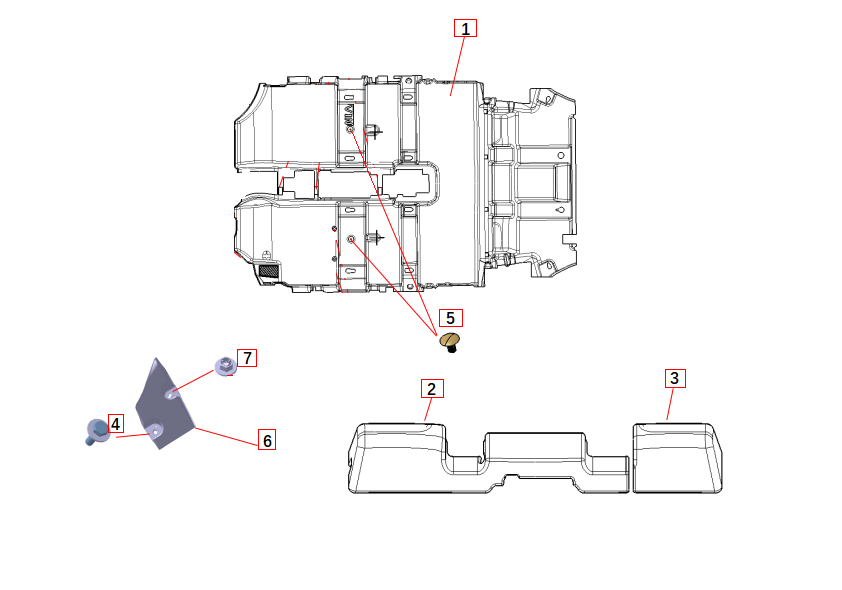

F1F2 - CARPET MODULE

SX5GREEVA15D65C05GZ25C > Trim system > Carpet module

Rep.	Designation	Reference	Qte/vehicule
1	Front carpet assembly	F1F2-SX5G-5109050C-Y1	1
2	Backseat carpet support pad-left side	F1F2-SX5G-5110517B	1
3	Carpet support, lower right, rear seat	F1F2-SX5G-5110518B	1
4	Hex head bolt and L-flat washer assembly	F1F2-Q140B0620F38L	1
5	Blade snap	F1F2-BL1089A7	2
6	Rest board support (EV version)	F1F2-SX5G-5109023S	1
7	Hexagon flanged nut	F1F2-Q32006F36	1
8	Sound insulation pad under spare wheel	F1F2-SX5G-5109230	1

Price on request

CHF 0.01

In offerta Esaurito

Number 1 : Front carpet assembly 2 : Backseat carpet support pad-left side 3 : Carpet support, lower right, rear seat 4 : Hex head bolt and L-flat washer assembly 5 : Blade snap 6 : Rest board support (EV version) 7 : Hexagon flanged nut 8 : Sound insulation pad under spare wheel
