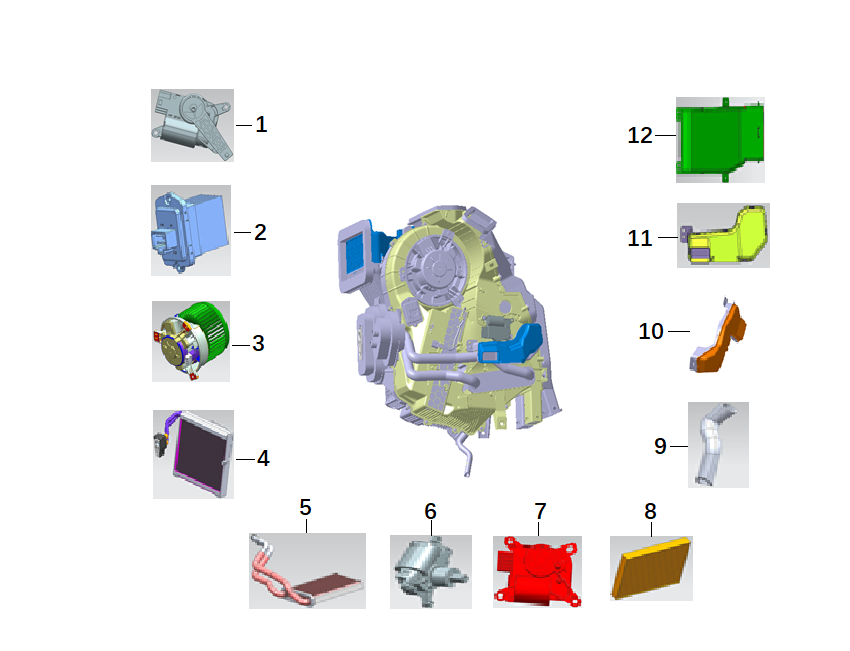

F1F2 - ELECTRIC HVAC ASSEMBLY
F1F2 - ELECTRIC HVAC ASSEMBLY
SX5GREEVA15D65C05GZ25C > Air Conditioning System > Air conditioning unit module > Electric HVAC assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Internal and external air actuators | F1F2-J1502-41860 | 1 |
| 2 | Speed regulation module assembly | F1F2-J1542-40310 | 1 |
| 3 | Fan assembly (Blower assembly) | F1F2-J1500-10620 | 1 |
| 4 | Evaporator assembly | F1F2-J1700-10981 | 1 |
| 5 | Heat exchanger assembly | F1F2-J1710-10250 | 1 |
| 6 | Left temperature actuator assembly | F1F2-J1502-41910 | 1 |
| 7 | Mode actuator assembly | F1F2-J1502-41920 | 1 |
| 8 | Air conditioning filter | F1F2-J1186-40111 | 1 |
| 9 | Drain pipe | F1F2-J1411-40431 | 1 |
| 10 | Foot air duct assembly,RH | F1F2-J1151-10559 | 1 |
| 11 | Foot air duct assembly,left | F1F2-J1170-10990 | 1 |
| 12 | Rear upper outlet shell assembly | F1F2-J1155-12069 | 1 |
