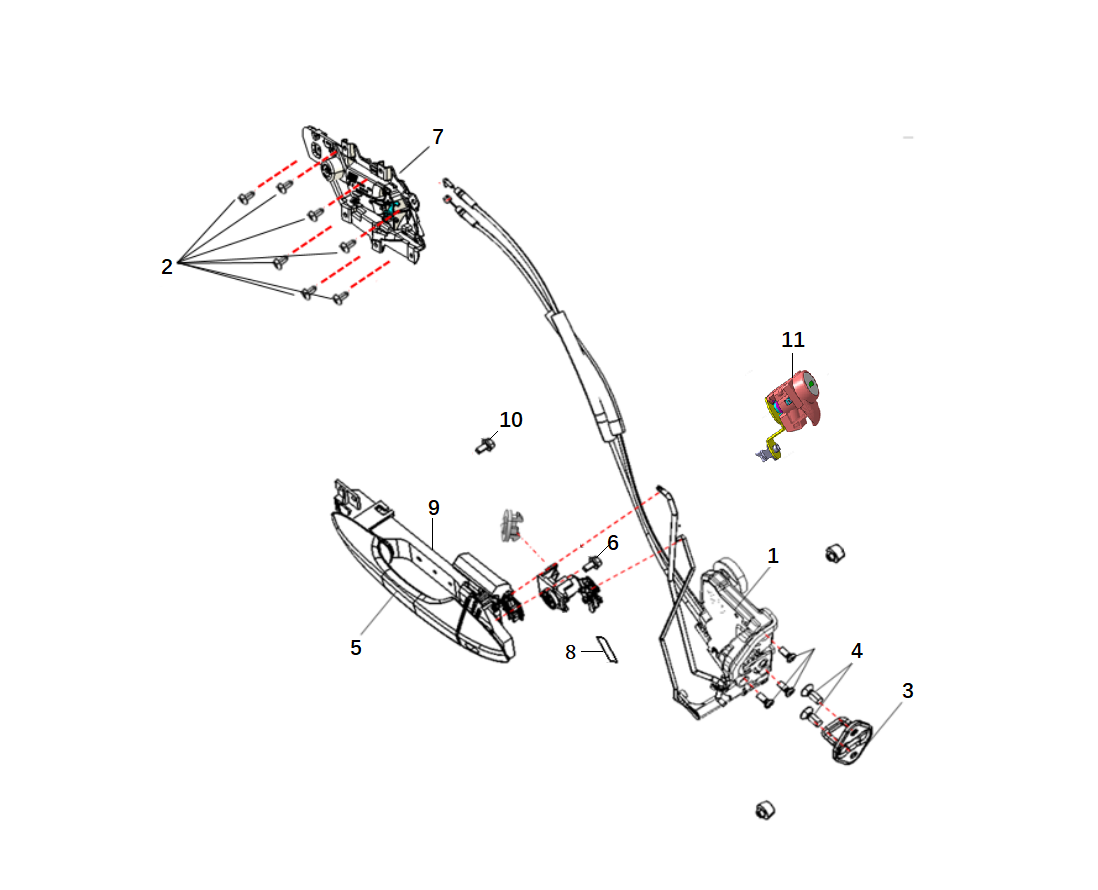

F1F2 - FRONT DOOR LOCK BODY HANDLE MODULE
F1F2 - FRONT DOOR LOCK BODY HANDLE MODULE
SX5GREEVA15D65C05GZ25C > Door and cover accessories > Front door lock body handle module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | LF door lock body and fastener assembly | F1F2-SX5G-6105011 | 1 |
| 1 | RF door lock body and fastener assembly | F1F2-SX5G-6105010 | 1 |
| 2 | Cross recessed cup head tapping screw with large head | F1F2-Q2734813F38 | 8 |
| 3 | Side door lock assembly | F1F2-SX5G-6105310 | 4 |
| 4 | Hexagon socket countersunk head screws | F1F2-Q2580820F36 | 4 |
| 5 | Handle assembly of right side door outer handle | F1F2-SX5G-6105214L | 1 |
| 5 | Left front door outer handle assembly | F1F2-SX5G-6105415A1L | 1 |
| 5 | Left rear door outer handle handle assembly | F1F2-SX5G-6205215L | 1 |
| 6 | Door lock fastening bolt | F1F2-SX5G-6105301A | 8 |
| 7 | Left door lock inner opening handle assembly | F1F2-SX5G-6105221A | 1 |
| 7 | Right side inner opening handle assembly | F1F2-SX5G-6105220A | 1 |
| 8 | Front non-woven fabric | F1F2-BS3-5306134B | 2 |
| 9 | Left exterior door handle base assembly | F1F2-SX5G-6105225L | 1 |
| 9 | Right exterior door handle base assembly | F1F2-SX5G-6105224L | 1 |
