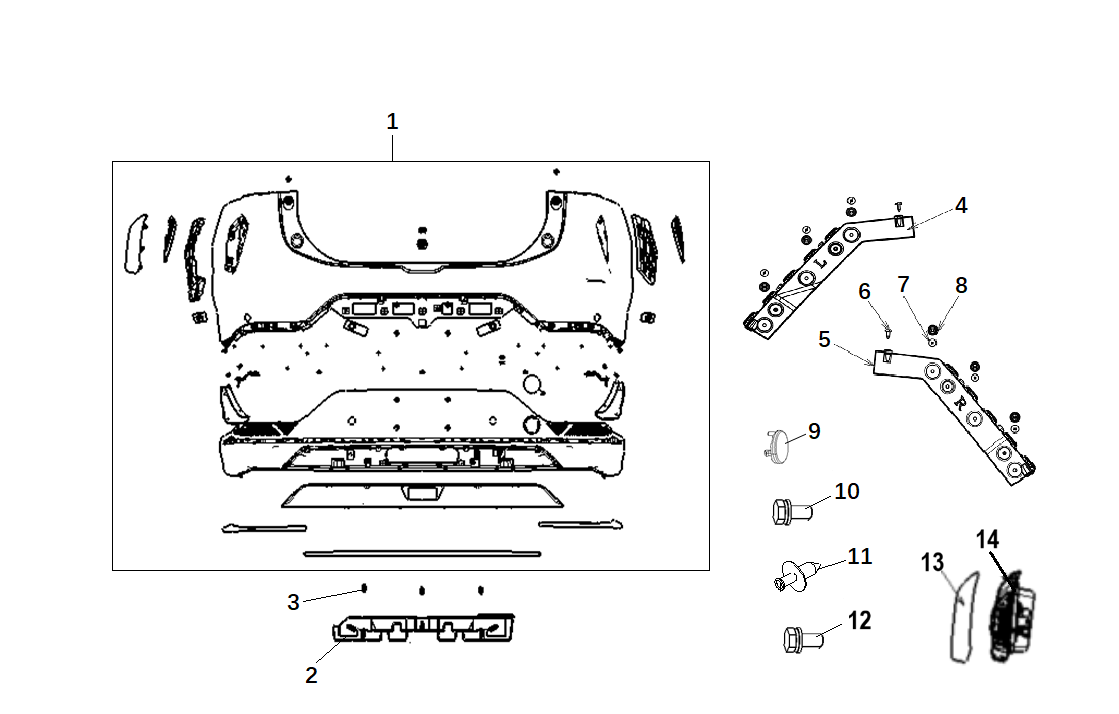

F1F2 - REAR BUMPER MODULE
F1F2 - REAR BUMPER MODULE
SX5GREEVA15D65C05GZ25C > Trim system > Rear bumper module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Rear bumper assembly | F1F2-SX5G-2804990S | 1 |
| 2 | Rear bumper foam block | F1F2-SX5G-2804552 | 1 |
| 3 | Metal card | F1F2-C20-2804543 | 3 |
| 4 | Rear bumper left bracket 1 | F1F2-SX5G-2804531C | 1 |
| 5 | Rear bumper right bracket 1 | F1F2-SX5G-2804532C | 1 |
| 6 | Cross recessed cup head tapping screw with large head | F1F2-Q2734816F38 | 2 |
| 7 | Cross recessed cup head tapping screw with large head | F1F2-Q2735516F38 | 6 |
| 8 | Square hole self-tapping nut buckle | F1F2-BL338B | 6 |
| 9 | Rear bumper screw cover | F1F2-SX5-2804515 | 2 |
| 10 | Hexagon bolt, spring washer, flat washer assembly | F1F2-LQ146B0616TF38 | 2 |
| 11 | Snap fastener | F1F2-BL611 | 4 |
| 12 | Hex head bolt and L-flat washer assembly | F1F2-Q140B0620F38L | 2 |
| 13 | Charging port cover assembly | F1F2-SX5G-2803850B | 1 |
| 14 | Charging port cover outer cover plate | F1F2-SX5G-2803851S | 1 |
Prezzo di listino
CHF 2,811.60
Prezzo di listino
Prezzo scontato
CHF 2,811.60
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
Manufacturer :
Forthing
Article Nr. :
SKU:F1F2-SX5G-2804990S
