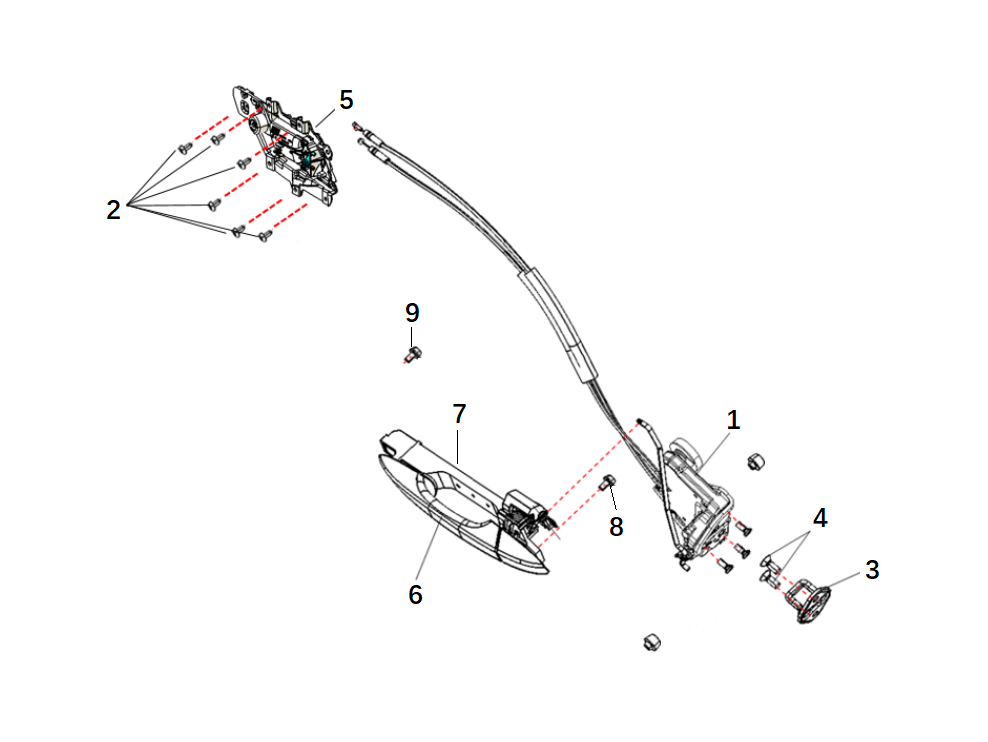

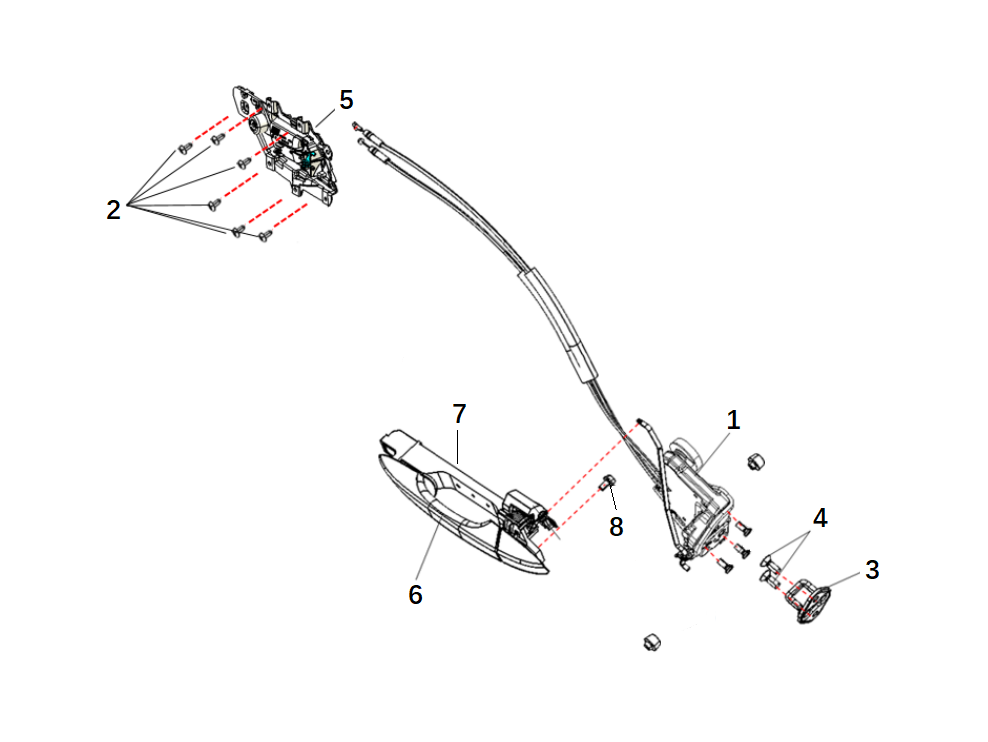

F1F2 - REAR DOOR LOCK BODY HANDLE MODULE
F1F2 - REAR DOOR LOCK BODY HANDLE MODULE
SX5GREEVA15D65C05GZ25C > Door and cover accessories > Rear door lock body handle module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | RR side door lock and fastener assembly (mechanical child protection) | F1F2-SX5G-6205010 | 1 |
| 1 | Rear left door side door lock and fastener assembly (mechanical child protection) | F1F2-SX5G-6205011 | 1 |
| 2 | Cross recessed cup head tapping screw with large head | F1F2-Q2734813F38 | 8 |
| 3 | Side door lock assembly | F1F2-SX5G-6105310 | 4 |
| 4 | Hexagon socket countersunk head screws | F1F2-Q2580820F36 | 4 |
| 5 | Left door lock inner opening handle assembly | F1F2-SX5G-6105221A | 1 |
| 5 | Right side inner opening handle assembly | F1F2-SX5G-6105220A | 1 |
| 6 | Handle assembly of right side door outer handle | F1F2-SX5G-6105214L | 1 |
| 6 | Left rear door outer handle handle assembly | F1F2-SX5G-6205215L | 1 |
| 7 | Left exterior door handle base assembly | F1F2-SX5G-6105225L | 1 |
| 7 | Right exterior door handle base assembly | F1F2-SX5G-6105224L | 1 |
| 8 | Door lock fastening bolt | F1F2-SX5G-6105301A | 8 |
Prezzo di listino
CHF 231.00
Prezzo di listino
Prezzo scontato
CHF 231.00
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
Manufacturer :
Forthing
Article Nr. :
SKU:F1F2-SX5G-6205010
