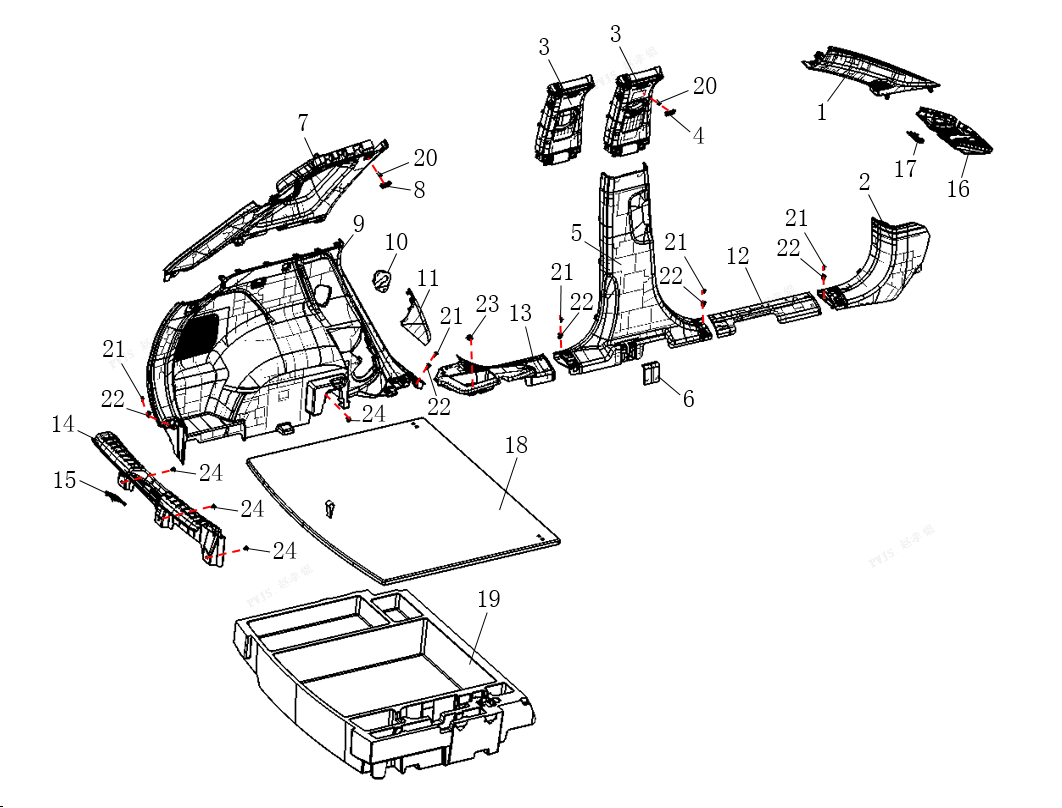

F1F2 - SIDE GUARD PANEL MODULE
F1F2 - SIDE GUARD PANEL MODULE
SX5GREEVA15D65C05GZ25C > Trim system > Side guard panel module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left A-pillar upper guard plate assembly | F1F2-SX5G-5402110B-Y3 | 1 |
| 1 | Right A-pillar upper guard plate assembly | F1F2-SX5G-5402120B-Y3 | 1 |
| 2 | Lower panel assembly of left A pillar | F1F2-SX5GEV-5402170-Y2 | 1 |
| 2 | Right A-pillar lower guard plate assembly | F1F2-SX5GEV-5402180-Y2 | 1 |
| 3 | Upper panel assembly of right B pillar | F1F2-SX5G-5402220B-Y3 | 1 |
| 3 | upper panel assembly of left B pillar | F1F2-SX5G-5402210B-Y3 | 1 |
| 4 | Air curtain plug cover of left B pillar (with lettering) | F1F2-SX5G-5402223-Y3 | 1 |
| 4 | Air curtain plug cover of right B pillar (with lettering mark) | F1F2-SX5G-5402224-Y3 | 1 |
| 5 | Left B-pillar lower guard plate assembly | F1F2-SX5G-5402270C-Y2 | 1 |
| 5 | Right B-pillar lower guard plate assembly | F1F2-SX5G-5402280C-Y2 | 1 |
| 6 | Lower panel of B pillar plug cover | F1F2-SX5G-5402253B-Y2 | 2 |
| 7 | Left C pillar upper guard assy | F1F2-SX5G-5402330-Y3 | 1 |
| 7 | Right C pillar upper guard assy | F1F2-SX5G-5402340-Y3 | 1 |
| 8 | C-pillar air curtain plug cover (with word mark) | F1F2-SX5G-5402317-Y3 | 1 |
| 8 | Right C pillar air curtain plug cover (with word mark) | F1F2-SX5G-5402318-Y3 | 1 |
| 9 | Left C pillar lower guard board assembly | F1F2-SX5G-5402370B-Y2 | 1 |
| 9 | Right C-pillar lower guard plate assembly | F1F2-SX5G-5402380B-Y2 | 1 |
| 10 | Backrest of rear seat hook plug cover-left | F1F2-SX5G-5402361-Y2 | 1 |
| 10 | Hook plug cover of rear seat back-right | F1F2-SX5G-5402362-Y2 | 1 |
| 11 | left C pillar seat cover | F1F2-SX5G-5402363-Y2 | 1 |
| 11 | right C Pillar seat cover | F1F2-SX5G-5402364-Y2 | 1 |
| 12 | Panel of LF door threshold assembly | F1F2-SX5GEV-5402410-Y2 | 1 |
| 12 | Panel of RF door threshold assembly | F1F2-SX5GEV-5402420-Y2 | 1 |
| 13 | Left rear sill guard assembly | F1F2-SX5G-5402510B-Y2 | 1 |
| 13 | Right rear sill guard assembly | F1F2-SX5G-5402520B-Y2 | 1 |
| 14 | Panel of trunk lid threshold assembly | F1F2-SX5G-5602020-Y2 | 1 |
| 15 | Back door latch cover plate | F1F2-SX5G-5602012-Y2 | 1 |
| 16 | Interior rearview mirror cover plate assembly | F1F2-SX5GEV-5402910-Y1 | 1 |
| 17 | Inside mirror plug | F1F2-SX5GEV-5402913-Y1 | 1 |
| 18 | Luggage cover assembly | F1F2-SX5G-5109120BS | 1 |
| 19 | Luggage lid support | F1F2-SX5GREEV-5402960C | 1 |
| 20 | Cross recessed pan head screws | F1F2-Q2140616F38 | 4 |
| 21 | Cross recessed cup head tapping screw with large head | F1F2-Q2734816F38 | 10 |
| 22 | Battery baffle | F1F2-SX5GREEV-5402966S | 1 |
| 23 | Plastic nut | F1F2-BL929A1 | 2 |
| 23 | Square hole self-tapping nut buckle | F1F2-BL338B | 10 |
| 24 | Snap fastener | F1F2-BL611 | 5 |
Prezzo di listino
CHF 64.55
Prezzo di listino
Prezzo scontato
CHF 64.55
Prezzo unitario
/
per
Impossibile caricare la disponibilità di ritiro
Manufacturer :
Forthing
Article Nr. :
SKU:F1F2-SX5G-5402110B-Y3
