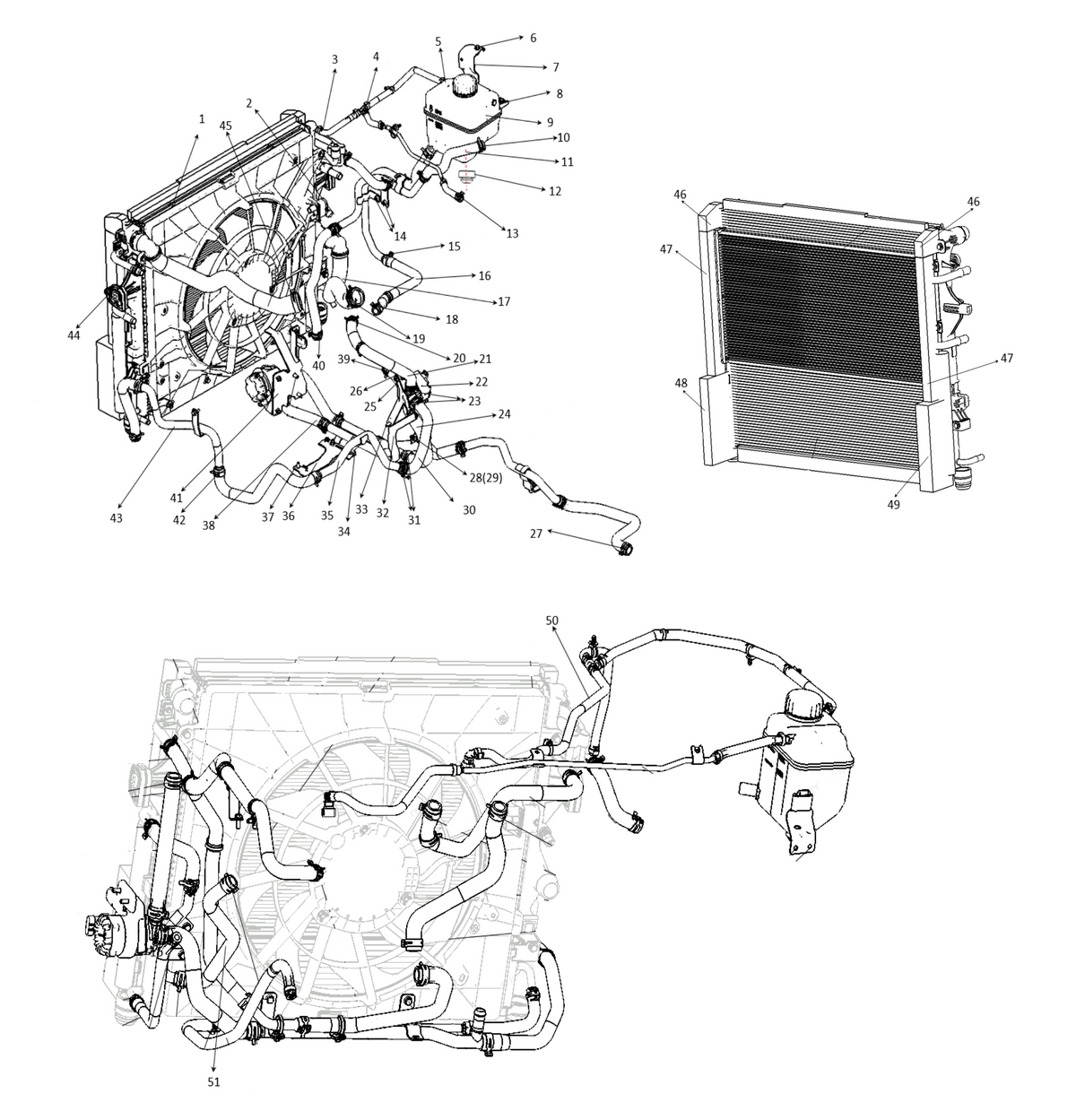

F1N1 - COOLING MODULE
F1N1 - COOLING MODULE
M6A15D65B17SR24 > Engine system > Cooling module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Cooling module assembly | F1N1-M6-1300600S | 1 |
| 2 | Water temperature sensor | F1N1-S50EV-2127062 | 1 |
| 3 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 4 | Hexagon flange bolt | F1N1-Q1840816F38 | 1 |
| 5 | Single-ear stepless hoop | F1N1-A-1104028A2 | 1 |
| 6 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 7 | Expansion tank bracket 2 | F1N1-M6-1311150S | 1 |
| 8 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 9 | Expansion tank assembly | F1N1-SX5G-1311050 | 1 |
| 10 | Steel strip elastic hose clip hoop | F1N1-Q673C25F62 | 1 |
| 11 | Engine supplementary water pipe assembly | F1N1-M6-1303650S1 | 1 |
| 12 | Expansion tank gasket | F1N1-B-1311106 | 1 |
| 13 | Steel strip elastic hose clip hoop | F1N1-Q673C17F62 | 1 |
| 14 | Hexagon flanged nut | F1N1-Q32006F38 | 1 |
| 15 | Steel strip elastic hose clip hoop | F1N1-Q673C25F62 | 1 |
| 16 | Engine water supply pipe | F1N1-M6-2127970S | 1 |
| 17 | Radiator outlet hose | F1N1-M6-1303620S1 | 1 |
| 18 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 19 | Steel strip elastic hose clip hoop | F1N1-Q673C46F62 | 1 |
| 20 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 21 | Warm water outlet pipe of engine | F1N1-M6-2127420S2 | 1 |
| 22 | Four-way water valve | F1N1-M6-2127580 | 1 |
| 23 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 24 | Cooling hose (four-way valve-water pump) | F1N1-M6-2127790S | 1 |
| 25 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 26 | Cooling hose (four-way valve-engine) | F1N1-M6-2127770S1 | 1 |
| 27 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 28 | Water pipe support 3 | F1N1-M6-2127940S | 1 |
| 29 | Hexagon bolt, spring washer, flat washer assembly | F1N1-Q1460612F38 | 1 |
| 30 | Cooling hose (four-way valve-PTC) | F1N1-M6-2127780S | 1 |
| 31 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 32 | Four-way water valve support | F1N1-M6-2127860S1 | 1 |
| 33 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 34 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 35 | Cooling pipe (engine-PTC) | F1N1-M6-2127360S2 | 1 |
| 36 | Support Ⅱfor water pipe | F1N1-M6-2127930S1 | 1 |
| 37 | Hexagon flange bolts-enlarged series | F1N1-Q1860616F38 | 1 |
| 38 | Heater water pump inlet and outlet pipe assembly | F1N1-M6-2127910S | 1 |
| 39 | Steel strip elastic hose clip hoop | F1N1-Q673C23F62 | 1 |
| 40 | Steel strip elastic hose clip hoop | F1N1-Q673C25F62 | 1 |
| 41 | Electric water pump bracket | F1N1-M6-1307060S | 1 |
| 42 | Steel strip elastic hose clip hoop | F1N1-Q673C27F62 | 1 |
| 43 | Cooling pipe (PTC-two-way valve) | F1N1-M6-2127440S3 | 1 |
| 44 | Upper suspension of radiator | F1N1-M6-1302101S | 1 |
| 45 | Steel strip elastic hose clip hoop | F1N1-Q673C46F62 | 1 |
| 46 | Upper seal sponge II | F1N1-M6-1301014 | 1 |
| 47 | Top sealing sponge one | F1N1-M6-1301013 | 1 |
| 48 | Seal under sponge two | F1N1-M6-1301012 | 1 |
| 49 | Lower sealing sponge one | F1N1-M6-1301011 | 1 |
| 50 | Supercharger outlet pipe | F1N1-M6-1303720S | 1 |
| 51 | Radiator inlet hose | F1N1-M6-1303610S1 | 1 |
