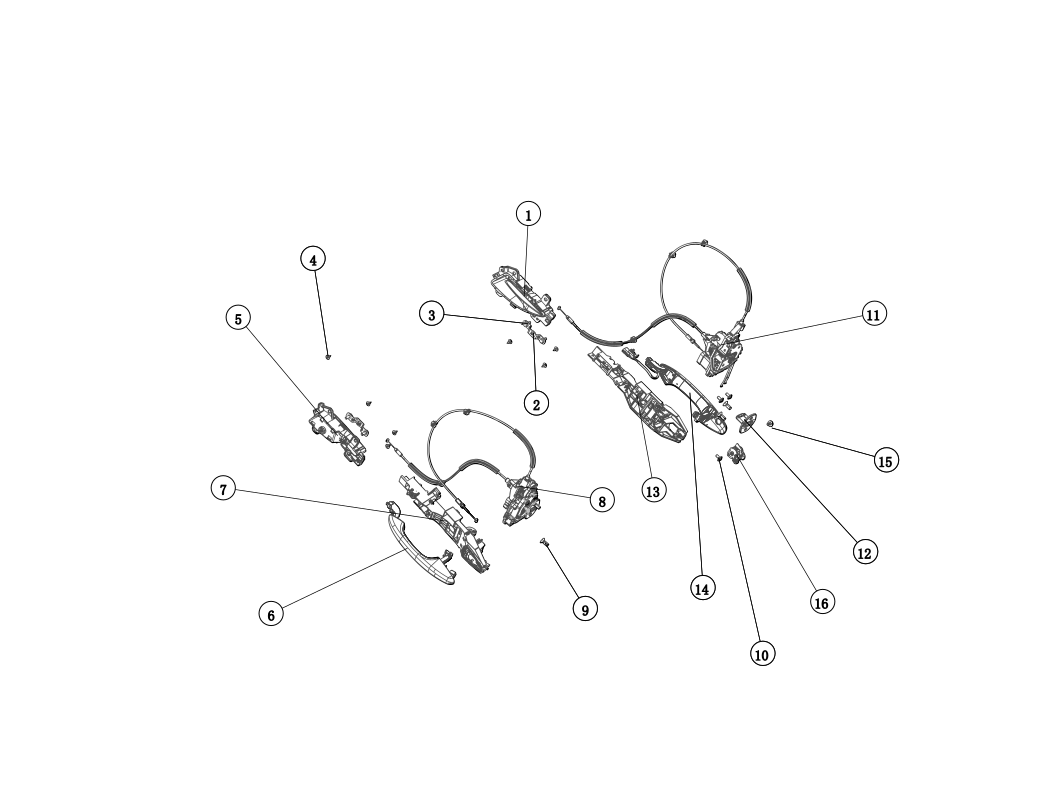

F1N1 - FRONT DOOR LOCK BODY HANDLE MODULE

M6A15D65B17SR24 > Door and cover accessories > Front door lock body handle module

Rep.	Designation	Reference	Qte/vehicule
1	Outer handle assembly of LF door lock	F1N1-M6-6105411A1S	1
1	Right front door lock outer opening handle assembly	F1N1-M6-6105410A1S	1
2	Cross recessed cup head tapping screw with large head	F1N1-Q2734813F38	8
3	Left door lock inner opening handle assembly	F1N1-SX5G-6105221A	1
3	Right side inner opening handle assembly	F1N1-SX5G-6105220A	1
4	Right front door lock body complete	F1N1-M6-6105010	1
4	Total length of left front door lock body	F1N1-M6-6105011	1
5	Cross recessed pan head tapping screw and flat washer assembly	F1N1-Q220B5522	2
6	Plastic nut	F1N1-BL333	2
7	Side door lock assembly	F1N1-SX5G-6105310	2
8	Door lock fastening bolt	F1N1-SX5G-6105301A	6
9	Hexagon socket countersunk head screws	F1N1-Q2580820F36	4
