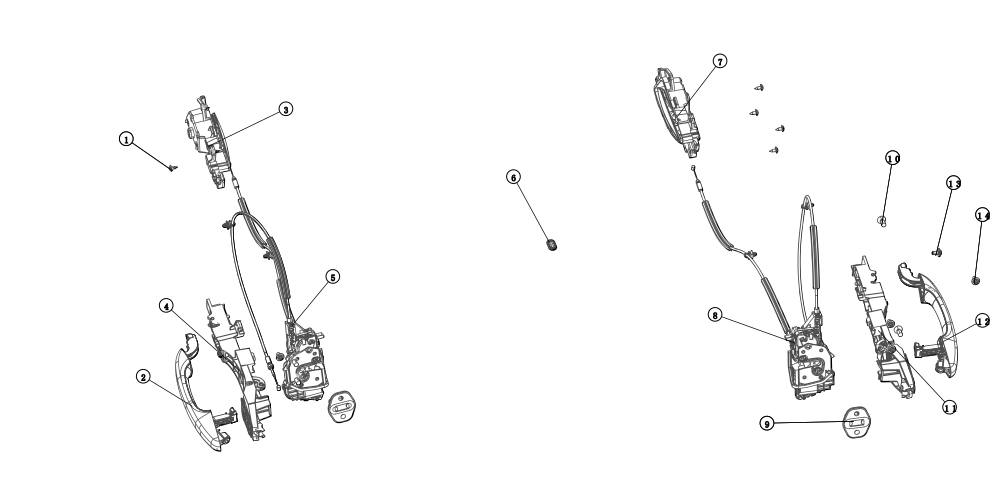

F1N1 - REAR DOOR LOCK BODY HANDLE MODULE

M6A15D65B17SR24 > Door and cover accessories > Rear door lock body handle module

Rep.	Designation	Reference	Qte/vehicule
1	Plastic nut	F1N1-BL333	2
2	Cross recessed pan head tapping screw and flat washer assembly	F1N1-Q220B5522	2
3	External opening cable	F1N1-M6-6205041	1
4	Right rear door lock outer opening handle assembly	F1N1-M6-6205510B1	1
5	Right side sliding door front lock assembly	F1N1-M6-6205060	1
6	Anti-pinching adhesive strip for right sliding door	F1N1-M6-6205640	1
7	Flexible identification of electric sliding door	F1N1-M6-6205991	2
8	Right sliding door drive mechanism assembly	F1N1-M6-6205030B	1
9	Right side sliding door lock assembly	F1N1-M6-6205010B	1
10	Hexagon flanged nut	F1N1-Q32006F36	6
10	Hexagon flanged nut	F1N1-Q32006F36	8
10	Hexagon flanged nut	F1N1-Q32006F36	8
11	Right sliding door full opening limit lock catch	F1N1-M6-6205620	1
12	Hexagon bolt, spring washer, flat washer assembly	F1N1-Q1460616F38	8
13	Left sliding door drive mechanism assembly	F1N1-M6-6205031B	1
14	Hexagon socket countersunk head screws	F1N1-Q2580820F36	8
15	Door lock fastening bolt	F1N1-SX5G-6105301A	14
16	Right drive unit and wheel assembly	F1N1-M6-6205020	1
17	Left drive unit and wheel assembly	F1N1-M6-6205021BL	1
18	Side sliding door rear lock latch assembly	F1N1-M6-6205110S1	2
19	Left side sliding door rear lock assembly	F1N1-M6-6205011B	1
20	Square hole self-tapping nut buckle	F1N1-BL338B	4
21	Left sliding door full opening limit lock latch	F1N1-M6-6205610	1
22	Cross recessed cup head tapping screw with large head	F1N1-Q2735516F38	4
23	Outer unlocking handle assembly of left rear door lock	F1N1-M6-6205511B1	1
24	Lock assembly of left sliding door	F1N1-M6-6205061	1
25	Side sliding door front lock latch assembly	F1N1-M6-6205310S1	2
26	anti-pinching adhesive strip for left sliding door	F1N1-M6-6205641	1
