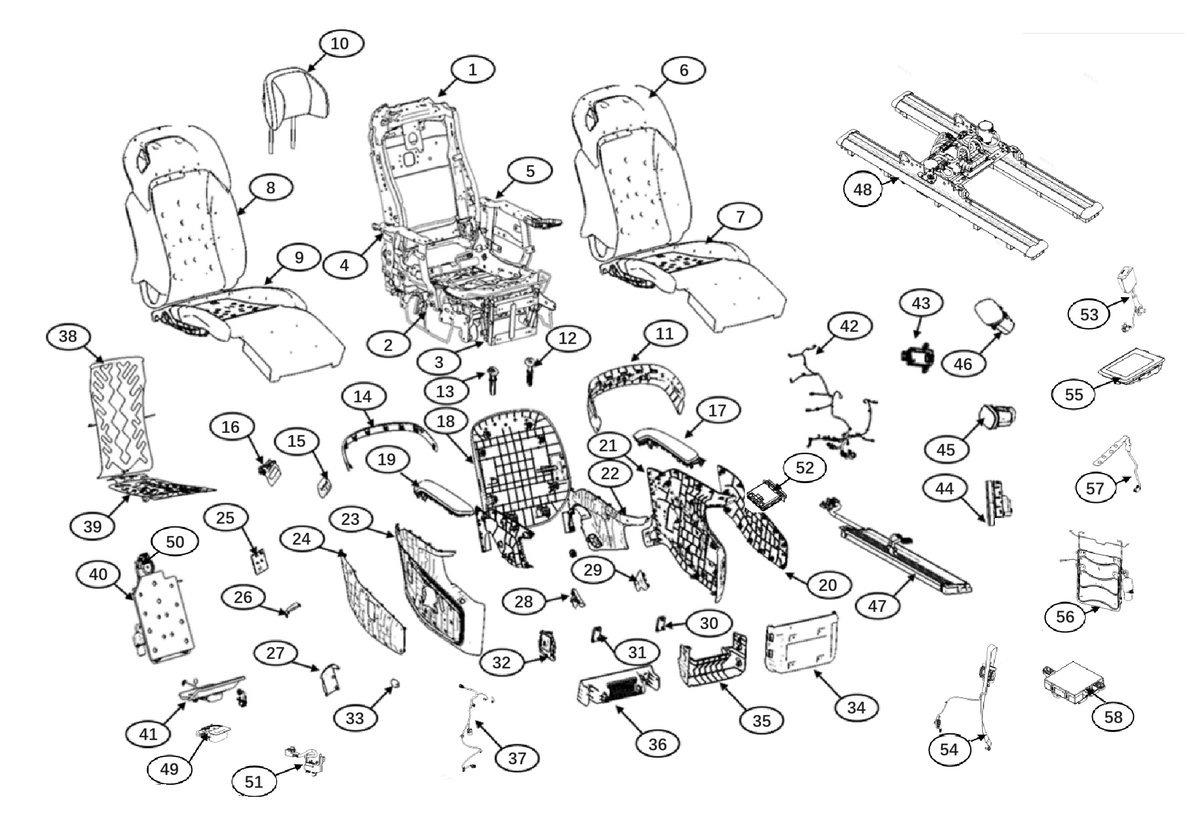

F1N1 - SECOND ROW RIGHT SINGLE SEAT ASSEMBLY
F1N1 - SECOND ROW RIGHT SINGLE SEAT ASSEMBLY
M6A15D65B17SR24 > Seat system > Rear single seat module > Second row right single seat assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Framework assembly of middle seat backrest, right, electric, ventilation | F1N1-DL5U1035 | 1 |
| 2 | Center Row Cushion Skeleton Assembly, Right Side, Motorized Long Slide, Ventilation | F1N1-DL5U1960 | 1 |
| 3 | Leg rest assembly | F1N1-DL5U7016 | 1 |
| 4 | Center armrest frame assembly,right seat, right side | F1N1-DL5U1014 | 1 |
| 5 | Framework assembly of big armrest of middle seat，right seat，left side | F1N1-DL5U1013 | 1 |
| 6 | Second row right side backrest foam assembly, double armrest, heating, ventilation, lumbar support, LV3 | F1N1-DL5U2011 | 1 |
| 7 | Second row right side seat cushion foam assembly, electric, legrest, SBR, heating, ventilation, LV3&LV4 | F1N1-DL5U2012 | 1 |
| 8 | Backrest assembly | F1N1-M6-7100240S-A1 | 1 |
| 8 | Middle seat backrest trim assembly, right side, fixed armrest, PVC | F1N1-DL5U4009T29 | 1 |
| 9 | Seat Cushion Cover Assembly of Middle Row , Right Side, Fixed Armrest, PVC, Leg Support | F1N1-DL5U4010T29 | 1 |
| 9 | Seat cushion assembly | F1N1-M6-7100240S-B1 | 1 |
| 10 | Middle seat headrest assembly, PVC | F1N1-DL5U0014T29 | 1 |
| 11 | LV3/4 backrest upper trim lining of middle row | F1N1-DL5U3022 | 1 |
| 12 | Headrest Guide Sleeve of Middle Row - Locking End | F1N1-DL5U3001S29 | 1 |
| 13 | Middle row headrest guide bushing - free end | F1N1-DL5U3002S29 | 1 |
| 14 | LV3/4 backrest upper trim lining of middle row | F1N1-DL5U3021 | 1 |
| 15 | right individual seat belt guide trim cover of middle row | F1N1-DL5U3031 | 1 |
| 16 | Center right seat belt guide base 1 | F1N1-DL5U3034 | 1 |
| 17 | Middle row right seat armrest assembly light color (inner armrest + inner guard plate + wiring harness + one-button reset switch + USB component + armrest frame + display screen) | F1N1-DL-LZ5U3002T29 | 1 |
| 18 | LV3/4 Right Seat Back Panel Assembly of Middle Row | F1N1-DL5U3019 | 1 |
| 19 | LV3/4 Outer Armrest Assembly of Right Seat of Middle Row | F1N1-DL5U3049 | 1 |
| 20 | Middle row LV3/4 right seat inner guard panel trim cover assembly | F1N1-DL5U3262S29 | 1 |
| 21 | Middle row LV3/4 right seat inner guard plate assembly | F1N1-DL5U3045 | 1 |
| 22 | Middle LV3/4 right passenger seat inner panel and alignment fastener assembly | F1N1-DL5U3046 | 1 |
| 23 | Middle row LV3/4 right seat outer casing assembly | F1N1-DL5U3043S29 | 1 |
| 24 | Middle row LV3/4 right seat outer guard panel trim cover assembly | F1N1-DL5U3258S29 | 1 |
| 25 | Middle row right independent seat belt guide base 4 | F1N1-DL5U3037 | 1 |
| 26 | Middle row right independent seat belt guide base 2 | F1N1-DL5U3035 | 1 |
| 27 | Center right independent seat belt guide base 3 | F1N1-DL5U3036S29 | 1 |
| 28 | Middle LV3/4 right passenger seat outer panel alignment fastener disassembly | F1N1-DL5U3247S29 | 1 |
| 29 | Middle seat LV3/4 right seat inner plate alignment fastener split piece | F1N1-DL5U3261S29 | 1 |
| 29 | Middle seat LV3/4 right seat inner plate alignment fastener split piece | F1N1-DL5U3261 | 1 |
| 31 | Middle row foot cover | F1N1-DL5U3014S29 | 2 |
| 32 | Middle row LV3/4 right seat outer panel buckle handle assembly | F1N1-DL5U3207S29 | 1 |
| 33 | Bumper block | F1N1-DL5U3052 | 1 |
| 34 | Inner panel of leg rest | F1N1-DL5U3267S29 | 1 |
| 35 | Leg Rest Outer Guard | F1N1-DL5U3266S29 | 1 |
| 36 | Middle seat leg cover assembly | F1N1-DL5U3011S29 | 1 |
| 37 | Armrests wiring harness assembly-middle right seat | F1N1-DL5U5093 | 1 |
| 38 | Backrest Heater Pad, Middle Row Left & Right Side L3 & L4 | F1N1-DL5U5012 | 1 |
| 39 | Seat cushion heating pad, middle row right L3 & L4 | F1N1-DL5U5011 | 1 |
| 40 | Backrest air sleeve, middle seat left&right side L3&L4 | F1N1-DL5U5021 | 1 |
| 41 | Seat cushion wind bag, right side of middle row, L3 & L4 | F1N1-DL5U8019 | 1 |
| 42 | Wiring Harness, Middle Row Right, L3 | F1N1-DL5U5108 | 1 |
| 43 | USB assembly, center row left & right L1&L2&L3&L4 | F1N1-DL5U5039 | 1 |
| 44 | Boss key switch, middle row L3 & L4 electric long slide rail, right | F1N1-DL5U5124 | 1 |
| 45 | Center Row Right Power Long Slide Unlock Switch Assembly, LV3LV4 | F1N1-DL5U5110 | 1 |
| 46 | One-Touch Reset Switch, Middle Row Right Side, L3&L4 | F1N1-DL5U5035 | 1 |
| 47 | Wiring Harness Box Assembly of Middle Row (Right), LV3LV4 | F1N1-DL5U5104Q69 | 1 |
| 47 | Wiring Harness Box Assembly of Middle Row (Right), LV3LV4 | F1N1-DL5U5104 | 1 |
| 48 | Center row motorized long slide assembly right, LV3LV4 | F1N1-DL5U0087Q69 | 1 |
| 49 | Middle row left chair cushion fan | F1N1-DL5U5017 | 1 |
| 50 | Middle row left chair back fan | F1N1-DL5U5019 | 1 |
| 51 | Side slip sensor | F1N1-DL4S5023 | 1 |
| 52 | Push cup holder assembly LV4 | F1N1-DL5U3401S29 | 1 |
| 52 | Push cup holder assembly LV4 | F1N1-DL5U3401 | 1 |
| 53 | Buckle，with warning | F1N1-DL5U8030 | 1 |
| 54 | Retractor, Right Side with Preload | F1N1-DL5U8031 | 1 |
| 55 | Display screen, left side | F1N1-DL5U8006 | 1 |
| 56 | Lumbar support massage middle row right L4 | F1N1-DL5U5023 | 1 |
| 57 | SBR, passenger seat L3 & L4, middle row left & right L2 & L3 & L4 | F1N1-DL5U5022 | 1 |
| 58 | Engine controller, right side, electronic, heating, ventilation | F1N1-DL5U5045 | 1 |
| Seat cushion wind bag, right side of middle row, L3 & L4 | F1N1-DL5U8019? | 1 |
