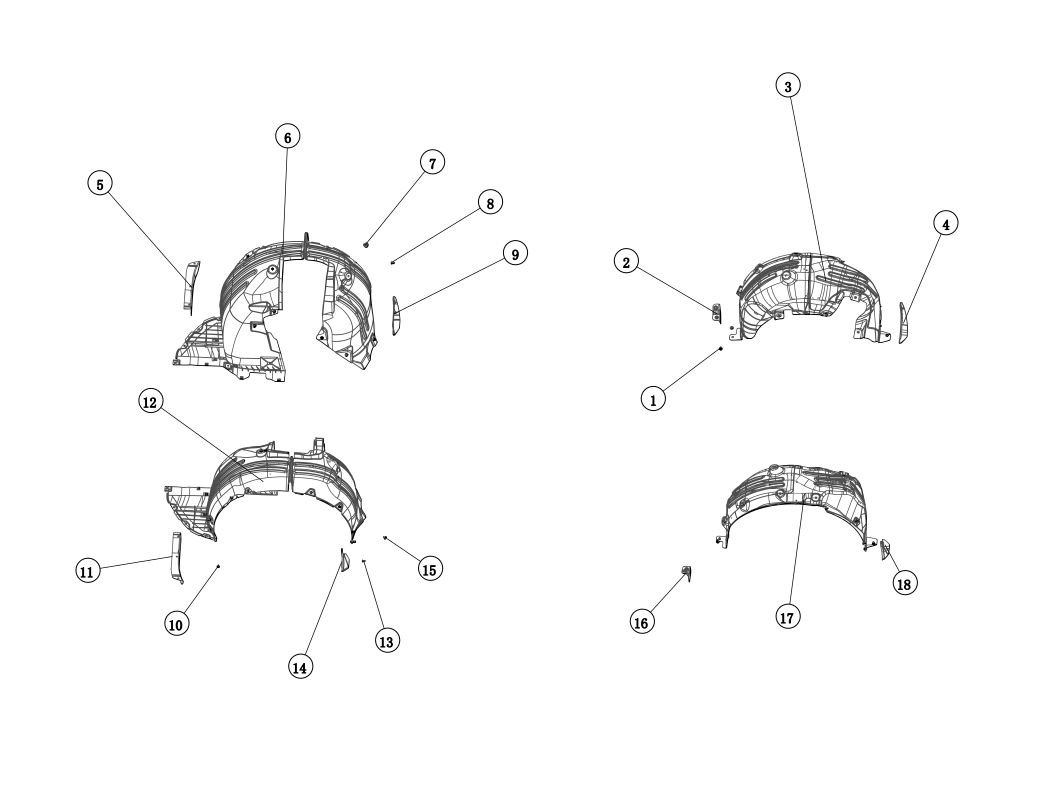

F1N1 - WHEEL COVER MUDGUARD MODULE
F1N1 - WHEEL COVER MUDGUARD MODULE
M6A15D65B17SR24 > Trim system > Wheel cover mudguard module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Right rear spoiler | F1N1-M6-5512223S | 1 |
| 2 | RR mudguard wheel arch assembly | F1N1-M6-5512340S | 1 |
| 4 | Cross recessed cup head tapping screw with large head | F1N1-LQ2734816F38A1 | 16 |
| 5 | RF mudguard wheel arch assembly | F1N1-M6-5512140S | 1 |
| 7 | Cross recessed pan head tapping screw and flat washer assembly | F1N1-Q2214819F38 | 4 |
| 8 | LF mudguard wheel arch assembly | F1N1-M6-5512130S | 1 |
| 9 | Plastic nut | F1N1-SX5G-5512710 | 24 |
| 10 | Anti-drop clip | F1N1-FX.572394003.1 | 1 |
| 10 | Anti-drop clip | F1N1-FX.572394003.1 | 18 |
| 11 | Screw seat | F1N1-BLK0338A | 4 |
| 13 | Hexagon bolt, spring washer, flat washer assembly | F1N1-LQ146B0616TF38 | 4 |
| 14 | Left rear spoiler | F1N1-M6-5512213S | 1 |
| 15 | LR mudguard wheel arch assembly | F1N1-M6-5512250S | 1 |
