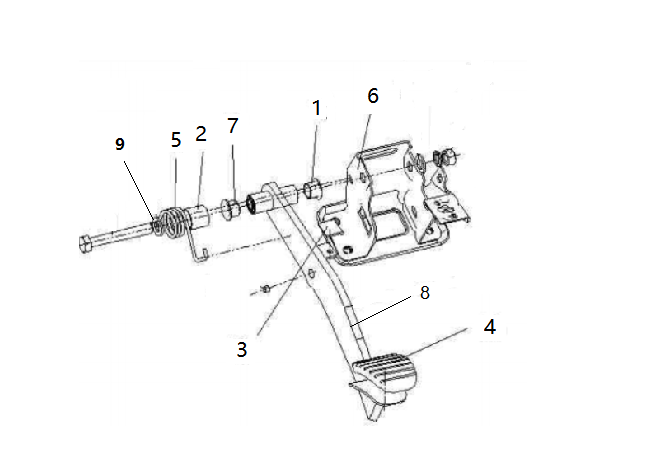

F1T1 - Brake pedal assembly
F1T1 - Brake pedal assembly
SX5KCTQ15T65D05GR24C > Braking System > Brake pedal module > Brake pedal assembly
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Self-lubricating bearing | F1T1-BS3-3504014 | 2 |
| 2 | Spring bushing | F1T1-BS3-3504016 | 1 |
| 3 | Cushion | F1T1-BS3-3504017 | 1 |
| 4 | pedal pad | F1T1-BS3-3504031 | 1 |
| 5 | Brake pedal return spring | F1T1-BS3-3504012 | 1 |
| 6 | Pedal mounting bracket component | F1T1-BM3-3504025 | 1 |
| 7 | Self-lubricating bearing | F1T1-BS3-3504019 | 1 |
| 8 | Pedal arm component | F1T1-BM3-3504035 | 1 |
| 9 | inner sleeve pipe | F1T1-BS3-3504013 | 1 |
