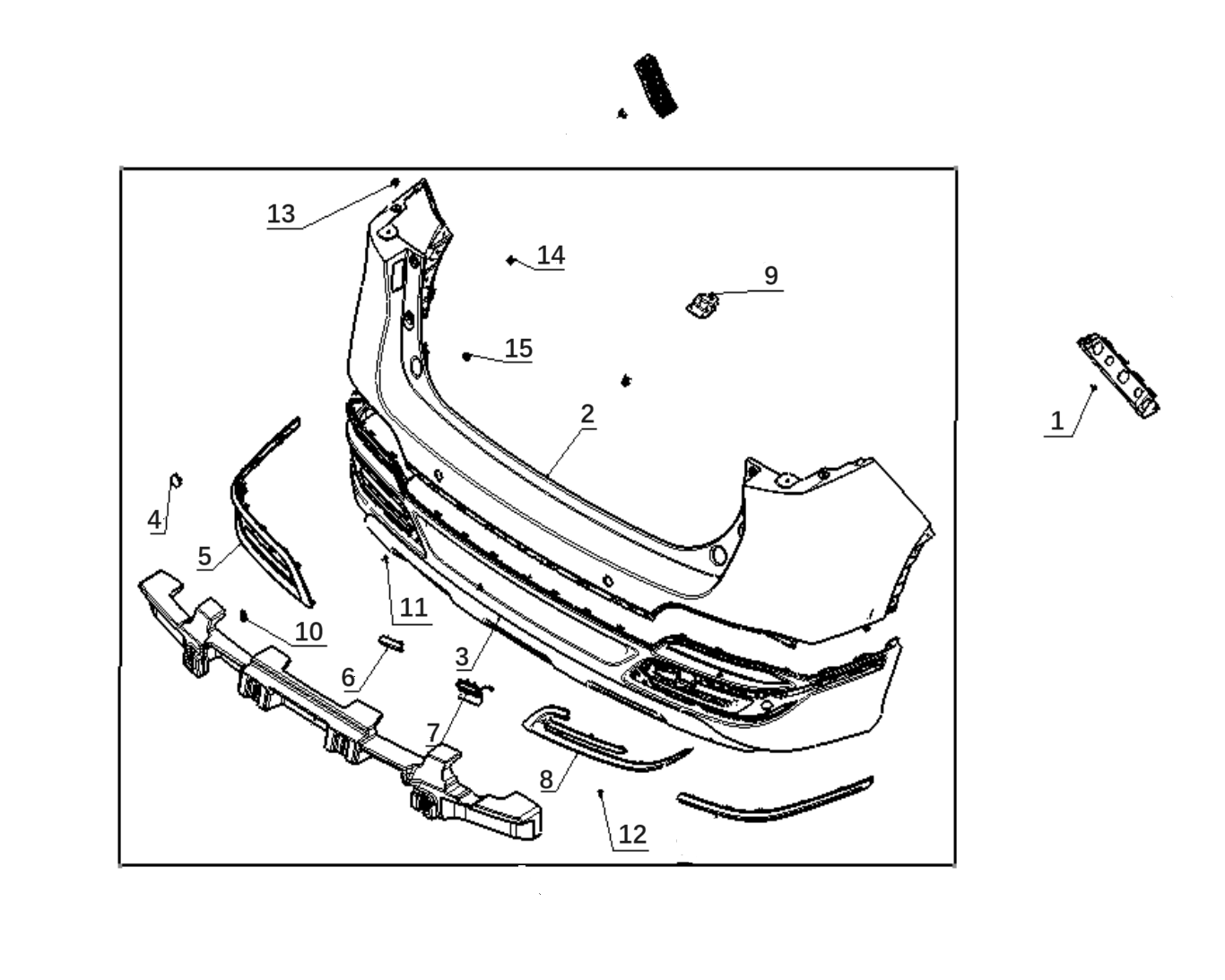

F1T1 - Rear bumper assembly

SX5KCTQ15T65D05GR24C > Trim system > Rear bumper module > Rear bumper assembly

Rep.	Designation	Reference	Qte/vehicule
1	Cross recessed cup head tapping screw with large head	F1T1-Q2734816F38	6
2	Rear bumper upper body	F1T1-SX5F-2804511	1
3	Lower body of rear bumper	F1T1-SX5F-2804521	1
4	Rear bumper right trim 2	F1T1-SX5F-2804515	1
5	rear bumper left trim	F1T1-SX5F-2804513	1
6	Rear bumper tow cover bright bar	F1T1-SX5F-2804519	1
7	Rear bumper tow hook cover body	F1T1-SX5F-2804512	1
8	Rear bumper right trim 1	F1T1-SX5F-2804514	1
9	Rear bumper sheet metal mounting bracket	F1T1-SX5F-2804525	2
10	Metal card	F1T1-C20-2804543	4
11	Cross recessed pan head tapping screws	F1T1-Q2713513F36	24
12	Cross recessed pan head tapping screws	F1T1-Q2714816F38	6
13	Countersunk head rivet	F1T1-Q4601010	4
14	Plastic nut	F1T1-BL333	2
15	Reed nut	F1T1-BL414	10
