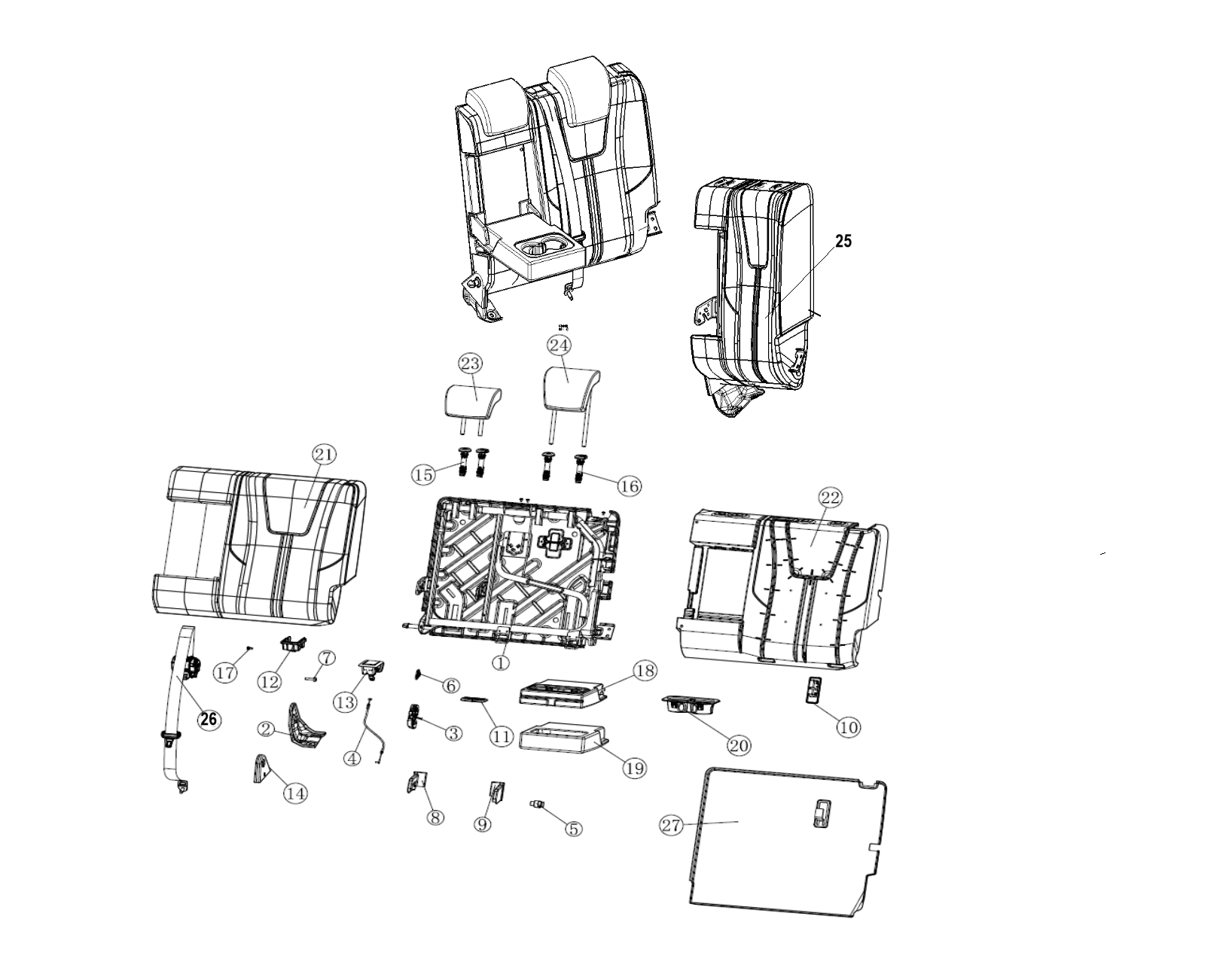

F1T1 - 6 points backrest assembly

SX5KCTQ15T65D05GR24C > Seat system > Rear seat module > 6 points backrest assembly

Rep.	Designation	Reference	Qte/vehicule
1	Five-seater, two-row, six-point backrest frame assembly	F1T1-DL3H1003	1
2	Five-seater two-row middle seat bracket	F1T1-DL3H0034	1
3	Five-seat two-row _ left back lock assembly	F1T1-DL3H7011AB03	1
4	Five seats two rows _ backrest unlock cable	F1T1-DL3H7013	1
5	6 points shaft sleeve	F1T1-DL688005AB01	1
6	Second row armrest limit mechanism	F1T1-DL3H3766AB01	1
7	Hexagon socket head bolts M8×1×L35	F1T1-DL3H6014AB01	2
8	Outside of second row armrest cover	F1T1-DL3H3366	1
9	Inside the second row of armrest covers	F1T1-DL3H3364	1
10	ISOFIX cover	F1T1-DL713074BKZ	1
11	Second-row seat belt guide cover	F1T1-DL3H3662	1
12	Second row backrest unlock mechanism base	F1T1-DL3H3764	1
13	Second row backrest unlocking mechanism assembly	F1T1-DL3H3762	1
14	Five-seater, two-row body sheet metal cover	F1T1-DL3H3262AB02	1
15	Guide sleeve free end of headrest	F1T1-DL3H3564	2
16	Locking end of headrest guide sleeve	F1T1-DL3H3562	2
17	Inner hexagon socket head step bolt M6*10 galvanized olive green passivation	F1T1-DL546010	1
18	Second row armrest assembly (black imitation leather)	F1T1-DL4K0019	1
19	The second row of armrest frame foam assembly	F1T1-DL3H2061AB01	1
20	The second row of armrest cup holder (two-color injection)	F1T1-DL3H3362AB01	1
21	60% backrest trim assembly of five-seat two-row model_red imitation leather	F1T1-DL4K4012	1
22	Five-seater, two-row, six-point backrest foam assembly	F1T1-DL4K2041	1
23	Second row Middle headrest assembly (Black imitation leather)	F1T1-DL4K2084	1
24	Second row side headrest assembly (Black imitation leather)	F1T1-DL4K2086	1
25	Backrest assembly	F1T1-SX5F-7000210B-Y1-A1	1
26	Second row six-point seat retractor assembly (without screws)	F1T1-DL3H8059	1
27	Five-seat, two-row, six-point back molded carpet	F1T1-DL3H4063	1
