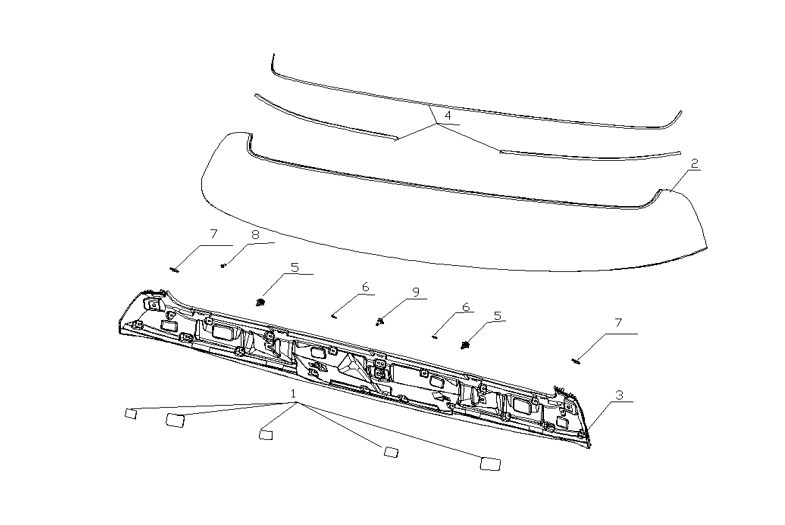

F1T1 - Tail assembly

SX5KCTQ15T65D05GR24C > Door and cover accessories > Rear wing module > Tail assembly

Rep.	Designation	Reference	Qte/vehicule
	Blockage	F1T1-84MA-07022	2
	Cushion	F1T1-SX3A-8404216	2
	Cushion	F1T1-SX3A-8404215	8
	Cushion block	F1T1-SX3A-8404217	2
	Rear wing body	F1T1-SX3A-8404211	1
	Rear wing inner panel body	F1T1-SX3A-8404212	1
	Reed clip	F1T1-A24-2803119	2
	Reed nut	F1T1-84MA-04022	2
	Sponge Strip 1	F1T1-SX3A-8404213	1
	Sponge Strip 2	F1T1-SX3A-8404214	1
5	Snap	F1T1-BL334	2
5	Strong buckle	F1T1-BL334B	2
8	Cross recessed pan head tapping screws	F1T1-Q2714213F38	19
9	Back door license plate decorative plate fixing bolt	F1T1-B-6302742A	1
9	square bolt	F1T1-B-6302742	1
	Hex head bolt and large washer assembly	F1T1-MS240603	2
	Hexagon flanged nut	F1T1-Q32006	1
	Hexagonal head scraping end bolt with spring washer and large flat washer	F1T1-Q2714295	2
	Strong buckle	F1T1-SX6A-5402934	7
