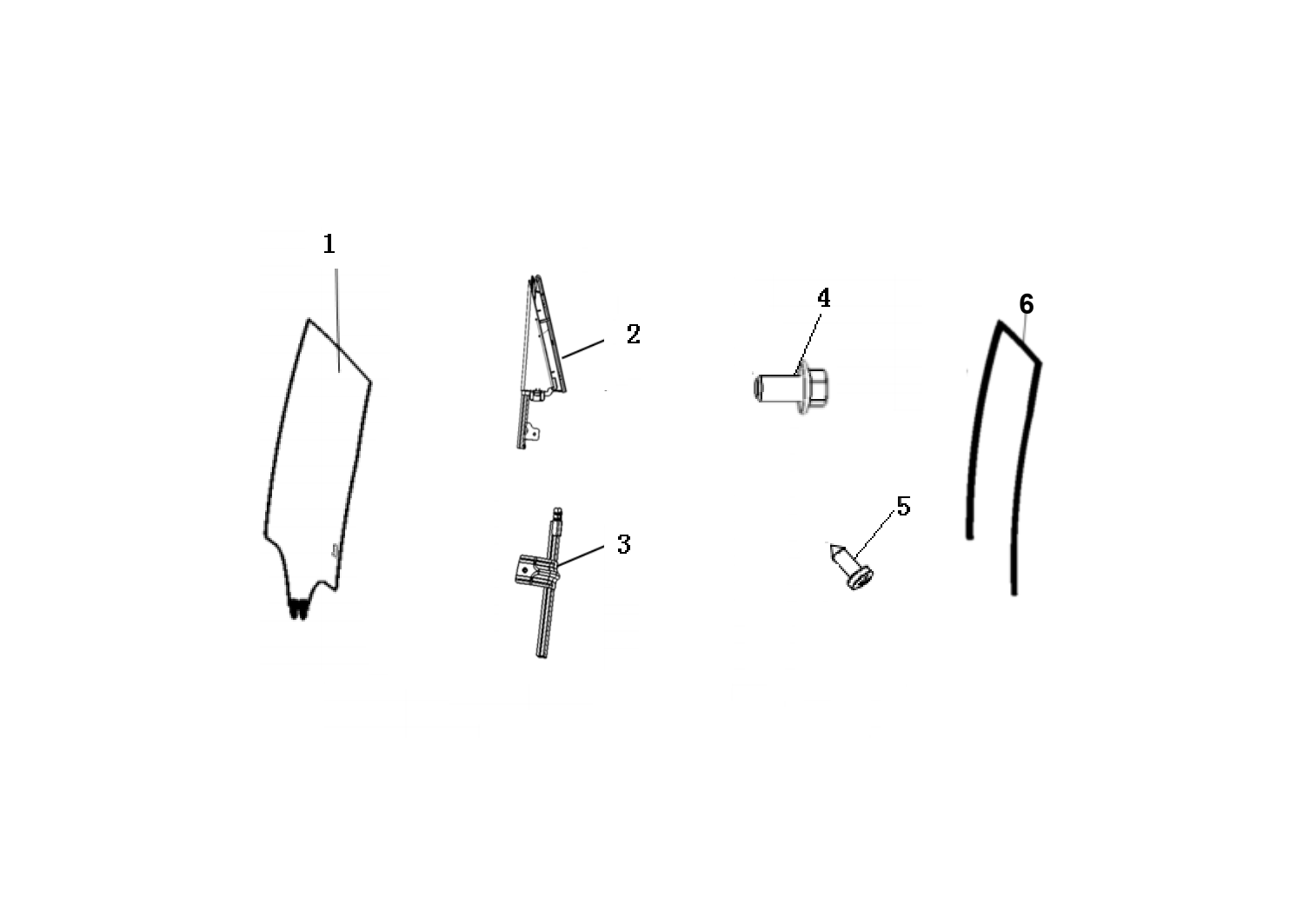

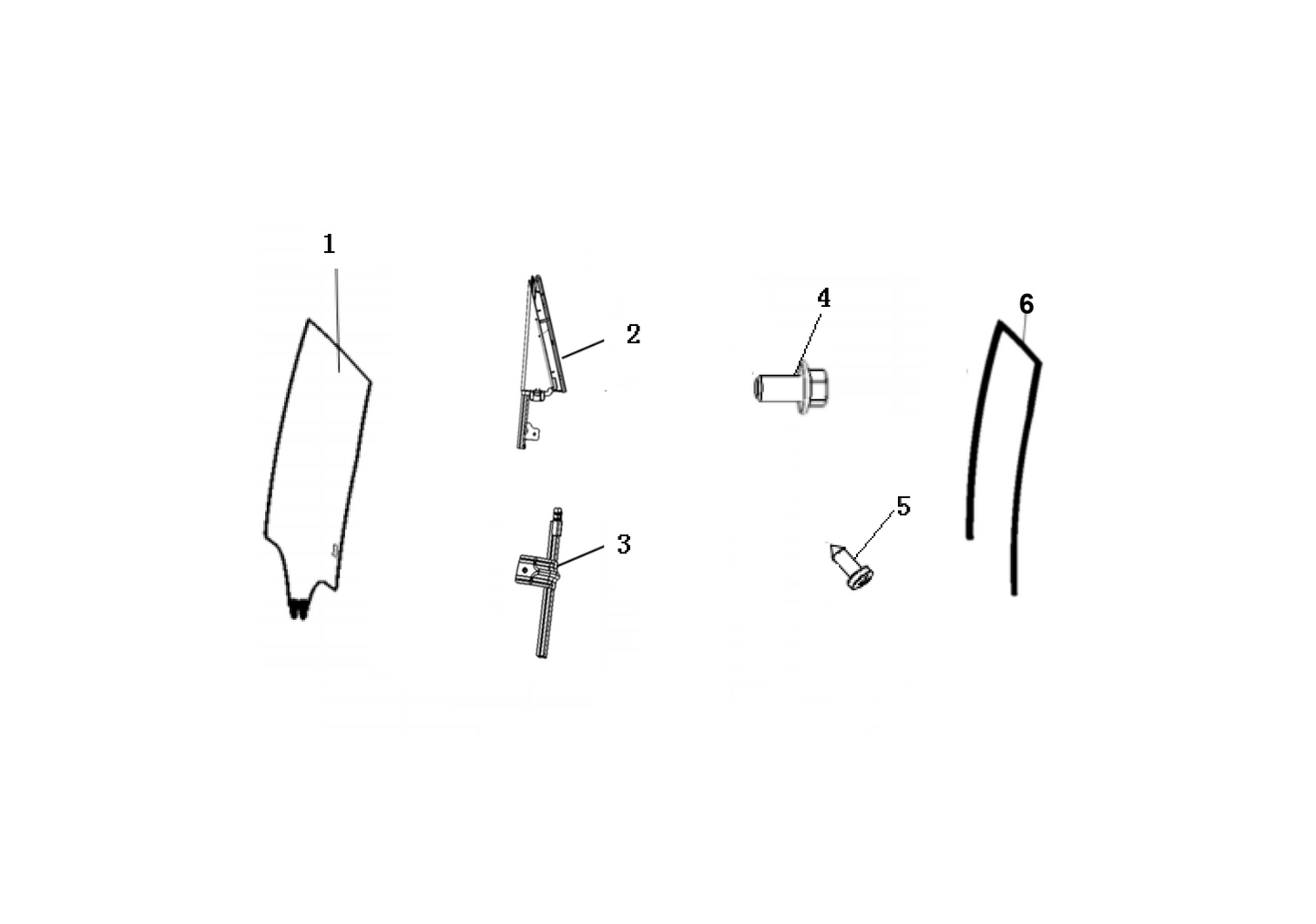

F1T1 - Rear door and window module
F1T1 - Rear door and window module
SX5KCTQ15T65D05GR24C > Door and cover accessories > Rear door and window module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left Rear Door Glass Assembly | F1T1-SX5-6203021B | 1 |
| 1 | Right rear door glass assembly | F1T1-SX5-6203020B | 1 |
| 2 | Left rear door triangle block assembly | F1T1-SX7-6203351 | 1 |
| 2 | Right rear door triangle block assembly | F1T1-SX7-6203350 | 1 |
| 3 | Rear lower guide rail assembly of left rear door glass | F1T1-SX5-6203151 | 1 |
| 3 | Rear lower guide rail assembly of right rear door glass | F1T1-SX5-6203150 | 1 |
| 4 | Hexagon bolt and flat washer assembly | F1T1-LQ140B0612F38 | 8 |
| 5 | Cross recessed large flat head tapping screws | F1T1-BS3-6203359 | 4 |
| 6 | Rear left door glass guide | F1T1-SX5-6207131C | 1 |
| 6 | Rear right door glass guide | F1T1-SX5-6207130C | 1 |
Regular price
CHF 0.00
Regular price
Sale price
CHF 0.00
Unit price
/
per
Couldn't load pickup availability
Manufacturer :
Forthing
Article Nr. :
SKU:F1T1-SX5-6203021B
