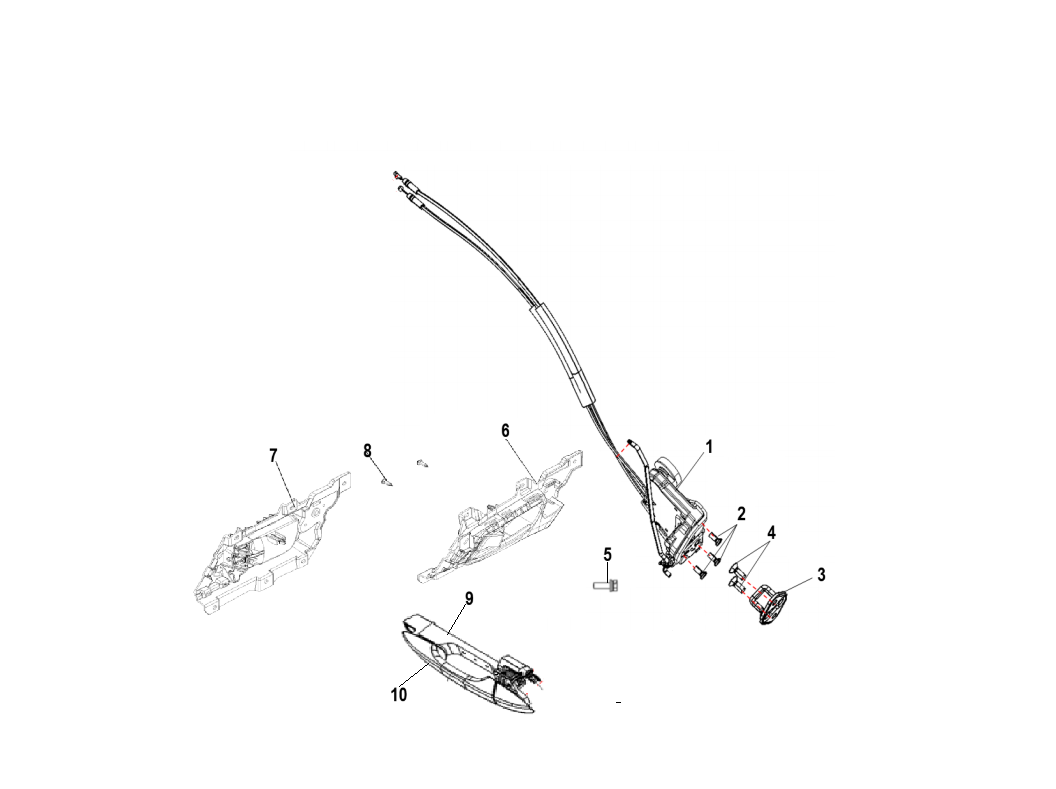

F1T1 - Rear door lock body handle module
F1T1 - Rear door lock body handle module
SX5KCTQ15T65D05GR24C > Door and cover accessories > Rear door lock body handle module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left rear side door lock and fastener assembly | F1T1-BM3-6205011B1 | 1 |
| 1 | Right rear door lock body and locking device assembly | F1T1-BM3-6205010B1 | 1 |
| 2 | Cross recessed large flat head bolt | F1T1-A-6105612A1 | 1 |
| 3 | Side door lock assembly | F1T1-BM3-6105310A1 | 1 |
| 3 | Side door lock assembly | F1T1-BM3-6105310A | 1 |
| 4 | Hexagon socket countersunk head screws | F1T1-Q2580820F36 | 1 |
| 5 | Hexagon bolt, spring washer, flat washer assembly | F1T1-Q1460616F38 | 1 |
| 6 | Door handle assembly, door lock, rear left | F1T1-SX5F-6205221B | 1 |
| 7 | Rear right door lock inner release handle assembly | F1T1-SX5F-6205220B | 1 |
| 8 | Cross recessed cup head tapping screw with large head | F1T1-Q2734813F38 | 1 |
| 9 | Left rear door handle base assembly | F1T1-SX5-6205225 | 1 |
| 9 | Right rear door handle base assembly | F1T1-SX5-6205224 | 1 |
| 10 | Left rear door handle assembly | F1T1-SX5-6205515 | 2 |
| 10 | Right rear door handle assembly | F1T1-SX5-6205514 | 2 |
