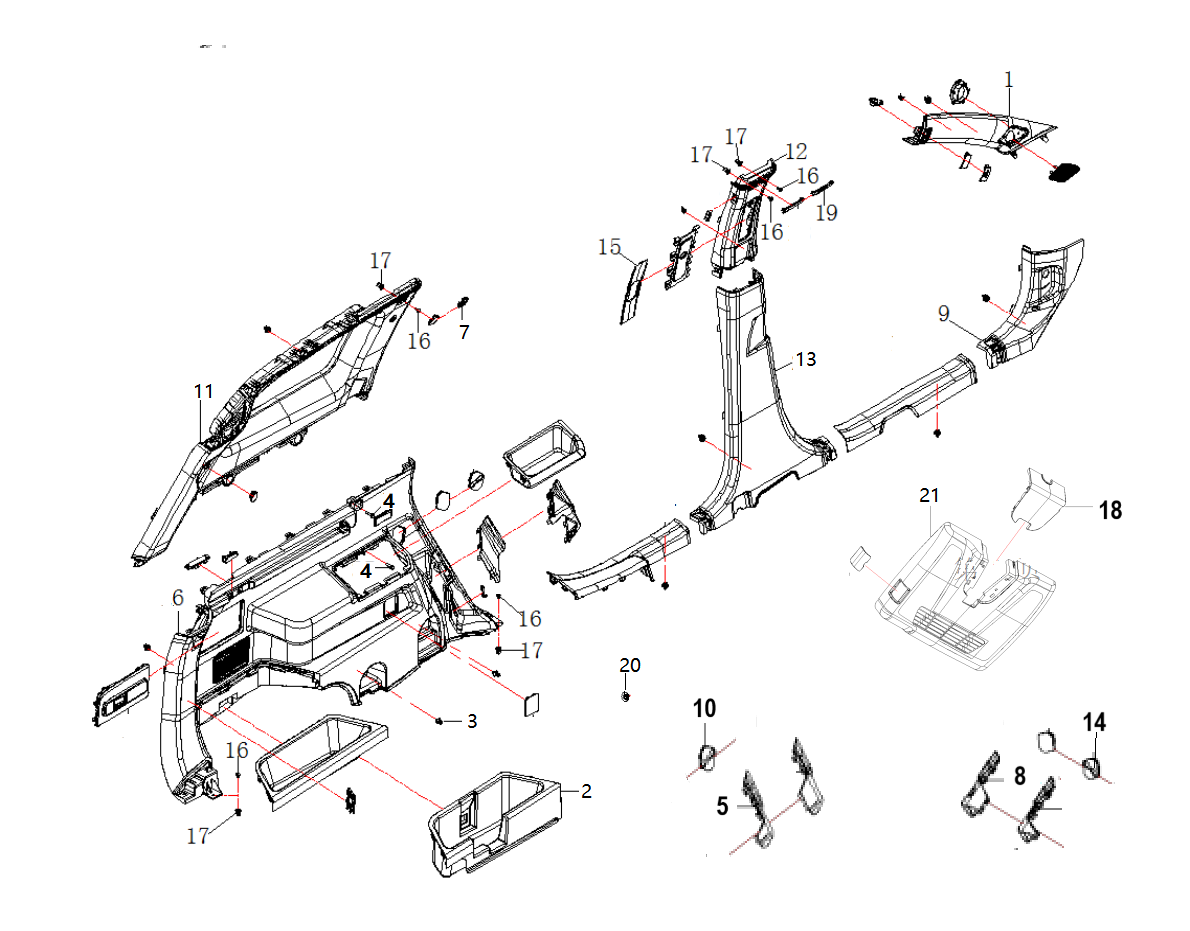

F1T1 - Side guard panel module
F1T1 - Side guard panel module
SX5KCTQ15T65D05GR24C > Trim system > Side guard panel module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Left A-pillar upper guard plate assembly | F1T1-SX5F-5402110A-Y1 | 1 |
| 1 | Right A-pillar upper guard plate assembly | F1T1-SX5F-5402120A-Y1 | 1 |
| 2 | left c pillar rear storage box | F1T1-SX5F-5402337B-Y1 | 1 |
| 2 | right c pillar rear storage box | F1T1-SX5F-5402338B-Y1 | 1 |
| 3 | Snap fastener | F1T1-BL611 | 4 |
| 4 | Cross recessed pan head screws | F1T1-Q2140610F38 | 2 |
| 5 | left C pillar seat cover | F1T1-SX5F-5402347-Y1 | 1 |
| 6 | Left C pillar lower guard board assembly | F1T1-SX5F-5402330A-Y1 | 1 |
| 6 | Right C-pillar lower guard plate assembly | F1T1-SX5F-5402340A-Y1 | 1 |
| 7 | Left C pillar upper guard cover (with inscription） | F1T1-SX5-5402313B | 1 |
| 7 | Plug cover of the upper panel of right C pillar (with lettering) | F1T1-SX5-5402314B | 1 |
| 8 | right C Pillar seat cover | F1T1-SX5F-5402348-Y1 | 1 |
| 9 | Lower panel assembly of left A pillar | F1T1-SX5F-5402150B-Y1 | 1 |
| 9 | Right A-pillar lower guard plate assembly | F1T1-SX5F-5402160-Y1 | 1 |
| 10 | Left C-pillar seat lock hook cover plate | F1T1-SX5F-5402341A-Y1 | 1 |
| 11 | Left C pillar upper guard assy | F1T1-SX5F-5402310-Y1 | 1 |
| 11 | Right C pillar upper guard assy | F1T1-SX5F-5402320-Y1 | 1 |
| 12 | Upper panel assembly of right B pillar | F1T1-SX5-5402220B | 1 |
| 12 | upper panel assembly of left B pillar | F1T1-SX5-5402210B | 1 |
| 13 | Left B-pillar lower guard plate assembly | F1T1-SX5F-5402230-Y1 | 1 |
| 13 | Right B-pillar lower guard plate assembly | F1T1-SX5F-5402240-Y1 | 1 |
| 14 | Right C-pillar seat lock hook cover | F1T1-SX5F-5402342A-Y1 | 1 |
| 15 | Height adjuster transition sliding plate | F1T1-SX5-5402216 | 2 |
| 16 | Cross recessed cup head tapping screw with large head | F1T1-Q2734816F38 | 8 |
| 17 | Square plastic screw holder | F1T1-BL338 | 8 |
| 18 | Cover plate cover | F1T1-SX7-5402192-Y2 | 1 |
| 19 | Left B-pillar upper guard cover (with lettering) | F1T1-SX5-5402217B | 1 |
| 19 | Right B-pillar upper protective plate cover (with lettering) | F1T1-SX5-5402218B | 1 |
| 20 | Plastic nut | F1T1-B-5512312 | 1 |
| 21 | Cover of interior mirror | F1T1-SX7-5402191-Y2 | 1 |
