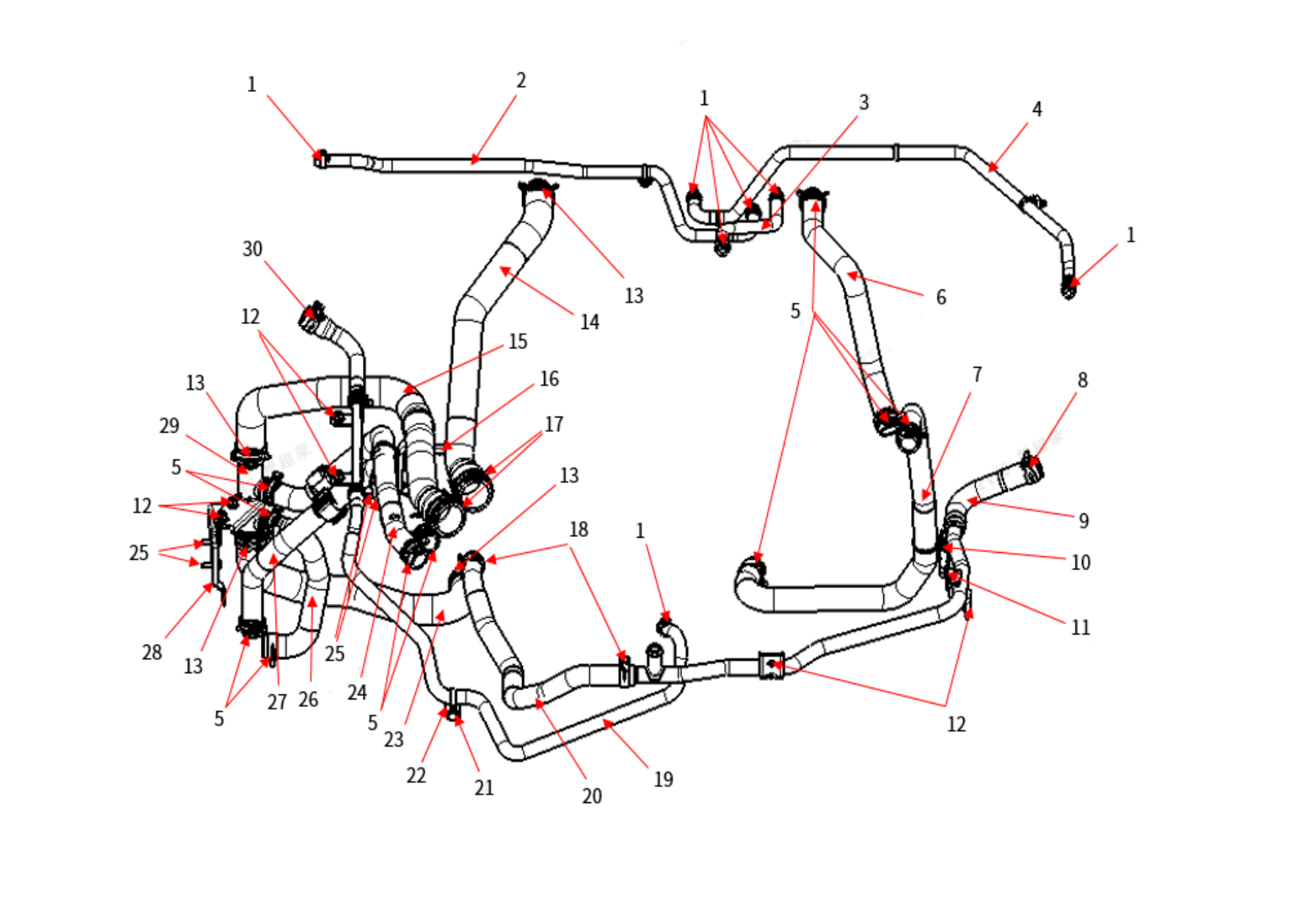

F1T1 - Radiator hose and connecting pipe module

F1T1 - Radiator hose and connecting pipe module

SX5KCTQ15T65D05GR24C > Engine system > Radiator hose and connecting pipe module

Rep. Designation Reference Qte/vehicule
1 Single-ear stepless hoop F1T1-A-1104028A2 7
2 Radiator degassing pipe F1T1-SX7H-1303140 1
3 Supercharger outlet pipe F1T1-SX7H-1303150 1
4 Radiator degassing pipe F1T1-SX7H-1303320 1
5 Steel strip elastic hose clip hoop F1T1-Q673C27F62 10
6 Radiator water inlet hose (intercooled) F1T1-SX7H-1303070 1
7 Radiator outlet pipe (intercooler) F1T1-SX7H-1303060 1
8 Steel strip elastic hose clip hoop F1T1-Q673C26F62 1
9 Engine water supply pipe assembly F1T1-SX7-1303146 1
10 intercooled compensation water pipe mounting bracket F1T1-SX7H-1303470 1
11 Hexagon flange bolt F1T1-Q1840820F38 1
12 Hexagon nut and tapered elastic washer assembly F1T1-Q32206F38 6
13 Steel strip elastic hose clip hoop F1T1-Q673C36F62 4
14 Radiator water inlet pipe F1T1-SX7H-1303020 1
15 Engine inlet pipe F1T1-SX7H-1303030S2 1
16 Transmission water pipe assembly mounting bracket F1T1-SX7H-1303460 1
17 Steel strip elastic hose clip hoop F1T1-Q673C44F62 2
18 Steel strip elastic hose clip hoop F1T1-Q673C24F62 2
19 intercooled compensation water pipe F1T1-SX7H-1303130S4 1
20 Air conditioning outlet pipe (engine end) F1T1-SX7H-1303090 1
21 Hexagon flange bolt F1T1-Q1860612F38 1
22 Heating air pipe mounting bracket F1T1-SX7H-8101480 1
23 Radiator water outlet pipe F1T1-SX7H-1303010 1
24 Transmission outlet pipe F1T1-SX7H-1303212S3 1
25 Hexagon flange bolts-enlarged series F1T1-Q1860616F38 4
26 Cooling hose (four-way pipe - water pump) F1T1-SX7H-1303310S2 1
27 Pump outlet pipe F1T1-SX7H-1303211S4 1
28 Four way pipe mounting bracket F1T1-SX7H-1303450 1
29 4-way pipe F1T1-SX7H-1303440S1 1
30 Steel strip elastic hose clip hoop F1T1-Q673C25F62 1
CHF 0.00
CHF 0.00
Sale Sold out
Number

Manufacturer :

Forthing

Article Nr. :

F1T1-A-1104028A2
