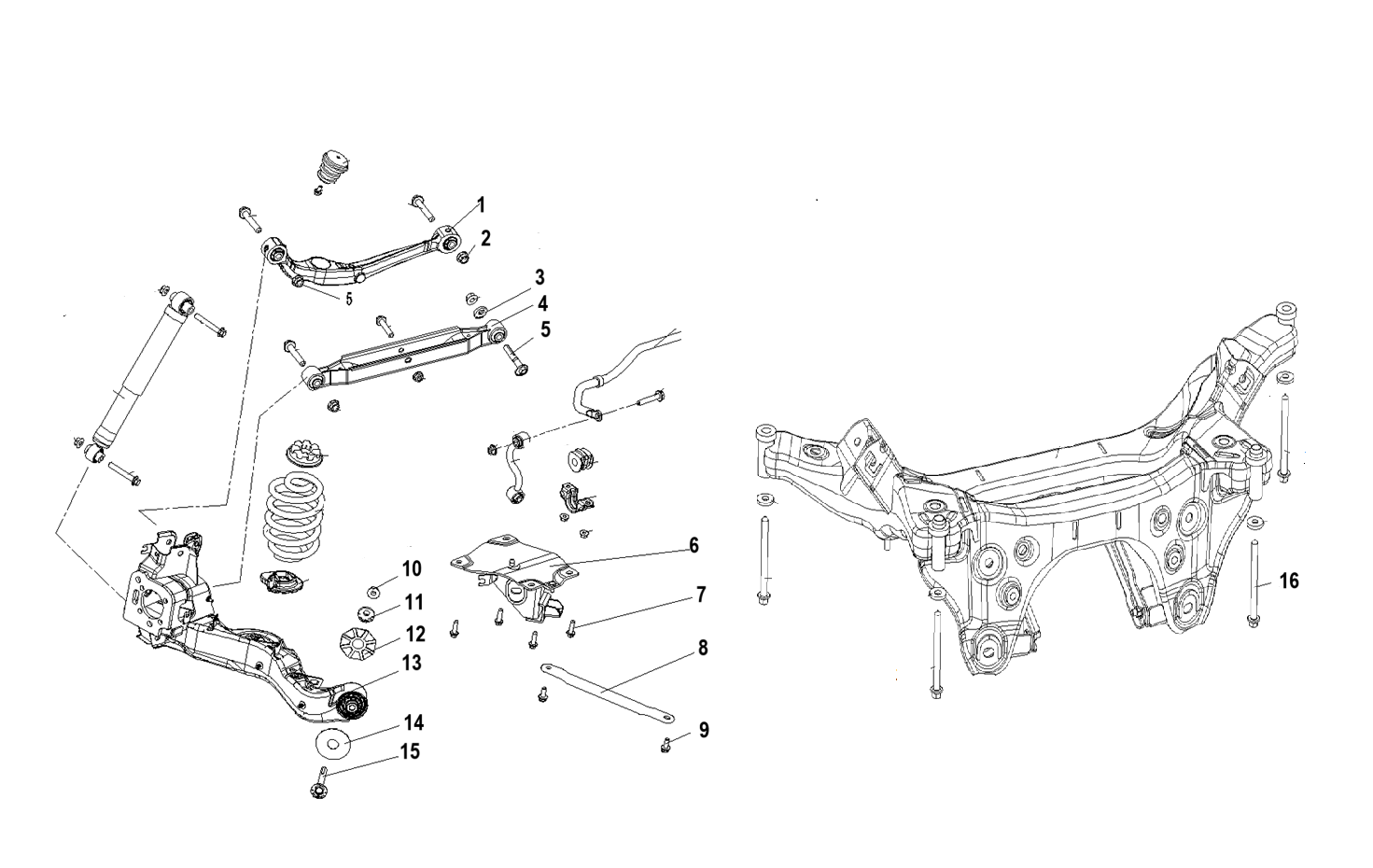

F1T1 - Rear suspension control arm module

SX5KCTQ15T65D05GR24C > Suspension and axle > Rear suspension control arm module

Rep.	Designation	Reference	Qte/vehicule
1	Left rear suspension swing arm assembly	F1T1-B20-2914500D	1
1	Right rear suspension swing arm assembly	F1T1-B20-2914600D	1
2	Spiritaud hexagon flange locker nut	F1T1-DTF6177.2M14*1.5-10F39A	6
3	Adjusting gasket of rear suspension lower swing arm	F1T1-B20-2914033	2
4	Left rear suspension lower swing arm assembly	F1T1-B20-2914300B1	1
4	Right rear suspension lower swing arm assembly	F1T1-B20-2914400B1	1
5	Adjusting bolt of rear suspension lower swing arm	F1T1-B20-2914034B	2
6	Welding assembly for left rear axle trailing arm support	F1T1-SX5-2914510	1
6	Welding assembly of right rear axle longitudinal arm bracket	F1T1-SX5-2914520	1
7	Body bolt for rear axle connection	F1T1-BM3-2400103	8
8	Mounting support brace of longitudinal arm	F1T1-B20-2914530	2
9	Hexagon flange bolt	F1T1-Q1841025TF38	4
10	Hexagon flanged nut	F1T1-Q32314T13F36	4
11	Adjusting gasket of rear longitudinal arm	F1T1-B20-2914011	2
12	Rear trailing arm mounting pad	F1T1-B20-2914101	2
13	Left rear suspension trailing arm assembly	F1T1-SX5-2914100	1
13	RR suspension trailing arm assembly	F1T1-SX5-2914200	1
14	Rear trailing arm mounting pad	F1T1-B20-2914102	2
15	Rear trailing arm adjusting bolt	F1T1-B20-2914012B	2
16	Rear suspension swing arm mounting bolt	F1T1-B20-2914301B	6
