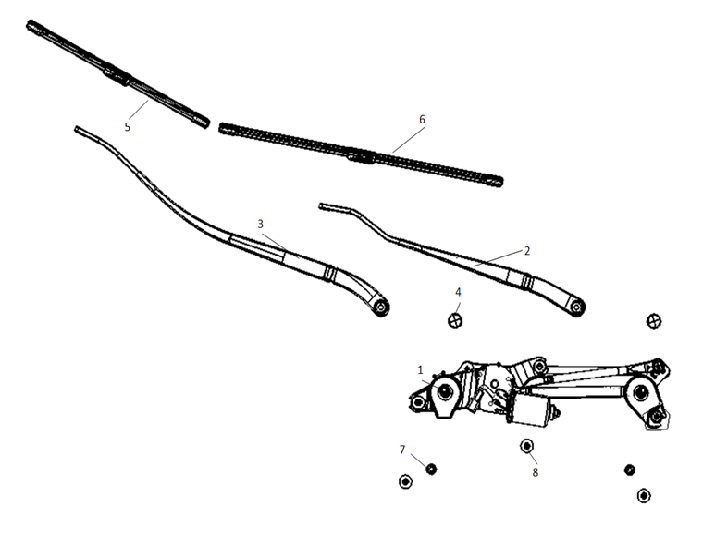

F1T1 - Windshield wiper module
F1T1 - Windshield wiper module
SX5KCTQ15T65D05GR24C > Body attachment system > Windshield wiper module
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Link mechanism assembly of front wiper | F1T1-SX5-5205010 | 1 |
| 2 | Main arm assembly of front wiper | F1T1-SX5-5205030B | 1 |
| 3 | Auxiliary arm assembly of front wiper | F1T1-SX5-5205040 | 1 |
| 4 | Decorative cover | F1T1-SX5-5205032 | 2 |
| 5 | Auxiliary blade assembly of front wiper | F1T1-SX7-5205060 | 1 |
| 6 | Main blade assembly of front wiper | F1T1-SX7-5205050 | 1 |
| 7 | Wiper arm fastening nut | F1T1-C20-5205037 | 2 |
| 8 | Hex head bolt, spring washer and flat washer assembly | F1T1-LQ146B0630F38A1 | 3 |
