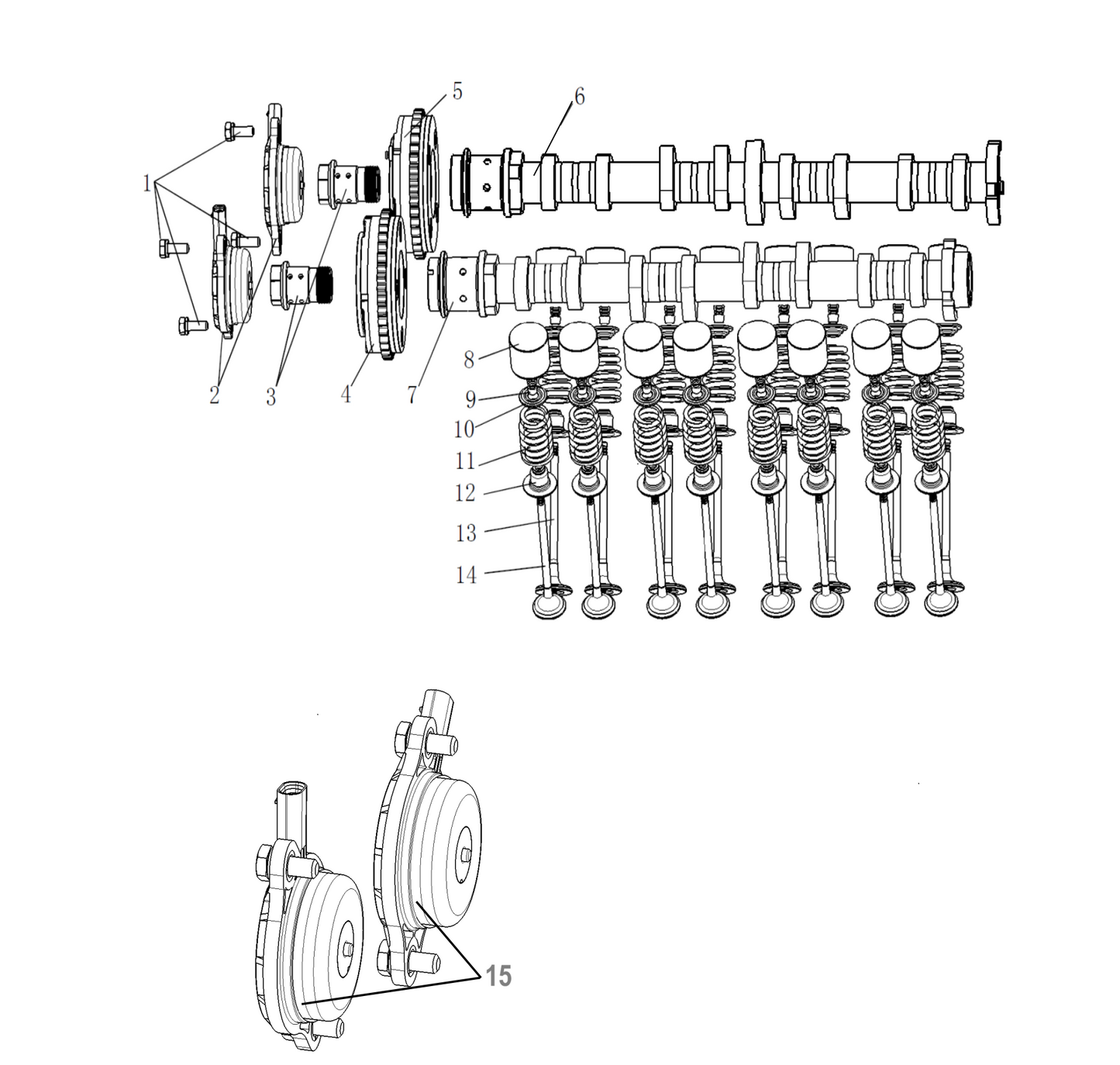

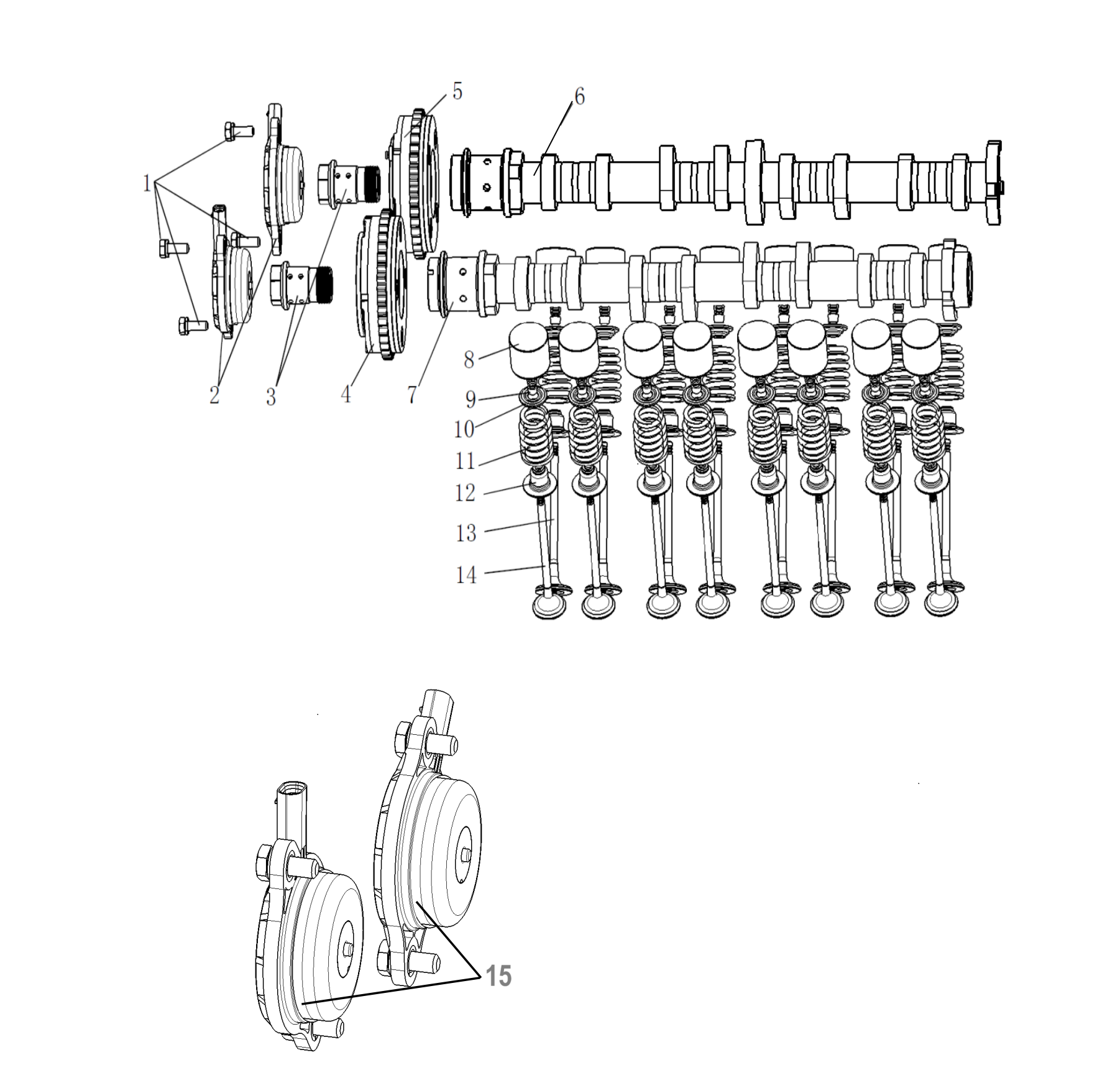

F1T1 - Gas distribution system
F1T1 - Gas distribution system
SX5KCTQ15T65D05GR24C > engine > Engine assembly module > Engine assembly > Gas distribution system
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Hexagon bolt and spring washer assembling parts | F1T1-Q1420616F38 | 4 |
| 2 | Central electromagnet | F1T1-C0101-1007181T | 2 |
| 2 | Central electromagnet | F1T1-C0101-1007181 | 2 |
| 3 | Center engine oil control valve | F1T1-C0101-1007178 | 2 |
| 3 | Center engine oil control valve | F1T1-C0101-1007178T | 2 |
| 4 | Variable phase exhaust camshaft gear | F1T1-C0101-1007173 | 1 |
| 4 | Variable phase exhaust camshaft gear | F1T1-C0101-1007173T | 1 |
| 5 | Variable phase intake camshaft gear | F1T1-C0101-1007172 | 1 |
| 5 | Variable phase intake camshaft gear | F1T1-C0101-1007172T | 1 |
| 6 | Intake camshaft assembly | F1T1-C0102-1006110 | 1 |
| 7 | Exhaust camshaft assembly | F1T1-C0101-1006210 | 1 |
| 8 | Mechanical tappet | F1T1-C0101-1007071 | 16 |
| 9 | Valve lock clip | F1T1-C0101-1007078 | 32 |
| 10 | valve spring seat | F1T1-C0101-1007076 | 16 |
| 11 | Valve spring | F1T1-C0101-1007075 | 16 |
| 12 | Air valve oil seal | F1T1-C0101-1007079 | 16 |
| 13 | Intake valve | F1T1-C0101-1007073 | 8 |
| 14 | Exhaust valve | F1T1-C0101-1007074 | 8 |
| 15 | Center electromagnet sealing ring | F1T1-L15.08.003 | 2 |
| 15 | L21 Sealing Ring | F1T1-DCT18.00.00.01 | 2 |
