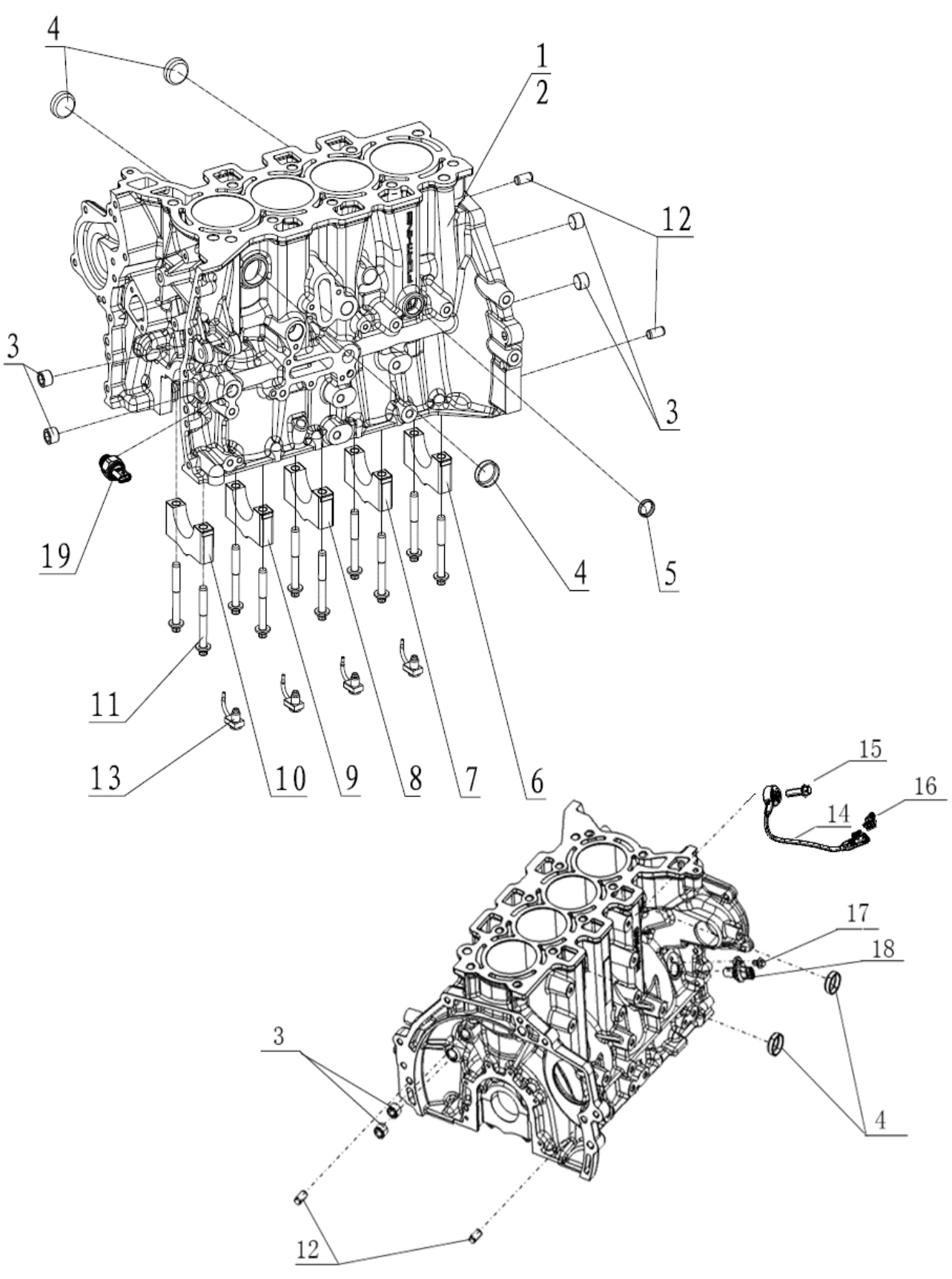

F1T1 - Cylinder block system, sensor
F1T1 - Cylinder block system, sensor
SX5KCTQ15T65D05GR24C > engine > Engine assembly module > Engine assembly > Cylinder block system, sensor
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | Cylinder block assembly | F1T1-C0102-1002011A | 1 |
| 2 | Finished cylinder block | F1T1-C0102-1002171A | 1 |
| 3 | Hexagon socket taper plug | F1T1-Q61903F36 | 4 |
| 4 | Bowl-shaped plug piece | F1T1-Q72230F36 | 3 |
| 5 | Bowl-shaped plug piece | F1T1-Q72220F36 | 1 |
| 6 | Finished main bearing cap -E | F1T1-C0101-1002251 | 1 |
| 7 | Finished main bearing cap -D | F1T1-C0101-1002241 | 1 |
| 8 | Finished main bearing cap -C | F1T1-C0101-1002231 | 1 |
| 9 | Finished main bearing cap -B | F1T1-C0101-1002221 | 1 |
| 10 | Finished main bearing cap -A | F1T1-C0101-1002211 | 1 |
| 11 | Main bearing cap bolt | F1T1-C0101-1002273 | 10 |
| 12 | Cylindrical pin | F1T1-Q5211020 | 2 |
| 13 | Piston cooling nozzle | F1T1-C0101-1002071 | 4 |
| 14 | Knock sensor | F1T1-C0101-1016171 | 1 |
| 15 | Hexagon flange bolt | F1T1-Q1840830F36 | 1 |
| 16 | Fixing clamp of engine detonation sensor | F1T1-C0102-1016172 | 1 |
| 17 | Hexagon flange bolt | F1T1-Q1840612F36 | 1 |
| 18 | Speed sensor | F1T1-C0101-1016671 | 1 |
| 19 | Oil pressure sensor | F1T1-C0101-1014771A | 1 |
