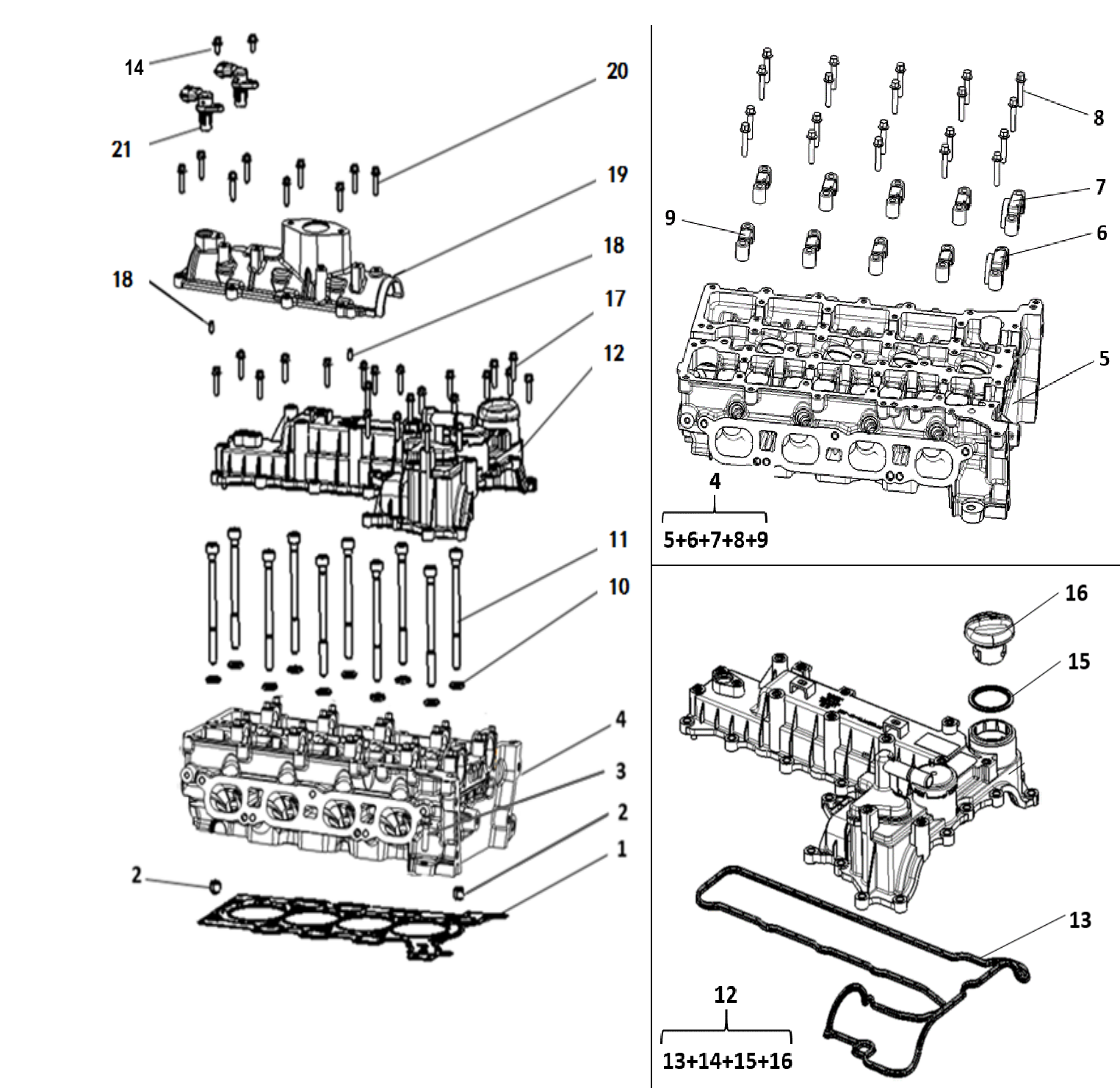

F1T1 - cylinder head system
F1T1 - cylinder head system
SX5KCTQ15T65D05GR24C > engine > Engine assembly module > Engine assembly > cylinder head system
| Rep. | Designation | Reference | Qte/vehicule |
|---|---|---|---|
| 1 | cylinder gasket | F1T1-C0101-1003076 | 1 |
| 2 | Cylinder head positioning pin | F1T1-C0101-1003091 | 2 |
| 3 | Hexagon flange bolt | F1T1-Q1840830F38 | 1 |
| 4 | Cylinder head with accessory assembly | F1T1-C0102-1003010 | 1 |
| 5 | Finished cylinder cover | F1T1-C0102-1003171 | 1 |
| 6 | Camshaft cover-A | F1T1-C0101-1003271 | 1 |
| 7 | Exhaust camshaft cover -A | F1T1-C0101-1003281 | 1 |
| 8 | Hexagon flange bolt | F1T1-Q1840630F39 | 20 |
| 9 | Camshaft cover-B | F1T1-C0101-1003274 | 8 |
| 10 | "Cylinder head bolt gasket" | F1T1-C0101-1003077 | 10 |
| 11 | Cylinder head bolt | F1T1-C0101-1003075 | 10 |
| 12 | Oil-gas separator assembly | F1T1-C0201-1003360A | 1 |
| 13 | Sealing ring | F1T1-C0201-1003360-04 | 1 |
| 14 | Hexagon flange bolt | F1T1-Q1840612F36 | 2 |
| 15 | Oil filler plug sealing ring | F1T1-1001999-01-16-02 | 1 |
| 16 | Oil filler plug housing | F1T1-1001999-01-16-01 | 1 |
| 17 | Hexagon flange bolt | F1T1-Q1840625F36 | 23 |
| 18 | Cylindrical pin | F1T1-Q5210612 | 2 |
| 19 | Cylinder head cover assembly | F1T1-C0102-1003310A | 1 |
| 20 | Hexagon flange bolt | F1T1-Q1840625F36 | 9 |
| 21 | Phase sensor | F1T1-X03004-1016471 | 2 |
